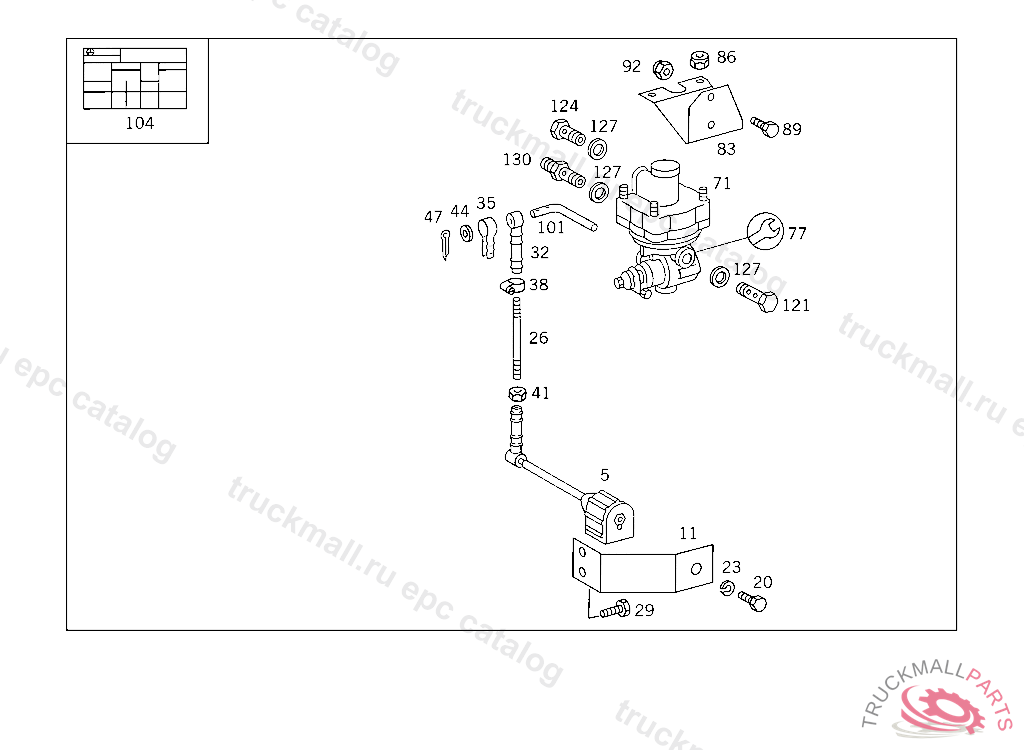

Поз.
Артикул
Описание
20
SCREW STRUT TO CONSOLE
23
LOCK WASHER FITTING TO BRACKET
26
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
32
CONNECTOR PULL ROD TO LEVER
35
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
38
CLAMP , Replaced By: N000000000665
44
WASHER , Replaced By: N000125008443
47
COTTER PIN PULL ROD
71
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
71
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH
71
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
77
REPAIR KIT VALVE BOSCH
77
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
77
REPAIR KIT , Replaced By: A0004300207
77
REPAIR KIT COVERING BOSCH
77
REPAIR KIT BRAKE POWER REGULATOR BOSCH
86
NUT BRACKET TO BRACKET
101
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
104
GUIDE SIGN LOAD-DEPENDING BRAKE
121
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
124
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
127
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
130
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
ADHESIVE FOIL GUIDE SIGN
