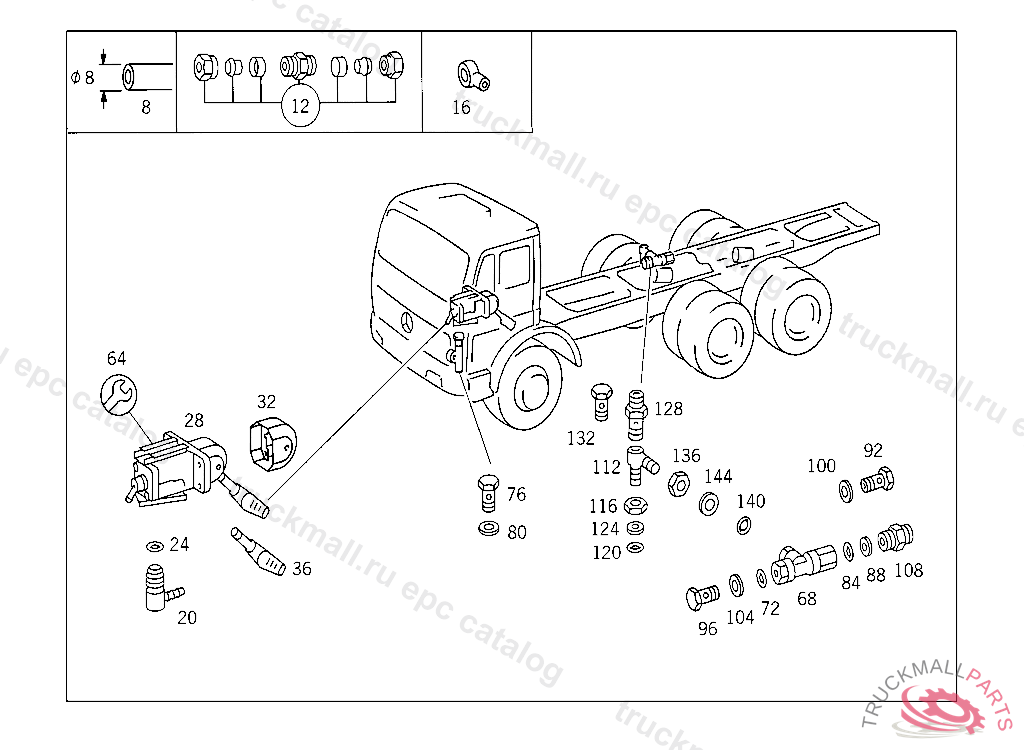

Поз.
Артикул
Описание
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
12
FITTING (PARTS KIT),LINE RUPTURE
16
BANJO UNION HEATING CONNECTION,K 169122
16
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
20
COUPLING FROM CHECK VALVE TO PARKING BRAKE VALVE
24
SEAL RING
28
VALVE (HAND BRAKE VALVE) WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
28
VALVE (HAND BRAKE VALVE) KNORR, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
28
VALVE (HAND BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
32
PROTECTIVE CAPKNORR
32
PROTECTIVE CAPTO BOSCH
36
HANDLETO BOSCH
36
HANDLETO WABCO
36
HANDLEKNORR
64
REPAIR KITTO 003 430 00 81/01 81,KNORR
64
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
64
REPAIR KITTO 001 430 35 81/44 81,BOSCH
64
REPAIR KIT , Replaced By: A0034303381
64
REPAIR KITTO BOSCH
68
VALVE (LOCKING VALVE) WABCO
68
VALVE (LOCKING VALVE) VOSS
72
SEAL RINGTO 003 429 46 44,WABCO
76
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
84
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
88
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
92
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
96
HOLLOW SCREW , Replaced By: N915036010108
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SEAL RING FUEL LINE TO FEED PUMP
108
FITTING RELAY VALVE,CONNECTION: "40"
112
FITTING RELAY VALVE,CONNECTION "20",LEFT
116
NUT COMBINATION CYLINDER,CONNECTION: "12"
120
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
124
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
132
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
136
NUT COMBINATION CYLINDER,CONNECTION: "12"
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
144
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ACTUATING PARTTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
999
COVERTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
999
ACTUATING PARTTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
999
PINTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
999
BUSHINGTO 001 430 37 81/46 81,BOSCH, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
