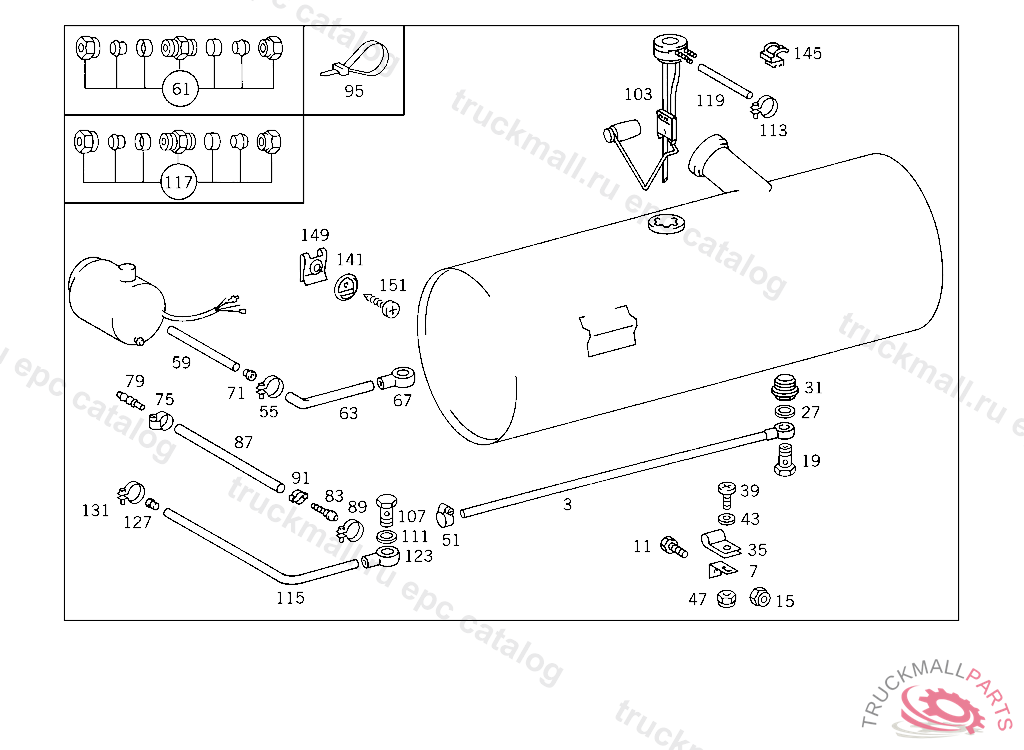

Поз.
Артикул
Описание
3
LINE FROM FUEL TANK TO RUBBER HOSE,4 493047
7
BRACKET , Replaced By: A3812950440
7
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
7
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
11
SCREW PIPE CLAMP
11
SCREW , Replaced By: N304017008021
15
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
15
NUT , Replaced By: N913004008001
19
HOLLOW SCREW , Replaced By: N915036010108
19
HOLLOW SCREW FUEL LINE TO FUEL TANK
19
HOLLOW SCREW FUEL LINE TO FEED PUMP
27
SEAL RING FUEL LINE TO FEED PUMP
31
FITTING FUEL LINE TO FUEL TANK,4 493047
35
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
35
CLAMP , Replaced By: N916016008200
35
CLAMP , Replaced By: A3604300143
35
CLAMP ,K 147121, Replaced By: N000000000319
39
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
43
WASHER COMPRESSED AIR LINE TO BRACKET
43
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
NUT PUMP TO BRACKET
47
NUT , Replaced By: N913004006001
51
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
55
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059972790
59
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
61
FITTING (PARTS KIT),LINE RUPTURE
63
HOSE CONNECTION OF FUEL LINES ONE BELOW THE OTHER 8X12 MM, ORDER BY THE METER
63
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
67
BANJO UNION , Replaced By: N915052006003
67
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
71
SLEEVE LINE CONNECTION
71
SLEEVE , Replaced By: N915062006000
75
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
79
FITTING 3/2-WAY VALVE
83
CONNECTOR FEED & RETURN
87
HOSE LEAK LINE, ORDER BY THE METER
89
CLAMP LINE MOUNTING
89
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
91
LOOM TIE LINE MOUNTING
95
LOOM TIE LINE MOUNTING
95
LOOM TIE LINE MOUNTING 280 MM
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT , Replaced By: A0085424017
103
SENDER UNIT , Replaced By: A0085428617
103
SENDER UNIT , Replaced By: A0085428517
103
SENDER UNIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 656938, Replaced By: A0055424317
103
SENDER UNIT FUEL GAUGE
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
107
HOLLOW SCREW LINE CONNECTION
111
SEAL RING FUEL LINE TO FEED PUMP
113
CLAMP LINE MOUNTING
115
PLASTIC PIPE RISING PIPE 4X6 MM
115
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
117
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
119
HOSE LEAK LINE, ORDER BY THE METER
123
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
127
SLEEVE LEAK LINE
127
BUSHING , Replaced By: N915062004000
127
BUSHING , Replaced By: N915062004000
131
CLAMP LINE MOUNTING
141
BRACKET LINE MOUNTING
145
CLIP CABLE HARNESS TO ROOF RAIL
149
LOCK FUEL LINE
151
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
151
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
999
CLAMP FUEL LINE TO CAB CONSOLE,5 092216
999
HOLLOW SCREW ,4 493018, Replaced By: N915047010100
999
FITTING , Replaced By: A0029905971
999
LOCK , Replaced By: A1409941045
