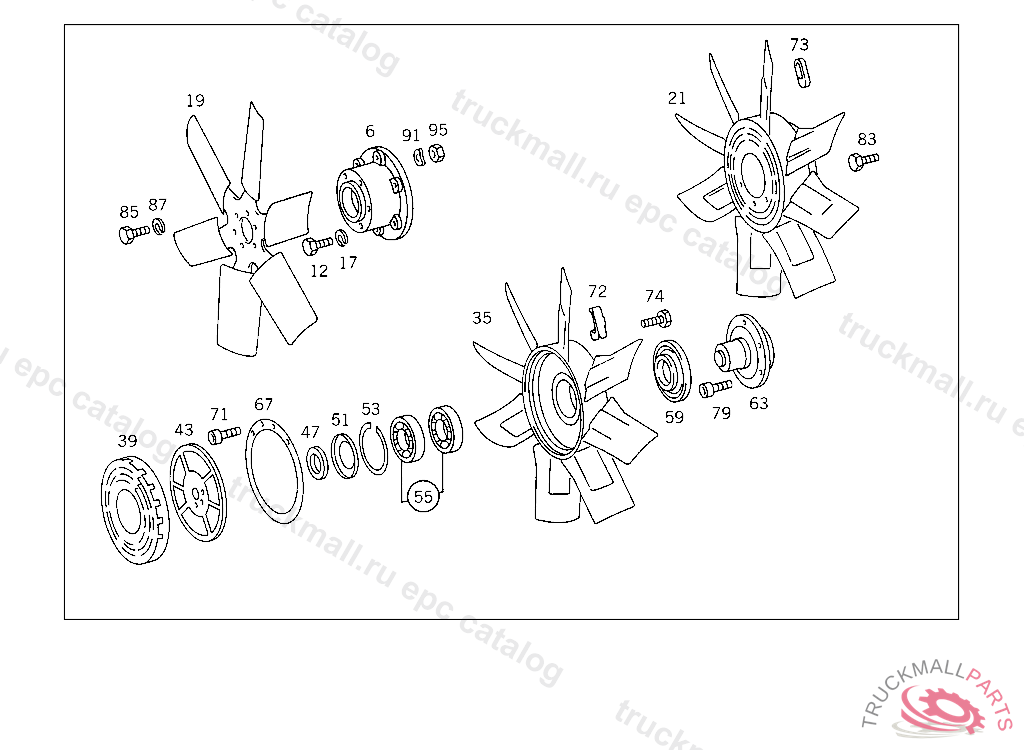

Поз.
Артикул
Описание
6
SPACER RING FAN
12
SCREW THERMOSTAT HOUSING TO CYLINDER HEAD M 8X20
17
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
19
FAN
19
FAN 8-BLADE,RIGID
19
FAN
19
FAN SUCTION TYPE
19
FAN PRESSURE TYPE
19
FAN
21
FAN 6-BLADE,WITH FLEXIBLE FAN HUB
21
FAN 8-BLADE,WITH FLEXIBLE FAN HUB
21
FAN 8-BLADE,WITH FLEXIBLE FAN HUB
35
FANTO 001 205 99 06
35
FANTO 001 205 48 06/51 06
35
FAN 6-BLADE
39
COVER
39
COVERTO 001 205 95 06
39
COVERTO 001 205 48 06/51 06
43
PRIMARY CUP
43
PRIMARY CUPTO 001 205 40 06
43
PRIMARY CUPTO 001 205 95 06
47
SPACER RING
51
SEAL RING
53
LOCK AS REQUIRED 2.1 MM
53
LOCK AS REQUIRED 2.3 MM
53
LOCK AS REQUIRED 2.0 MM
53
LOCK AS REQUIRED 2.2 MM
55
BALL BEARINGTO 001 205 99 06
55
BALL BEARING
59
SEAL RING
63
FLANGE
63
FLANGE
67
GASKET
67
GASKET FRONT COVER
71
SCREW OIL PIPE TO SLEEVE VALVE
72
CLAMPING PIECE (SLIDE)
73
GUIDE
74
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
79
SCREW
83
SCREW , Replaced By: N304017008021
83
SCREW PIPE CLAMP
85
SCREW , Replaced By: A0099900101
85
SCREW , Replaced By: N304017008034
85
SCREW , Replaced By: N000933008337
85
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
85
SCREW FUEL TANK TO SUPPORT
85
SCREW BRACKET TO CROSS CONNECTION STRUT
87
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
87
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
87
SPRING WASHER , Replaced By: N000137008212
91
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
91
SPRING WASHER , Replaced By: N000137008212
95
NUT
999
SPACER RING , Replaced By: A3552050851
999
SPACER RING FAN TO INTERMEDIATE PIECE
999
INTERMEDIATE PIECE
999
FAN
999
BALL BEARING , Replaced By: A0049810525
999
FAN , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0022058006, +006N000137008204
999
FAN , Replaced By: A0012059906
999
FAN , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0022057006, +006N000137008204
999
FAN , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0022058006, +006N000137008204
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 60 CCM,TO 002 205 04 06
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 64 CCM,TO 002 205 01 06
999
RECEPTACLE SILICONE GREASE, FILLING QUANTITY: 70 CCM,TO 002 205 65 06
999
GASKET , Replaced By: A0002060680
999
GASKET , Replaced By: A0002060580
