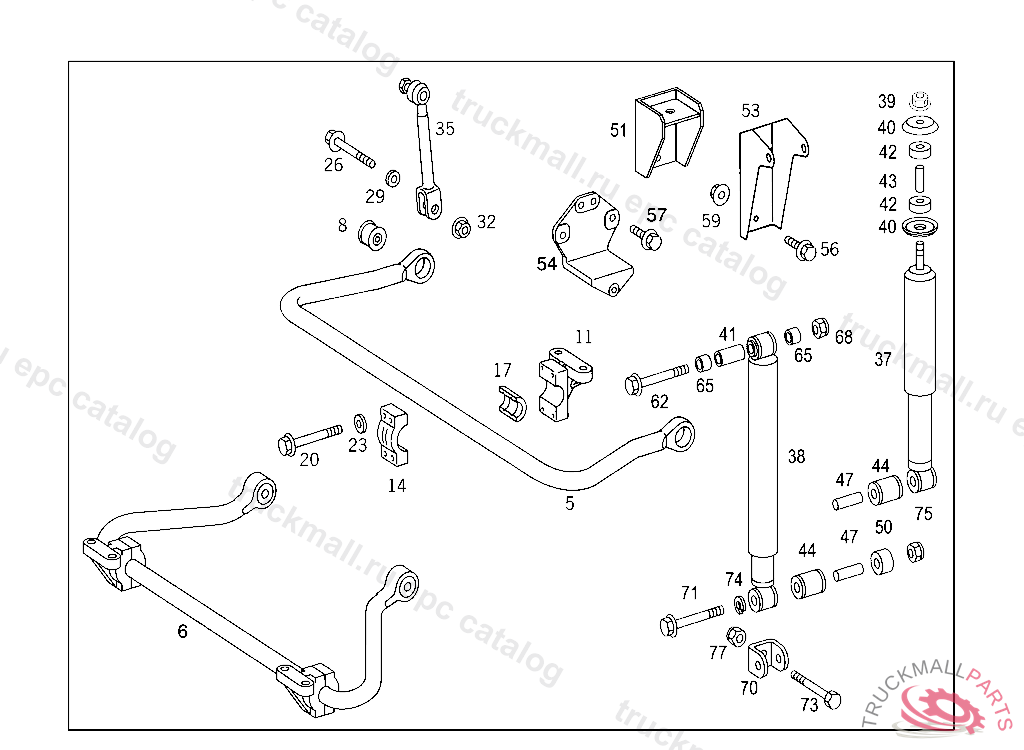

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER,D 012296
6
TORSION BAR STABILIZER
8
BUSHING
11
BEARING BRACKET HOLE SPACING: 100 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
17
GROMMET STABILIZER
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
29
WASHER
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
32
NUT SUPPORT TO FRAME
35
ROD (ARTICULATED ROD)
35
ROD (ARTICULATED ROD)
38
SHOCK ABSORBER FRONT
41
BUSHINGTO 384 323 72 00
41
BUSHING
44
RUBBER MOUNTINGTO 384 323 72 00
44
RUBBER MOUNTING
47
BUSHINGTO 384 323 72 00
50
SPACER TUBETO 384 323 72 00
53
BEARING BRACKET ,D 154336
53
BEARING BRACKET
54
BEARING BRACKET LEFT
54
BEARING BRACKET RIGHT 88 MM
56
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
57
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
59
NUT SUPPORT TO FRAME
59
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
62
SCREW MOUNTING PARTS M16 X 1.5 X 110
65
SPACER TUBE SHOCK ABSORBER TO UPPER BEARING BRACKET,D 204382
68
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
71
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M16 X 1.5 X 100
71
SCREW MOUNTING PARTS M16 X 1.5 X 110
71
SCREW SHOCK ABSORBER TO BRACKET
74
LOCK WASHER TRANSMISSION TO BELL HOUSING
