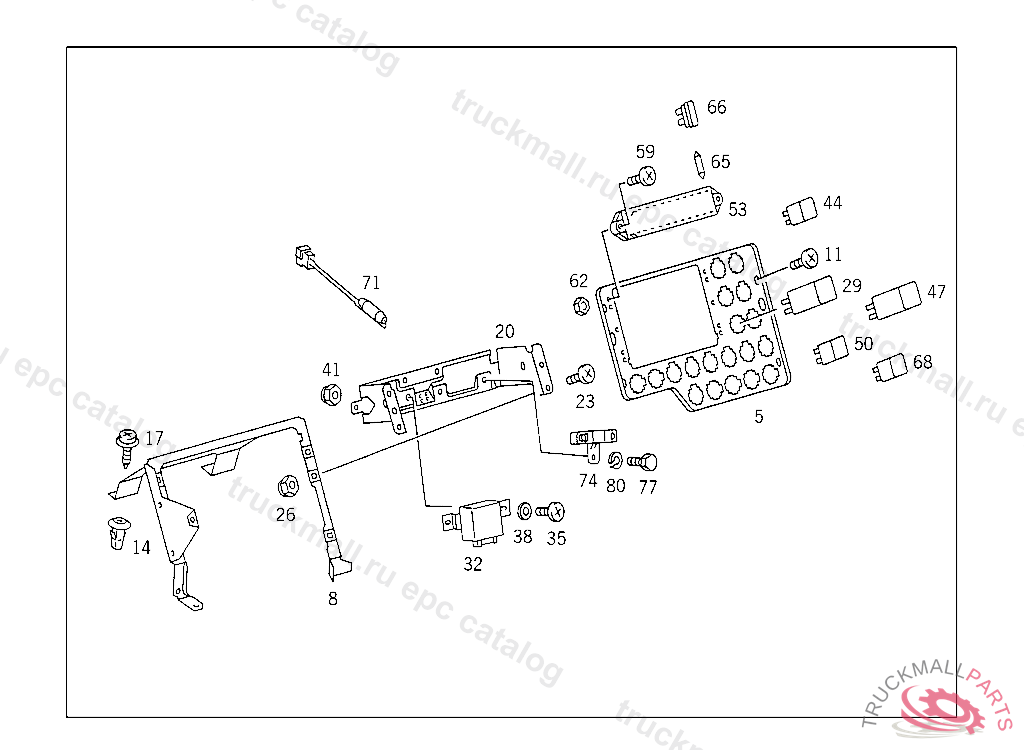

Поз.
Артикул
Описание
5
PLATE RELAY AND FUSE BOX
8
BRACKET APPARATUS PLATE
11
SCREW CONTROL UNIT
14
TREENAIL BRACKET TO WINDOW LEVEL
17
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
20
PLATE BRACKET TO WINDOW LEVEL
23
SCREW CONTROL UNIT
26
NUT. CAPTIVE NUT PLATE TO BRACKET
29
SENDER UNIT
29
SENDER UNIT BLINKER SYSTEM
32
SWITCH,AUTOMATIC WIPER INTERMITTENT ACTION
35
SCREW CABLE TO FUSE BOX M 6X12
38
WASHER PLUG SOCKET TO BRACKET
41
NUT PUMP TO BRACKET
44
DIODE BOX DIODE CASE
44
DIODE BOX DIODE CASE
44
DIODE BOX DIODE CASE
44
DIODE BOX
44
DIODE BOX
47
CONTROL UNIT ENGINE SPEED
47
CONTROL UNIT ENGINE SPEED
50
RELAY KEY-STOP SYSTEM
50
RELAY
53
FUSE BOX 12-POLE, TERMINALS 1-2,3-4,5-11 SHUNTED,B 951658
53
FUSE BOXNO.1
53
FUSE BOX ,NB953480
53
FUSE BOX ADDITIONAL FLOODLIGHT,MB910567
59
SCREW FUSE BOX TO APPARATUS PLATE
62
NUT
65
FUSE15A
65
FUSE8 A
65
FUSE5 A,B 951658
66
FUSE15 A
66
FUSE , Replaced By: A3845457434
66
FUSE7,5 A
66
FUSE7,5 A
66
FUSE , Replaced By: A3845457634
66
FUSE5 A
66
FUSE5 A
66
FUSE , Replaced By: A3845457734
66
FUSE10 A
66
FUSE10 A
66
FUSE10 A
66
FUSE15 A
68
RELAY , Replaced By: A6885427719
68
RELAY , Replaced By: A6885428219
68
RELAY12 V - 10/30 A
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885420119
68
RELAY BUZZER
68
RELAY , Replaced By: A6885427619
71
RESISTOR CHARGE CONTROL,4 477131
71
RESISTOR ALTERNATOR PRE-EXCITATION,1B 915840
74
RESISTOR
77
SCREW BRACKET MOUNTING
80
LOCK WASHER PLUG SOCKET
999
SENDER UNIT BLINKER SYSTEM
999
COMBINATION BOLT BRACKET TO WINDOW LEVEL
999
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
999
CLAMP SENSOR CABLE TO FRONT AXLE
