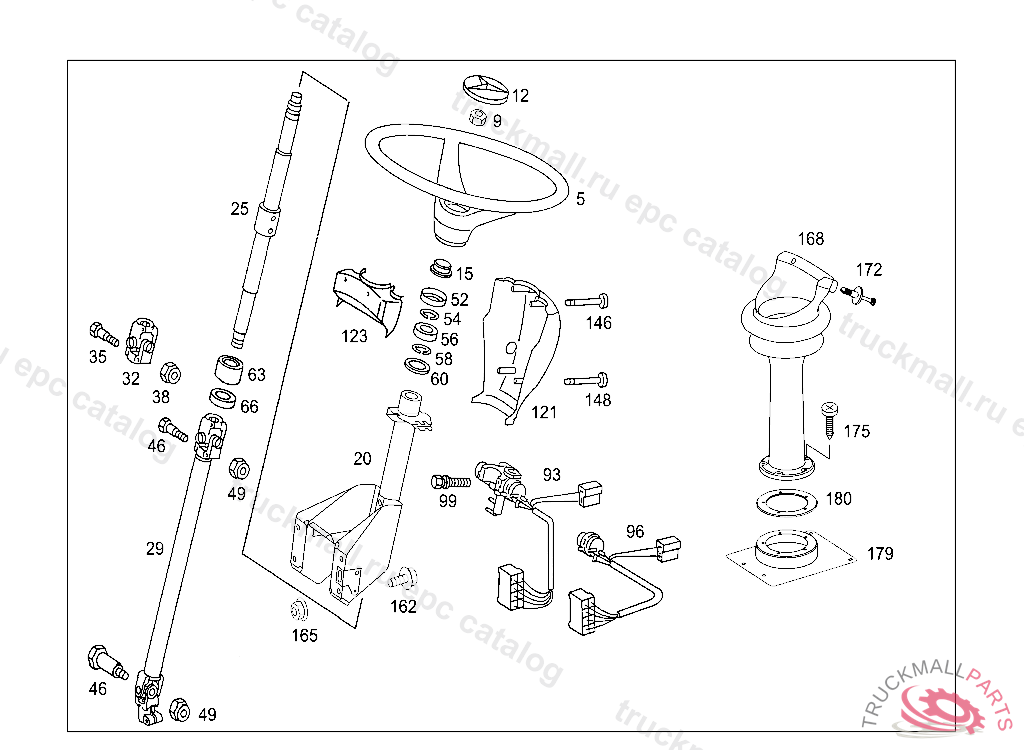

Поз.
Артикул
Описание
5
STEERING WHEEL450 MM, .........INO.5C38I.........I I II
5
STEERING WHEEL
9
NUT TRAILER COUPLING TO REAR CROSS MEMBER
9
NUT STEERING WHEEL TO STEERING COLUMN
12
CAP STEERING WHEEL TO A 695 464 70 01, .......INO.9985I I I II I
12
BADGE , NO.5B21INO.5C38I I I II .......INO.5C38I.......I I II
15
BUSHING FUEL LINE THRU FRAME SIDE MEMBER
20
STEER. COLUMN JACKET TUBE
25
STEERING SHAFT
29
STEERING SHAFT BOTTOM385-457MM
32
UNIVERSAL JOINT STEERING SHAFT TO STEERING, MECHANIC STEERING-762.0
35
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
38
NUT HORN TO BRACKET M8
46
SCREW STEERING SHAFT TO STEERING M 8X42
49
NUTM8
52
COVER
54
LOCK RING
56
BALL BEARING
58
LOCK RING
60
WASHER
63
NEEDLE BEARING
63
NEEDLE BEARING
66
COVER
93
STEERING LOCK LESS TUMBLER, NOT USED
96
SWITCH BOX IGNITION/STARTING SWITCH
99
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING M 8X20
99
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
121
TRIM STEERING COLUMN STEERING COLUMN PANELLING, .......INO.9051I.......I ....... I.......I....... I I
121
SHELL STEERING COLUMN PANELLING,FRONT
123
SHELL STEERING COLUMN
123
TRIM STEERING COLUMN STEERING COLUMN PANELLING, .......INO.9051I.......I ....... I.......I....... I I
146
SCREW SHELL TO STEERING COLUMN M 5X70,D 020659
148
SCREW SHELL TO STEERING COLUMN
162
SCREW SHIFT LEVER TO BRACKET M8X30
165
NUT HORN TO BRACKET M8
168
COVER STEERING COLUMN PANELLING
168
TRIM STEERING COLUMN STEERING COLUMN PANELLING, .......INO.9051I.......I ....... I.......I....... I I
172
RIVET STEERING COLUMN PANELLING
172
RIVET ,4 497676
175
SHEET METAL SCREW BRACKET TO FLOOR PLATE
175
TAPPING SCREW MOUNTING PARTS 4.8X16
179
180
SUPPORT RING STEERING COLUMN PANELLING
