Поз.
Артикул
Описание

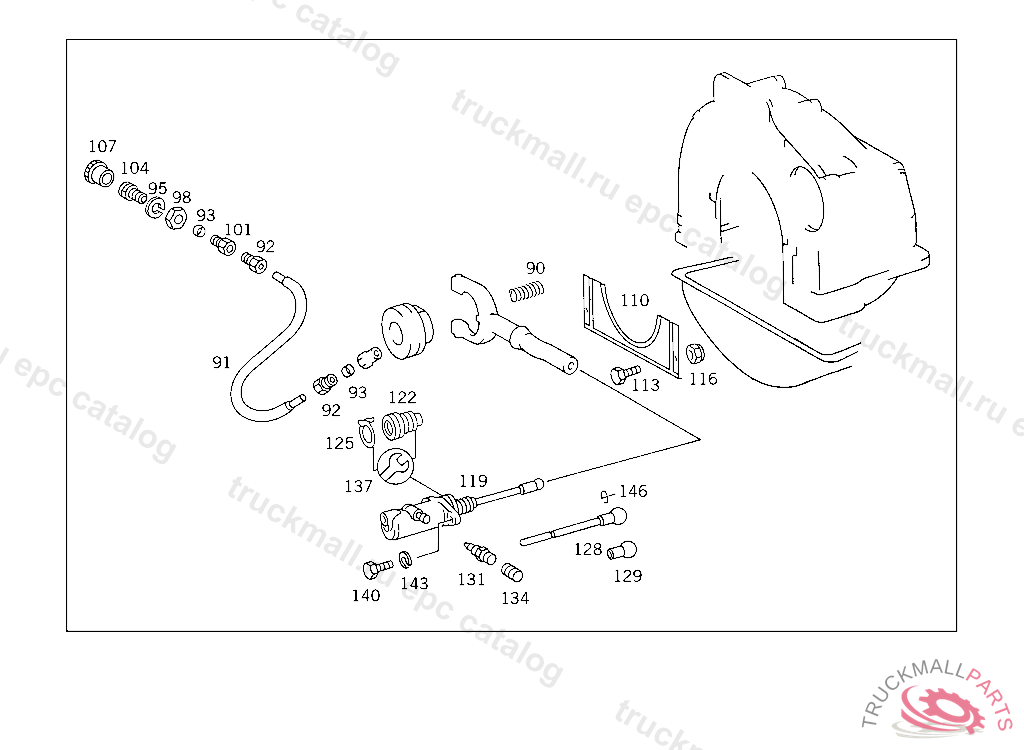

91
HOSE RELEASE BEARING LUBRICATION
91
HOSE RELEASE BEARING LUBRICATION
92
UNION SCREW RELEASE BEARING LUBRICATION
93
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
95
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
98
NUT BRACKET TO SIDE MEMBER
101
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
104
GREASE NIPPLE RELEASE COLLAR LUBRICATION
107
CAP RELEASE BEARING LUBRICATION
110
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
113
SCREWM 6X12
116
NUT PUMP TO BRACKET
119
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
119
SLAVE CYLINDER CLUTCH ACTUATION
119
SLAVE CYLINDER CLUTCH ACTUATION
119
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. D 187336, Replaced By: A0012959407
119
SLAVE CYLINDER , Replaced By: A3842957107
119
SLAVE CYLINDER CLUTCH ACTUATION
119
SLAVE CYLINDER CLUTCH
119
SLAVE CYLINDER , Replaced By: A3842957307, +001A3842907939
122
BOOT
122
BOOT
122
BOOT , Replaced By: A0005863129
122
BOOTTO 345 295 70 07
125
LOCK
128
ROD TO 384 295 71 07,002 295 04 07,94 07
128
ROD TO 384 295 73 07
128
ROD
129
BALL SOCKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. D 187336, Replaced By: A6829910022
131
BLEEDER VALVE , Replaced By: A0004310265
131
VALVE BREATHER
131
VALVE CLUTCH SLAVE CYLINDER
134
PROTECTIVE CAP ,5 962906
134
PROTECTIVE CAPTO001 295 91 07
134
PROTECTIVE CAP , Replaced By: A0004217187
137
REPAIR KIT CLUTCH SLAVE CYLINDER
137
SLAVE CYLINDER REPAIR KIT
137
REPAIR KIT , Replaced By: A0002901311
137
REPAIR KIT , Replaced By: A0002901611
137
REPAIR KIT CLUTCH SLAVE CYLINDER
140
SCREW , Replaced By: N304017010002
143
LOCK WASHER FUSE
146
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
