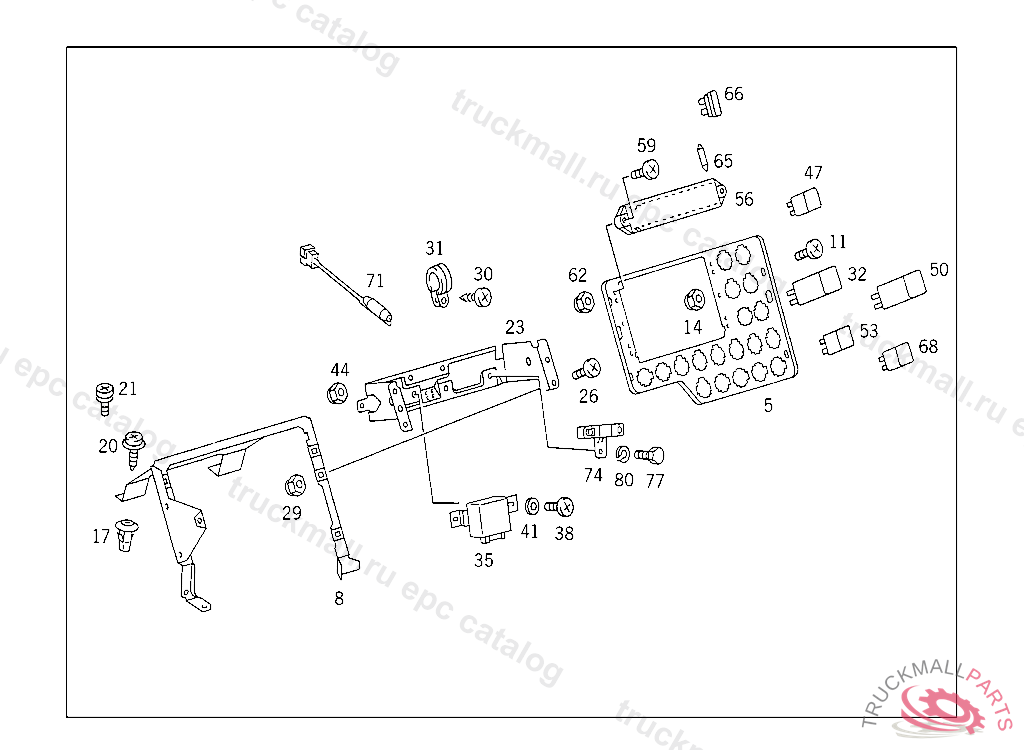

Поз.
Артикул
Описание
5
PLATE RELAY AND FUSE BOX
8
BRACKET APPARATUS PLATE
11
SCREW CONTROL UNIT
14
NUT TWO-WAY VALVE TO BRACKET
17
TREENAIL BRACKET TO WINDOW LEVEL
20
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
21
COMBINATION BOLT BRACKET TO WINDOW LEVEL
23
PLATE BRACKET TO WINDOW LEVEL
26
SCREW CONTROL UNIT
29
NUT TWO-WAY VALVE TO BRACKET
30
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
31
CLAMP SENSOR CABLE TO FRONT AXLE
32
SENDER UNIT
32
SENDER UNIT BLINKER SYSTEM
35
SWITCH,AUTOMATIC WIPER INTERMITTENT ACTION
38
SCREW CABLE TO FUSE BOX M 6X12
41
WASHER PLUG SOCKET TO BRACKET
44
NUT
47
DIODE BOX DIODE CASE
47
DIODE BOX DIODE CASE
47
DIODE BOX DIODE CASE
47
DIODE BOX
47
DIODE BOX
53
RELAY KEY-STOP SYSTEM
53
RELAY
56
FUSE BOX 12-POLE, TERMINALS 1-2,3-4,5-11 SHUNTED,B 951658
56
FUSE BOXNO.1
56
FUSE BOX ,NB953480
56
FUSE BOX ADDITIONAL FLOODLIGHT,MB910567
59
SCREW FUSE BOX TO APPARATUS PLATE
62
NUT
65
FUSE15A
65
FUSE8 A
65
FUSE8 A
65
FUSE5 A,B 951658
65
FUSE5 A,B 951658
66
FUSE15 A
66
FUSE15 A
66
FUSE , Replaced By: A3845457434
66
FUSE10 A
66
FUSE10 A
66
FUSE10 A
66
FUSE7,5 A
66
FUSE7,5 A
66
FUSE , Replaced By: A3845457634
66
FUSE5 A
66
FUSE5 A
66
FUSE , Replaced By: A3845457734
68
RELAY , Replaced By: A6885427619
68
RELAY BUZZER
68
RELAY , Replaced By: A6885428219
68
RELAY , Replaced By: A6885428219
68
RELAY , Replaced By: A6885428219
68
RELAY , Replaced By: A6885428219
68
RELAY , Replaced By: A6885428219
68
RELAY , Replaced By: A6885428219
68
RELAY12 V
68
RELAY12 V
68
RELAY12 V
68
RELAY12 V
68
RELAY12 V
68
RELAY12 V
68
RELAY , Replaced By: A6885420119
68
RELAY , Replaced By: A6885427719
71
RESISTOR ALTERNATOR PRE-EXCITATION,1B 915840
71
RESISTOR CHARGE CONTROL,4 477131
74
RESISTOR
77
SCREW BRACKET MOUNTING
80
LOCK WASHER PLUG SOCKET
999
SENDER UNIT BLINKER SYSTEM
