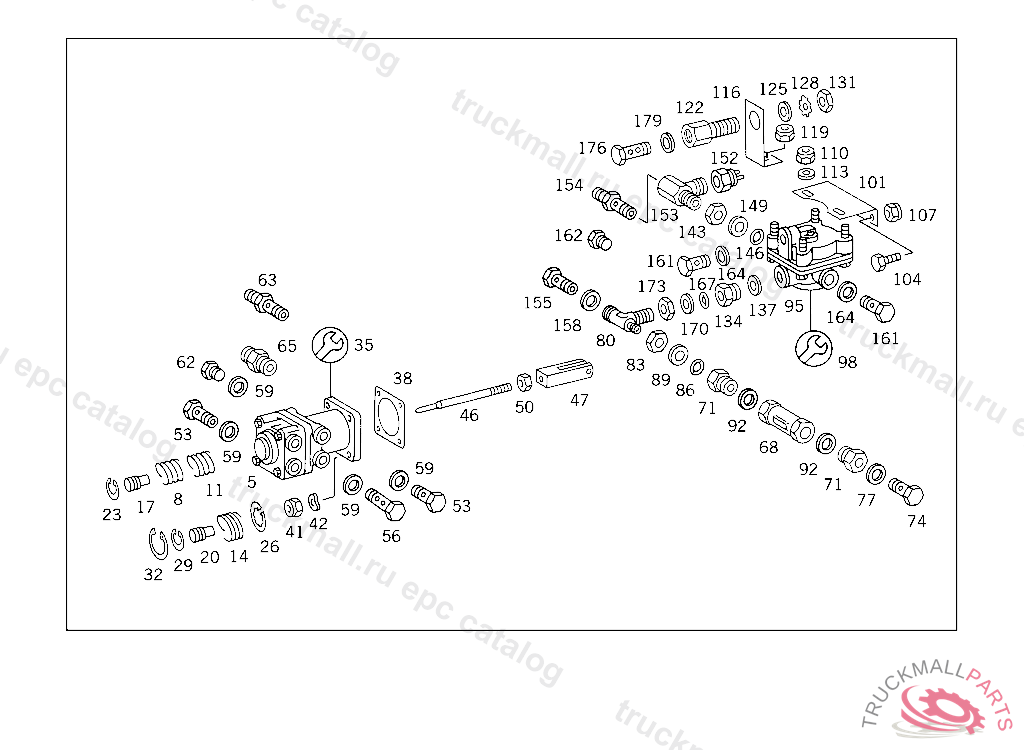

Поз.
Артикул
Описание
5
BRAKE VALVE SERVICE BRAKE KNORR
5
BRAKE VALVE SERVICE BRAKE WABCO
5
BRAKE VALVE SERVICE BRAKE WABCO
8
SPRINGTO 345 431 70 05
11
SPRINGTO 345 431 70 05
14
SPRINGTO 345 431 71 05
17
PISTONTO 345 431 70 05
20
PISTONTO 345 431 71 05
23
LOCKTO 345 431 70 05
26
LOCK RINGTO 345 431 71 05
29
LOCK RINGTO 345 431 71 05
29
LOCK RING
32
LOCK RING PLANETARY CARRIER
35
REPAIR KIT SMALL SCOPE TO 345 431 70 05
35
REPAIR KIT SMALL SCOPE TO 345 431 71 05
35
REPAIR KIT LARGE SCOPE TO 345 431 70 05
35
REPAIR KIT , Replaced By: A0014300460
38
GASKET BRAKE SHOE WITH LINING
41
NUT BATTERY CASE
42
SPRING WASHER BRAKE SHOE WITH LINING
46
ROD FROM FITTING TO CLUTCH BOOSTER
47
YOKE
50
NUT FUEL TANK TO SUPPORT
53
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
56
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
59
SEAL RINGTO 006 997 00 72
62
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
63
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
65
CONNECTION FITTING
68
VALVE (CHECK VALVE)
68
VALVE (CHECK VALVE)
68
VALVE (CHECK VALVE)
71
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
74
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
77
SEAL RINGTO 006 997 00 72
80
T-FITTING FROM CHECK VALVE TO RELAY VALVE
80
T-FITTING FROM CHECK VALVE TO RELAY VALVE
83
NUT CHECK VALVE TO AIR RESERVOIR
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
89
THRUST RING CHECK VALVE TO AIR RESERVOIR
92
SEAL RING LINE CONNECTION
95
VALVE (RELAY VALVE),REAR AXLE
95
VALVE (RELAY VALVE) KNORR
95
VALVE (RELAY VALVE) WABCO
98
REPAIR KITTO 003 429 30 44,KNORR
98
REPAIR KITKNORR
98
REPAIR KIT SMALL SCOPE TO 001 429 68 44
98
REPAIR KITWABCO
101
BRACKET REAR AXLE RELAY VALVE
104
SCREW BRACKET TO CROSS MEMBER
107
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
WASHER TRAILER PLUG SOCKET TO BRACKET
116
BRACKET RELAY VALVE
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
119
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
122
ADAPTER FITTING , Replaced By: A0004296934
125
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
128
TOOTHED WASHER SENDER UNIT TO BRACKET
131
NUT BRACKET TO SIDE MEMBER
134
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
137
SEAL RING LINE CONNECTION
143
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
146
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
149
THRUST RING LOCKING VALVE
149
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
152
SWITCH SUPPLY PRESSURE,5 966147
152
SWITCH RELAY VALVE,CONNECTION "2",RIGHT
153
T-FITTING TRAILER CONTROL VALVE,CONNECTION: "1"
153
T-FITTING AIR RESERVOIR,CONNECTION: "31"
154
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "11"
154
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
155
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
158
SEAL RINGTO 006 997 00 72
161
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
162
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
164
SEAL RINGTO 006 997 00 72
167
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
THRUST RING LOCKING VALVE
173
NUT LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
176
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
179
SEAL RINGTO 006 997 00 72
999
ROD , Replaced By: A3842927032, +001A3849967001, +001N000934012009
