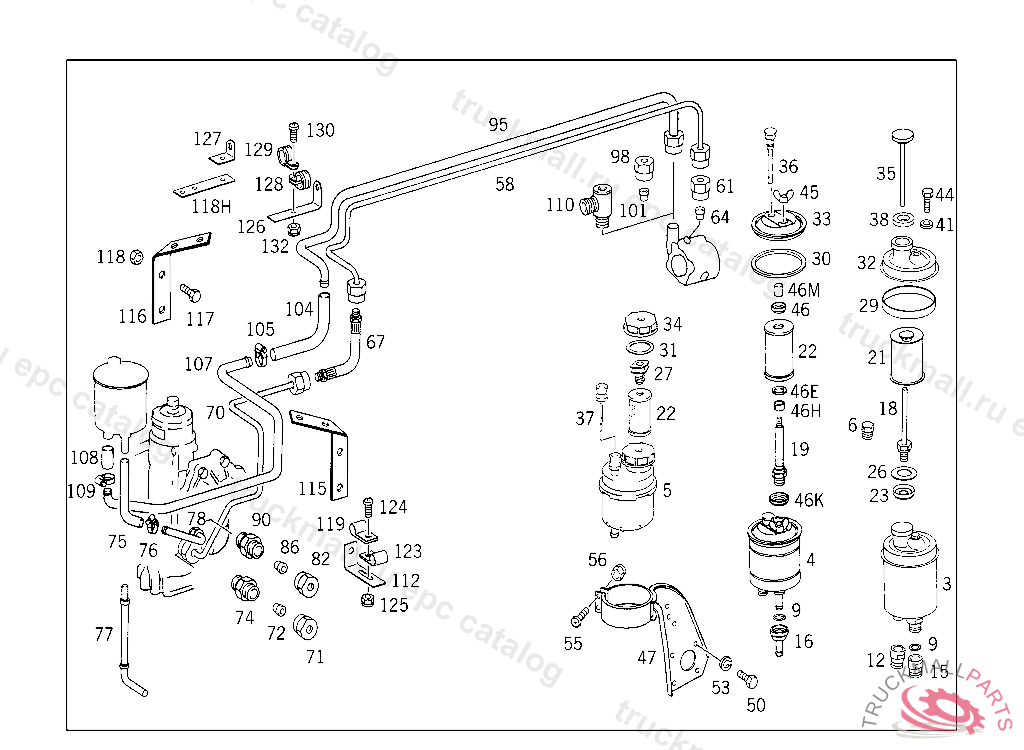

Поз.
Артикул
Описание
3
TANK , 993034
4
TANK , Replaced By: A0004664502
5
TANK OIL
6
FITTING , 993034
9
SEAL RING , Replaced By: A0059970848
9
SEAL RINGTO 000 466 38 02
12
CONNECTOR , 993034
15
CONNECTOR , 993034
16
CONNECTORTO 000 466 38 02
18
FILTER CARRIER , 993034
19
FILTER CARRIERTO 000 466 38 02
21
FILTER , 993034
22
FILTER
22
FILTER
23
VALVE DISC , 993034
26
SPRING , 993034
27
BRACKET
29
GASKET , Replaced By: A0004660580
29
GASKET , 993034
30
SEAL RINGTO 000 466 38 02
31
SEAL RING
32
COVER , 993034
33
COVERTO 000 466 38 02
34
FILLER CAP
35
COVER , 993034
36
PIPETO 000 466 38 02
37
OIL DIPSTICK , Replaced By: A0004660867
37
OIL DIPSTICK
38
GASKET , 993034
41
WASHER , 993034
44
SCREW , Replaced By: N304017008016
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
NUT , 993035
46
CENTERING RINGTO 000 466 38 02
47
BRACKET OIL TANK
47
BRACKET OIL TANK
50
SCREW , Replaced By: N304017010028
50
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
53
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
55
SCREW , Replaced By: A0029903712
55
SCREW , Replaced By: N000000001149
55
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
55
SCREW OIL TANK TO BRACKET
56
NUT , Replaced By: N913004006001
56
NUT PUMP TO BRACKET
56
NUT , Replaced By: N913002006009
56
NUT OIL TANK TO BRACKET
58
LINE FROM POWER STEERING PUMP TO HOSE
58
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
61
UNION NUT LINE CONNECTION, Replaced By: N000000006239
64
GLAND , Replaced By: A0019901967
64
SEAL CONE LINE CONNECTION
67
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
67
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
67
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
70
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
70
LINE FROM HIGH PRESSURE HOSE TO STEERING, 993034
70
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
70
LINE , NOT USED
71
UNION NUT LINE CONNECTION, Replaced By: N000000006239
72
GLAND , Replaced By: A0019901967
72
SEAL CONE LINE CONNECTION
74
SCREW-IN FITTING DELIVERY LINE TO PUMP
75
HOSE , Replaced By: A6999974082
75
HOSE , Replaced By: A3859971682
75
HOSE , NOT USED
76
CLAMP HOSE TO FITTING AND TO OIL TANK
76
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
77
LINE FROM STEERING TO OIL TANK, 993034
78
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
78
LINE FROM STEERING TO OIL TANK
82
UNION NUT LINE CONNECTION
86
GLAND LINE CONNECTION
90
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
95
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
95
LINE , Replaced By: A0004291601
95
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
98
UNION NUT LINE CONNECTION, Replaced By: N000000006243
101
SEAL CONE LINE CONNECTION
101
GLAND , Replaced By: A0019901267
104
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
105
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
105
CLAMP , Replaced By: N000000000667
107
LINE FROM RETURN LINE TO OIL TANK, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
107
LINE FROM OIL TANK TO HOSE, NOT USED
108
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
109
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
109
CLAMP , Replaced By: N000000000667
110
ELBOW FITTING SUCTION LINE TO OIL PUMP
112
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
112
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
112
BRACKET , Replaced By: A3812950440
115
BRACKET DELIVERY AND SUCTION LINES TO FRAME
115
BRACKET , Replaced By: A6564660040
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
117
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
117
SCREW , Replaced By: N308676012026
118
NUT SUPPORT TO SIDE MEMBER
123
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
124
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
NUT PUMP TO BRACKET
125
NUT , Replaced By: N913004006001
126
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
126
BRACKET , Replaced By: A6205244040
127
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
127
BRACKET , Replaced By: A3524290740
127
BRACKET , Replaced By: A3875015820
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
129
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
130
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
132
NUT PUMP TO BRACKET
132
NUT , Replaced By: N913004006001
999
NUT STEERING WHEEL TO STEERING COLUMN
999
SHEET METAL SCREW PROTECTIVE SLEEVE TO CAB FLOOR,4 188586
999
SCREW TORSION BAR TO SHACKLE,5 903514
999
SCREW ,5 903514, Replaced By: N000960012353
999
WIRE STEERING BOX ASSEMBLY TO STEERING SUPPORT 600 MM
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SPACER WASHERTO 000 466 38 02
999
PITMAN ARM , UP TO IDENT NO. 4 118554,ALSO INSTALLED ON 4 127151-4 129897
999
PROTECTIVE SLEEVE UNIVERSAL JOINT COVERING,4 188586
999
LINE FROM LINE TO OIL TANK, 993034
999
DRAG LINKLEMFOERDER,5 593344
999
LINE FROM LINE TO OIL TANK, 993034
999
DRAG LINK , Replaced By: A3874603505
999
DRAG LINK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204600005
999
PLUG TOP,5 220080
999
BRACKET , Replaced By: A3604293140
999
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 456943, Replaced By: A3814621196
999
WASHER , Replaced By: A3814620475
999
RING STEERING SHAFT
999
STEERING SHAFT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
COVER
999
STEERING WHEEL ,4 430199, Replaced By: A3834640201, +001A0004640432
999
PROTECTIVE CAP
999
HOSE , Replaced By: A0009978252
999
HOSE , Replaced By: A0009978252
999
HOSE , Replaced By: A0009978252
999
NEEDLE BEARING
999
SEALING CORD , Replaced By: A0059970848
999
RUBBER SLEEVETO 000 466 38 02
999
WASHER , Replaced By: A9402680552
999
COVER PLATETO 000 466 38 02
999
FILTER , Replaced By: A0004660604
999
SPACER TUBETO 000 466 38 02
999
BADGE STEERING WHEEL, NO.8316INO.7C52INO.7B90INO.9051I II I
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
999
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
