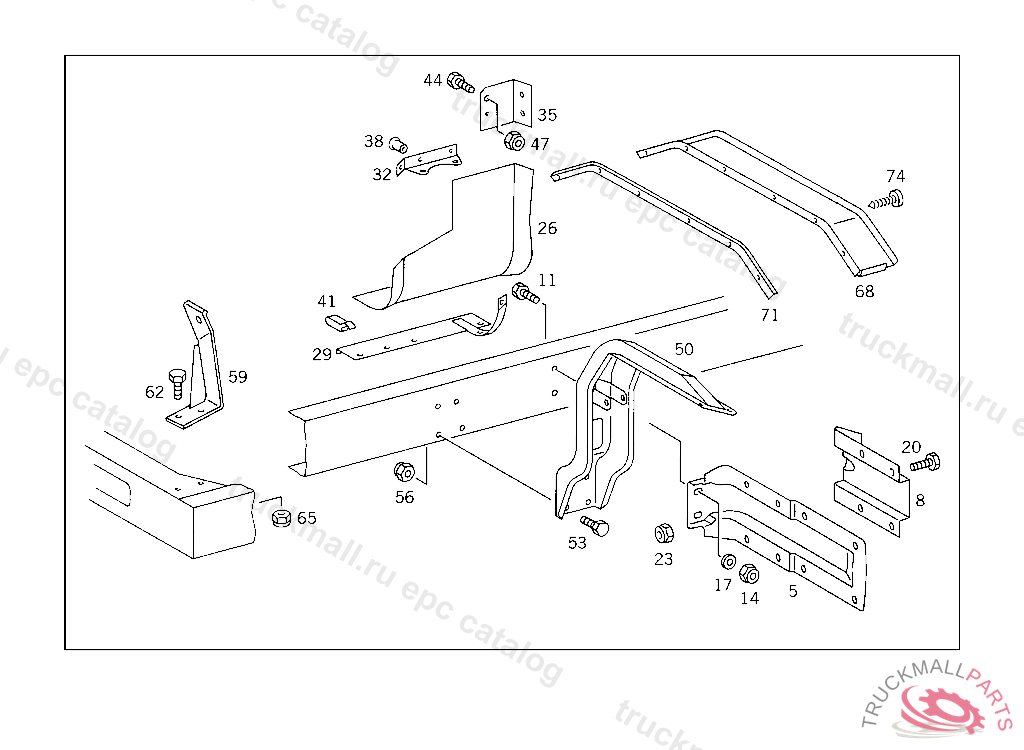

Поз.
Артикул
Описание
5
BRACKET FENDER
8
SUPPORT (CONSOLE),FOR FENDER
11
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
11
SCREW , Replaced By: N910105014010
14
NUT , Replaced By: N910113014001
14
NUT PARTICLE FILTER M14
17
WASHER FENDER BRACKET TO SIDE MEMBER
20
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
20
SCREW , Replaced By: N910142008009
23
NUT , Replaced By: N913004008001
23
NUT BRACKET TO BRACKET
26
DAMPING STRIP (SOUND INSULATION),RIGHT
26
DAMPING STRIP (SOUND INSULATION),LEFT
29
BRACKET LEFT
29
BRACKET RIGHT
32
BRACKET LEFT
32
BRACKET RIGHT
35
BRACKET LEFT
35
BRACKET RIGHT
38
RIVET BRACKET TO ANTINOISE CAPSULE
41
CLAMP , Replaced By: A3099950140
44
SCREW STEERING SHAFT BEARING TO CAB M 8X20
44
SCREW , Replaced By: N910142008001
47
NUT , Replaced By: N913004008001
47
NUT BRACKET TO BRACKET
50
BRACKET , Replaced By: A6455200241
50
BRACKET LEFT FENDER
50
BRACKET , Replaced By: A6455203841
50
BRACKET RIGHT FENDER
53
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
53
SCREW , Replaced By: N910105014010
56
NUT , Replaced By: N910113014001
56
NUT PARTICLE FILTER M14
59
BRACKET OIL REFILLING
62
SCREW BRACKET TO FRAME SIDE MEMBER
62
SCREW , Replaced By: N910105010009
62
SCREW , Replaced By: N910105010009
65
NUT , Replaced By: N910113010000
65
NUT EXHAUST PIPE TO SIDE MEMBER
65
NUT EXHAUST PIPE TO SIDE MEMBER
68
COVER ENGINE COVERING, FOR USE WITH SHORT MERCEDES-BENZ CAB
71
SHIM COVER PLATE TO CAB REAR PANEL, FOR USE WITH SHORT MERCEDES-BENZ CAB
74
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
