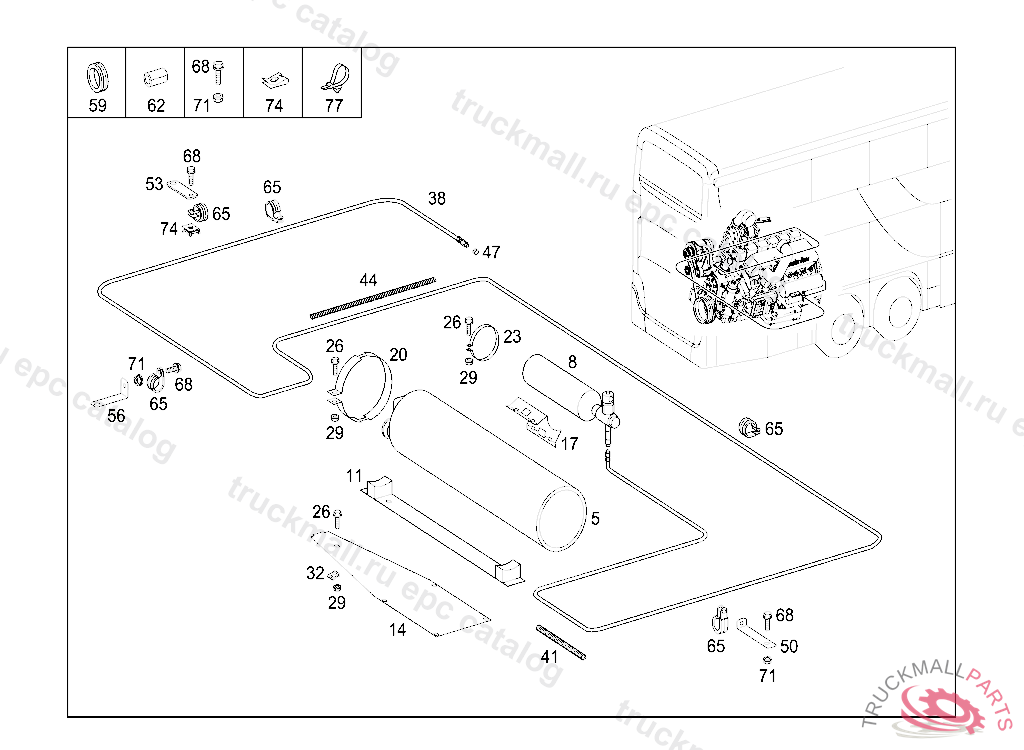

Поз.
Артикул
Описание
5
WATER CONTAINER EXTINGUISHING AGENT 6,5 L
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
11
BRACKET
14
PLATE
17
CONSOLE
20
STRAP
23
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
26
SCREW BRACKET TO SIDE MEMBER M8X20
26
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
29
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
32
SPRING-THREAD NUT PROTECTIVE PLATE
38
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
41
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
44
SPRING , TO BE ADAPTED DURING ASSEMBLY
47
TEST CONNECTION
50
ATTACHMENT ANGLE BRACKET
53
BRACKET
56
BRACKET
59
GROMMET
62
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
65
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
68
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
71
NUT COVERING TO CAB FIRE WALL
71
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
74
LOCK NUT. SPRING NUT MOUNTING PARTS
77
CABLE TIE310X5MM
77
CABLE STRAP LINE MOUNTING 4.6 X 200 MM, Replaced By: A0019951990
