Поз.
Артикул
Описание

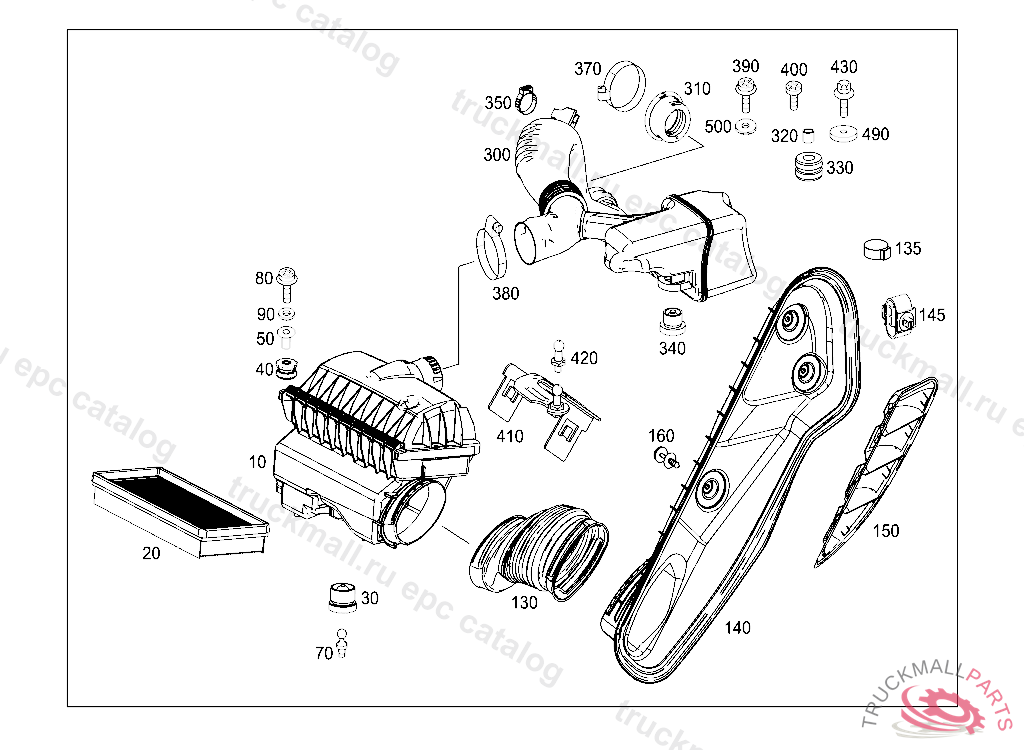

10
AIR FILTER AIR CLEANER HOUSING
20
AIR FILTER AIR CLEANER ELEMENT
30
PLUG SOCKET AIR CLEANER
40
COLLARED BUSHING AIR CLEANER
50
GROMMET AIR CLEANER
70
BALL PIN HOSE TO RESONATOR
80
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
90
WASHER AIR FILTER BOX AT TRANSMISSION
130
INTAKE LINE TO AIR FILTER HOUSING
135
HOSE CLAMP TERMINAL
140
SEPARATOR AIR DUCT
150
AIR BAFFLE AIR INTAKE, C22AQFT451L0002 BLACK MMC:BLACK
150
AIR FLOW SERRATION , C22AQFT451L0002 BLACK MMC:BLACK, Replaced By: A4518840158
160
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
300
HOSE LINE FROM AIR CLEANER TO TURBOCHARGER
310
GASKET AIR LINE
320
SPACER BUSH AIR LINE
330
GROMMET AIR LINE
340
PLUG SOCKET CONNECTOR
340
COLLARED BUSHING BUSHING
350
SINGLE-EYE CLAMP HOSE LINE ATTACHMENT
370
CLAMP W DRIVE A WASHER AIR INTAKE PIPE TO ENGINE
410
BRACKET HOSE TO RESONATOR
420
BALL PIN AT BRACKET
490
DECOUPLING SHIM AT BRACKET
