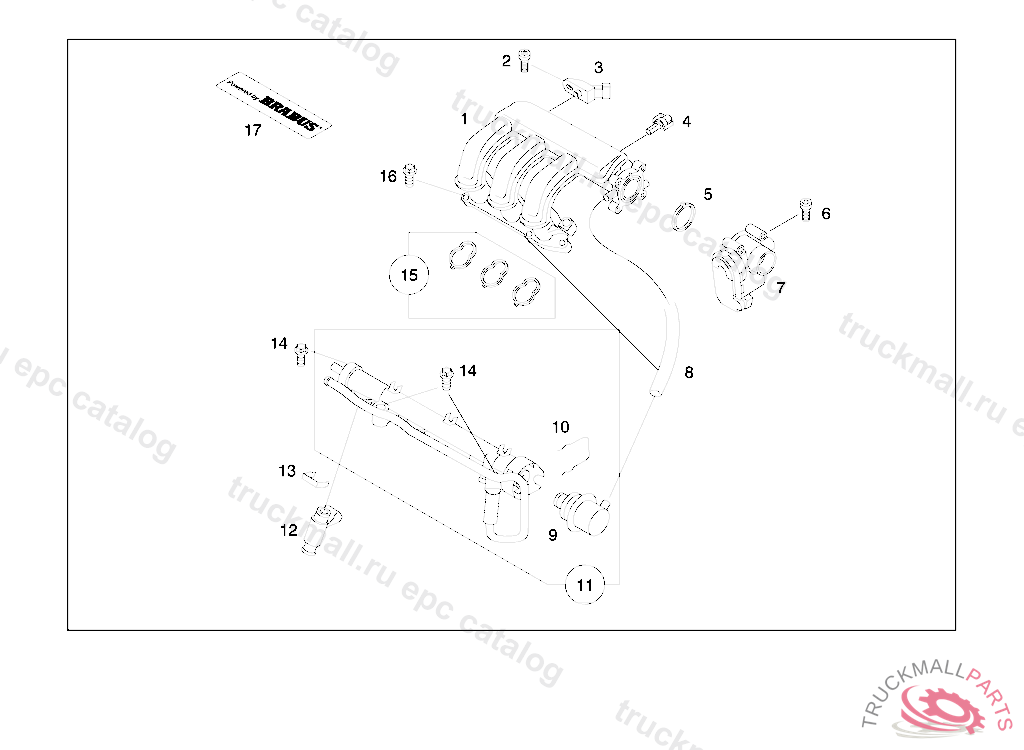

Поз.
Артикул
Описание
1
INTAKE LINE SHORT
2
SCREW TORX M7 X 23 TO PRESSURE SENSOR M6 X 20
3
PRESSURE TRANSMITTER INTA
4
AIR TEMPERATURE SENSOR
4
TEMPERATURE SENSOR. SENDER UNIT , Replaced By: A0061532028
5
SEAL ELECTRONIC THROTTLE
5
SEAL ELECTRONIC THROTTLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20200101, Replaced By: Q0003095V002000000
6
SCREW TORX M7 X 23M6 X 50
7
ELECTRONIC THROTTLE ACTUA
8
VACUUM LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20200101, Replaced By: Q0003098V005000000
8
VACUUM LINE FROM PRESSURE REGULATOR TO INTAKE PIPE
9
PRESSURE REGULATOR
10
RETAINING CLIP PRESSURE R PRESSURE REGULATOR
11
FUEL RAIL
12
INJECTOR 60 KW
13
RETAINING CLIP INJECTOR INJECTION VALVE
14
SCREW TORX M7 X 23 AT FUEL DISTRIBUTOR LINE M6 X 30
15
SEAL INTAKE LINE
16
SCREW DUOTAPTITE M6 X 53
16
HEXALOBULAR BOLT SHIELD AND PRESSURE SENSOR AND SPACER SLEEVE TO REAR BRACKET M6X33
17
SMART-BRABUS PLATE
