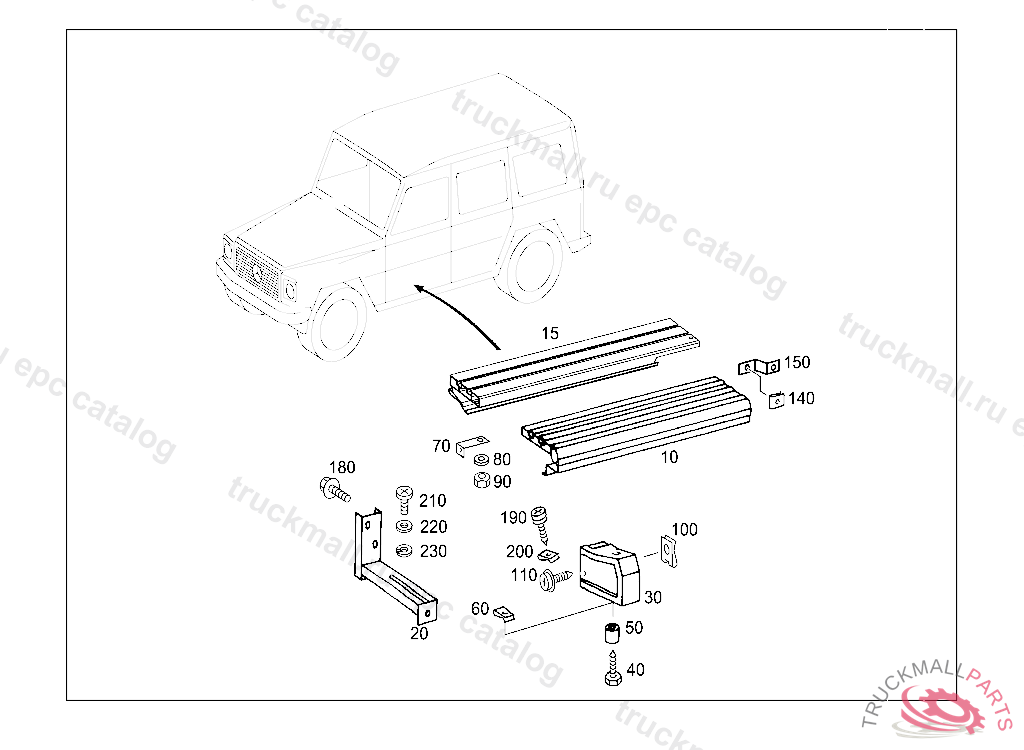

Поз.
Артикул
Описание
10
STEP RIGHT
10
STEP LEFT
15
STEP IN CASE OF FENDER WIDENING,RIGHT
15
STEP LEFT
20
CONSOLE LEFT
30
PANELING FRONT RIGHT
30
PANELING REAR RIGHT
30
PANELING FRONT LEFT
30
PANELING REAR LEFT
40
TAPPING SCREW FOR GRIP HANDLE
50
SPACER TUBE OIL LINE TO BRACKET,K 093236
60
LOCK
70
BRACKET END PIECE TO FRONT STEP
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER PUMP TO CONSOLE
90
HEXAGON NUT. NUT L.H. THREAD
100
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
110
TAPPING SCREW FOR GRIP HANDLE
110
TAPPING SCREW RADIATOR GRILLE SHELL TO ENGINE HOOD 4.8X13
140
LOCK
150
BRACKET END PIECE TO FRONT STEP
180
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M10X20
190
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
200
LOCK COVERING TO INSTRUMENT PANEL,TOP
210
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
220
WASHER PUMP TO CONSOLE
220
WASHER EXHAUST MUFFLER TO STRAP
230
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
