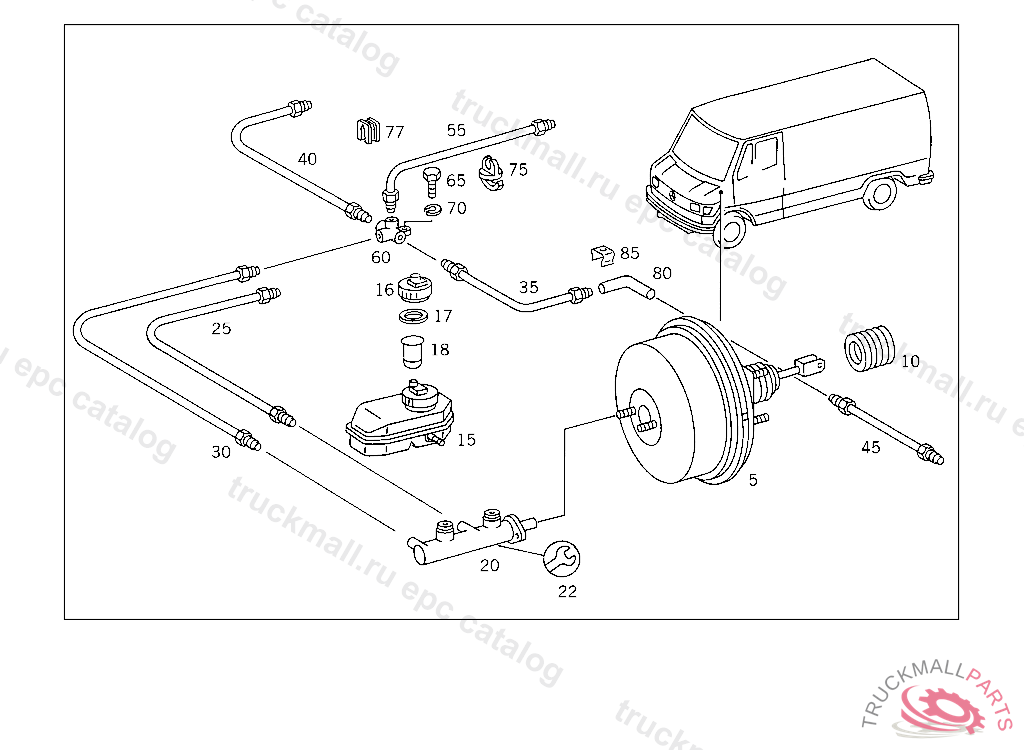

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY
10
CUP
15
RESERVOIR
16
FILLER CAP
17
SEAL RING42X21.5 MM
18
STRAINER
20
BRAKE MASTER CYLINDER
22
BRAKE MASTER CYLINDER
22
REPAIR KIT
22
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 807178, Replaced By: A0004302983
25
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE
30
LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT DISTRIBUTOR
35
LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
40
LINE , Replaced By: A1234207528
40
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
45
LINE FROM STEERING KNUCKLE TO CALIPER 160 MM
45
LINE FROM LEFT AND RIGHT BRAKE HOSES TO LEFT AND RIGHT CALIPERS 180 MM
55
LINE FROM MASTER CYLINDER TO ADAPTER FITTING, 000 193701 003 097469 086 006508 093 007717 102,103 209243 183 013349 190 020074 193 000014 200 006559 283 001514 INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
60
DISTRIBUTOR QUADRUPLE, UP TO IDENT NO.: 779683. FOR POST VANS UP TO IDENT NO.: 772626
65
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
70
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
75
BRACKET RELEASE SPRING,625235
77
BRACKET BRAKE LINES
80
BRAKE HOSE BETWEEN THE LINES,730280
85
RETAINING SPRING BRAKE HOSE TO BRACKET
999
LINE , Replaced By: A1234207528
999
LINE FROM STEERING KNUCKLE TO RIGHT CALIPER 130 MM
999
BRAKE BOOSTER ASSEMBLY
