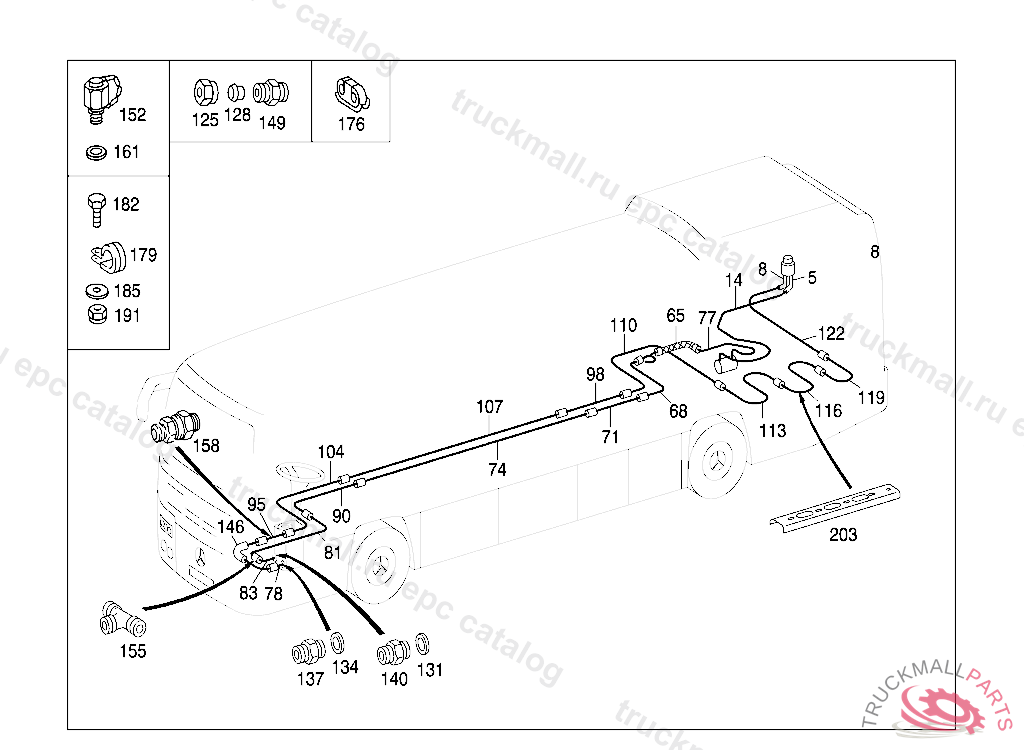

Поз.
Артикул
Описание
5
HOSE FROM LINE TO OIL TANK
8
HOSE AT OIL TANK
8
HOSE RETURN LINE TO OIL TANK,950226
14
LINE FROM TANK TO HOSE
65
HOSE , Replaced By: A0269972582
65
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
68
LINE FROM HOSE TO FITTING
68
LINE FROM CONNECTOR III TO HOSE
71
LINE FROM CONNECTOR II TO CONNECTOR III
74
LINE FROM CONNECTOR III TO CONNECTOR IV
77
LINE FROM POWER STEERING PUMP TO HOSE
77
LINE FROM POWER STEERING PUMP TO HOSE
78
LINE AT STEERING GEAR
81
LINE AT STEERING GEAR
81
LINE AT STEERING GEAR, AS OF PRODUCTION BREAKPOINT DATE 31.12.03
83
LINE AT STEERING GEAR
90
LINE NO.4-TO-NO.5-CONNECTING-POINT HIGH-PRESSURE OIL-LINE
95
LINE STEERING GEAR TO CONNECTING PIECE " V A ", AS OF PRODUCTION BREAKPOINT DATE 31.12.03
95
LINE FROM T-FITTING TO STEERING GEAR,074387
98
LINE FROM CONNECTOR VII TO CONNECTOR VIII 1800 MM, AS OF PRODUCTION BREAKPOINT DATE 31.12.03235007
98
LINE FROM CONNECTOR VII TO CONNECTOR VIII
104
LINE FROM T-FITTING TO CONNECTOR,074387
107
LINE FROM CONNECTOR VI TO CONNECTOR VII
110
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 31.12.03235007
110
LINE FROM CONNECTOR VIII TO TANK
113
LINE FROM CONNECTOR VIII TO TANK,237825
113
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 31.12.03235007
113
LINE FROM CONNECTOR VIII TO TANK,237824
116
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 31.12.03
116
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 24.06.04
116
LINE FROM CONNECTOR VIII TO TANK,237825
119
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 31.12.03235007
119
LINE FROM CONNECTOR VIII TO TANK,235008
119
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 24.06.04
122
LINE FROM CONNECTOR VIII TO TANK
122
LINE FROM CONNECTOR VIII TO TANK, AS OF PRODUCTION BREAKPOINT DATE 31.12.03KAO 538/03 , 10.06.03
125
NUT LINE CONNECTION
125
UNION NUT LINE CONNECTION, Replaced By: N000000006243
125
UNION NUT LINE MOUNTING
125
UNION NUT LINE CONNECTION
125
NUT LINE CONNECTIONS AL 15
125
NUT COMPRESSED AIR LINES
128
GLAND , Replaced By: A0019901267
128
GLAND , Replaced By: A0019901167
128
GLAND LINE CONNECTION
131
SEAL RINGTO 006 997 00 72
134
SEAL RING SOLENOID VALVE A 18X24
134
SEAL RING VALVE TO VALVE,K 025179
137
SCREW-IN FITTING , Replaced By: N003901015005
140
FITTING DELIVERY LINE TO STEERING GEAR,087560
146
HOSE STEERING GEAR TO CONNECTING PIECE " V A ", AS OF PRODUCTION BREAKPOINT DATE 31.12.03
149
CONNECTION FITTING , Replaced By: N003902018002
149
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
152
TEST CONNECTION AT STEERING GEAR
152
TEST CONNECTION DELIVERY LINE TO STEERING GEAR
152
TEST CONNECTION
155
FITTING
158
VALVE (CHECK VALVE),V 207570
161
SEAL RING , Replaced By: N007603010110
176
GROMMET LINE MOUNTING
179
CLAMP DELIVERY AND SUCTION LINES TO FRAME
179
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
179
CLAMP LINE MOUNTING
179
CLAMP BRAKE HOSE BRACKET
179
CLAMP LINE MOUNTING
179
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
179
CLAMP PIPE ON FAN SHROUD
179
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
182
SCREW , Replaced By: N914146006102
182
SCREW DISTRIBUTOR TO CAB
182
SCREW OVERLOAD PROTECTOR TO BRACKET
182
SCREW BEARING BRACKET TO TRANSMISSION
182
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
182
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
185
WASHER6,4
191
NUT HEATING PIPE TO BRACKET
203
BRACKET LINE TO SUBSTRUCTURE
