Поз.
Артикул
Описание

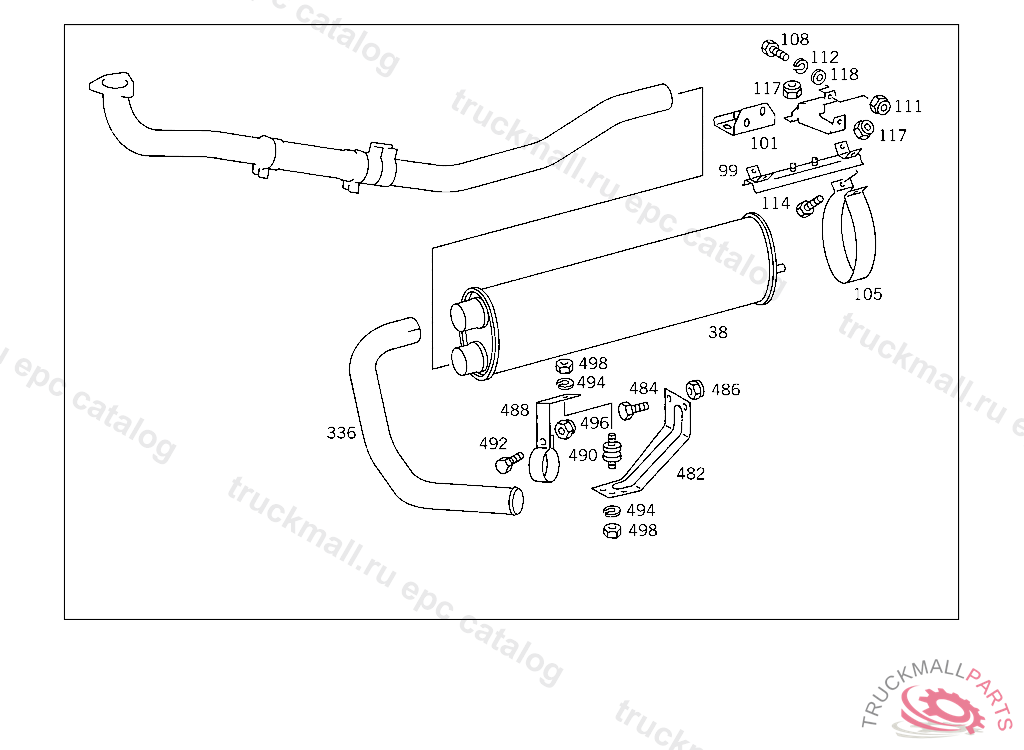

38
EXHAUST MUFFLER , TO BE ADAPTED DURING ASSEMBLY
99
SUPPORT EXHAUST MUFFLER TO BRACKET
99
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
101
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
101
BRACKET EXHAUST MUFFLER TO BRACKET
105
BRACKET EXHAUST MUFFLER
105
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6524903740
105
STRAP EXHAUST MUFFLER TO SIDE MEMBER
105
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,5 543914
105
BRACKET , Replaced By: A6744914541
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
108
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
108
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
108
SCREW BRACKET TO SIDE MEMBER M 14X40
108
SCREW , Replaced By: N308676014020
108
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
111
NUT BRACKET TO SIDE MEMBER
111
NUT PARTICLE FILTER M14
111
NUT , Replaced By: N910113014001
112
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
114
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
114
SCREW BRACKET TO SIDE MEMBER
114
SCREW , Replaced By: N910105010009
117
NUT EXHAUST PIPE TO SIDE MEMBER
117
NUT STRAP TO BRACKET
117
NUT , Replaced By: N910113010000
118
WASHER BRACKET TO SIDE MEMBER,5 703114
336
END PIECE
482
SUPPORT TAIL PIPE
484
SCREW BRACKET TO SIDE MEMBER
484
SCREW , Replaced By: N304017010002
486
NUT , Replaced By: N910113010000
486
NUT STRAP TO BRACKET
488
BRACKET TAIL PIPE
490
RUBBER BUFFER BRACKET TO SUPPORT
492
SCREW BRACKET TO SIDE MEMBER
492
SCREW , Replaced By: N304017010002
494
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
496
NUT STRAP TO BRACKET
496
NUT , Replaced By: N910113010000
498
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW BRACKET TO BRACKET
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP , Replaced By: N071555090502
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
CLAMP EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
CONNECTOR ,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET , Replaced By: A3464910441
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET TAIL PIPE TO SIDE MEMBER,5 760772
999
END PIECE (TAIL PIPE)
999
CONNECTOR ,5 953233K 035196
999
END PIECE (TAIL PIPE),5 5975185 758825
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE)
999
END PIECE TAIL PIPE
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT,5 484828
999
END PIECE RIGHT
999
BRACKET
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),5 564478
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE (TAIL PIPE),5 597517
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE TAIL PIPE,FRONT,K 027551
999
SUPPORT TAIL PIPE
999
END PIECE RIGHT
999
END PIECE (TAIL PIPE)
999
SUPPORT TAIL PIPE
999
END PIECE LEFT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
999
EXHAUST PIPE FRONT
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
EXHAUST PIPE ,5 953233
999
EXHAUST MUFFLER (POSTERIOR MUFFLER)
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
CLAMP HEAT SHIELD TO TAILPIPE
999
STRAP , Replaced By: A6524900442
999
BRACKET , Replaced By: A6205240140
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET COVERING
999
SPACER TUBE , Replaced By: A3140720253
999
FLEXIBLE METAL TUBE CONNECTOR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET , Replaced By: A6524921441
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
END PIECE
999
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET , Replaced By: A6174926341
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
999
SUPPORT EXHAUST PIPE
999
SUPPORT EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
999
CLAMP EXHAUST PIPE TO SUPPORT
999
SUPPORT REAR EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,5 543913
999
PROTECTIVE PLATE (HEAT SHIELD)
999
SUPPORT REAR EXHAUST MUFFLER
999
END PIECE
999
BRACKET EXHAUST MUFFLER TO SUPPORT
999
END PIECE REAR EXHAUST PIPE,5 298310
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE , Replaced By: A6524926714
999
SUPPORT TAIL PIPE
999
BRACKET TAIL PIPE
999
CLAMP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
PROTECTIVE PLATE
999
SUPPORT REAR EXHAUST PIPE TO FRAME,4 613840
999
DAMPING PAD PARTICLE FILTER
999
SUPPORT EXHAUST PIPE
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE
999
SCREW , Replaced By: N910142008001
999
NUT BRACKET TO BRACKET
