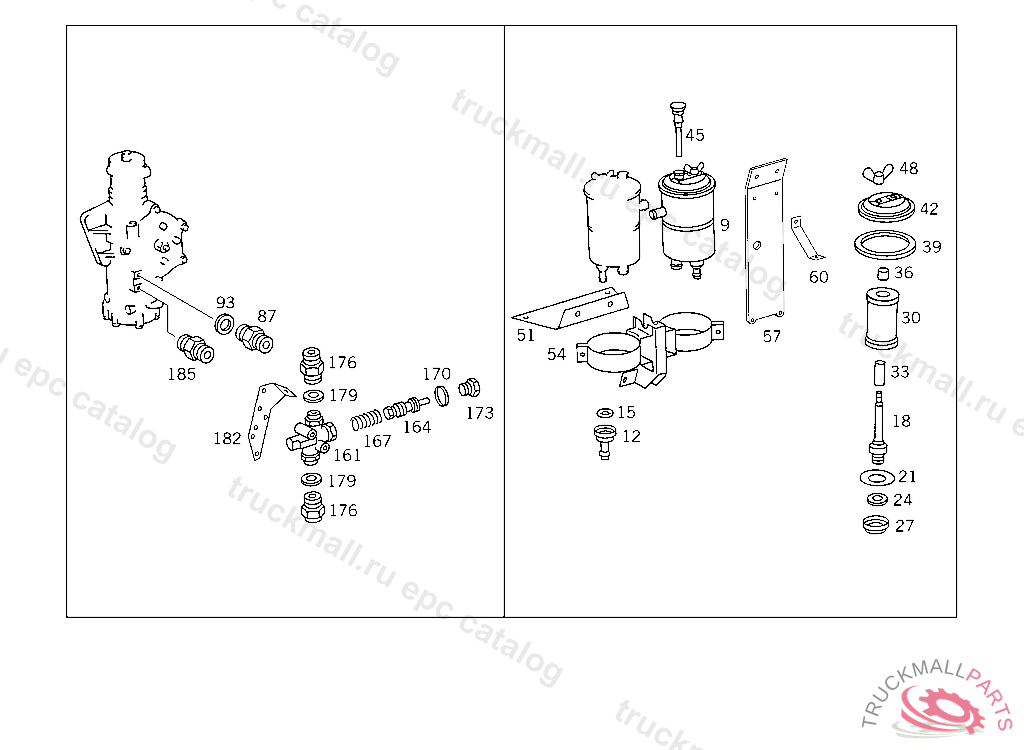

Поз.
Артикул
Описание
9
TANK OIL
12
CONNECTORTO 000 466 38 02
15
SEAL RINGTO 000 466 38 02
18
SUPPORT FILTER ELEMENT
21
SPRING BRAKE ANCHOR
24
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
27
VALVE DISC , 993034
30
FILTER , 993034
33
SPACER TUBE OIL FILTER
36
RUBBER SLEEVETO 000 466 38 02
39
SEAL RINGTO 000 466 38 02
42
COVERTO 000 466 38 02
45
OIL DIPSTICK
48
NUTTO 000 466 38 02
51
SUPPORT , Replaced By: A6254661143
51
BRACKET OIL TANK
54
BRACKET , Replaced By: A6254601935
54
BRACKET OIL TANK
57
BRACKET OIL TANK, TO BE ADAPTED DURING ASSEMBLY
60
BRACKET OIL TANK
87
FITTING DELIVERY LINE TO OIL PUMP,CIRCUITS I & II
93
SEAL RING LINE CONNECTION
161
VALVE PRESSURE LIMIT,CIRCUIT II 150 BAR
164
PISTON
167
SPRING
170
SEAL RING
173
SCREW PLUG
176
FITTING
179
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
182
BRACKET PRESSURE LIMIT VALVE
185
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
999
BRACKET OIL TANK
