Поз.
Артикул
Описание

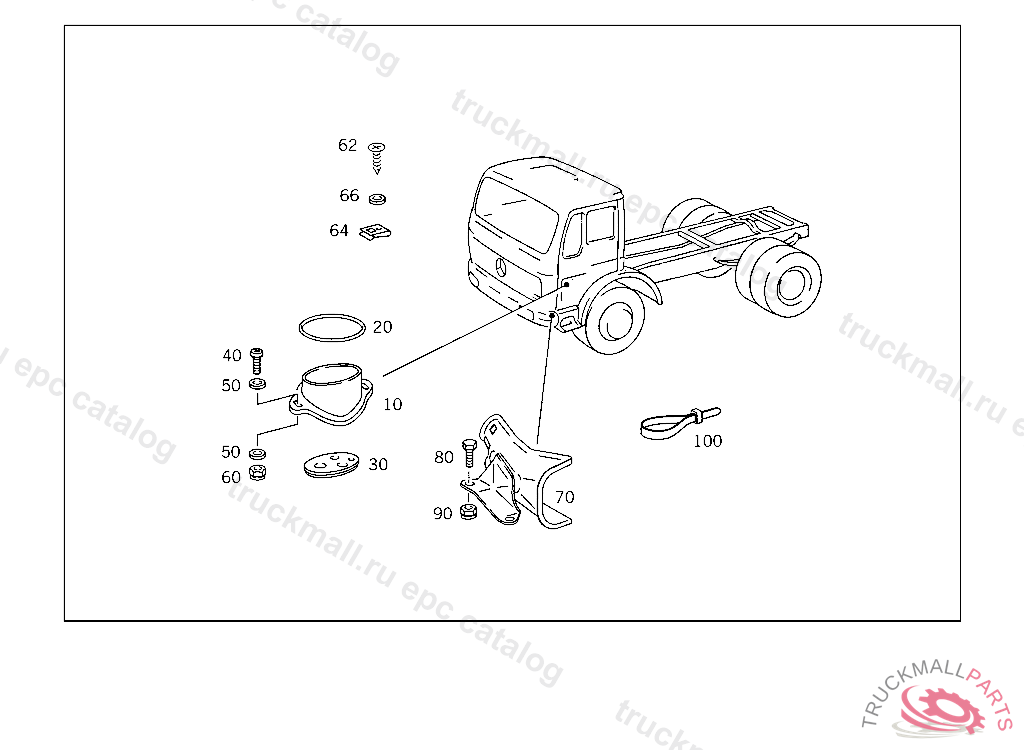

10
BRACKET CABLE HARNESS MOUNTING
10
BRACKET CABLE HARNESS MOUNTING
20
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
30
GASKET BRACKET
40
SCREW CLAMP MOUNTING M 6X16
40
SCREW , Replaced By: N000000001146
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
WASHER COMPRESSED AIR LINE TO BRACKET
60
NUT PUMP TO BRACKET
60
NUT , Replaced By: N913004006001
62
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
62
TAPPING SCREW BRACKET TO CAB FLOOR
64
LOCK ELECTRIC CABLE THRU CAB FLOOR
66
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
66
WASHER , Replaced By: N009021005205
70
BRACKET , Replaced By: A6204201686
70
BRACKET , Replaced By: A6204201586
70
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
70
BRACKET LEFT
70
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY
70
BRACKET RIGHT
80
SCREW BRACKET TO BUMBER STRUT
90
NUT , Replaced By: N913004008001
90
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
LOOM TIE LINE MOUNTING
