Mercedes A0034319506 - Главный тормозной кран

CONECTO 18 M 628.320

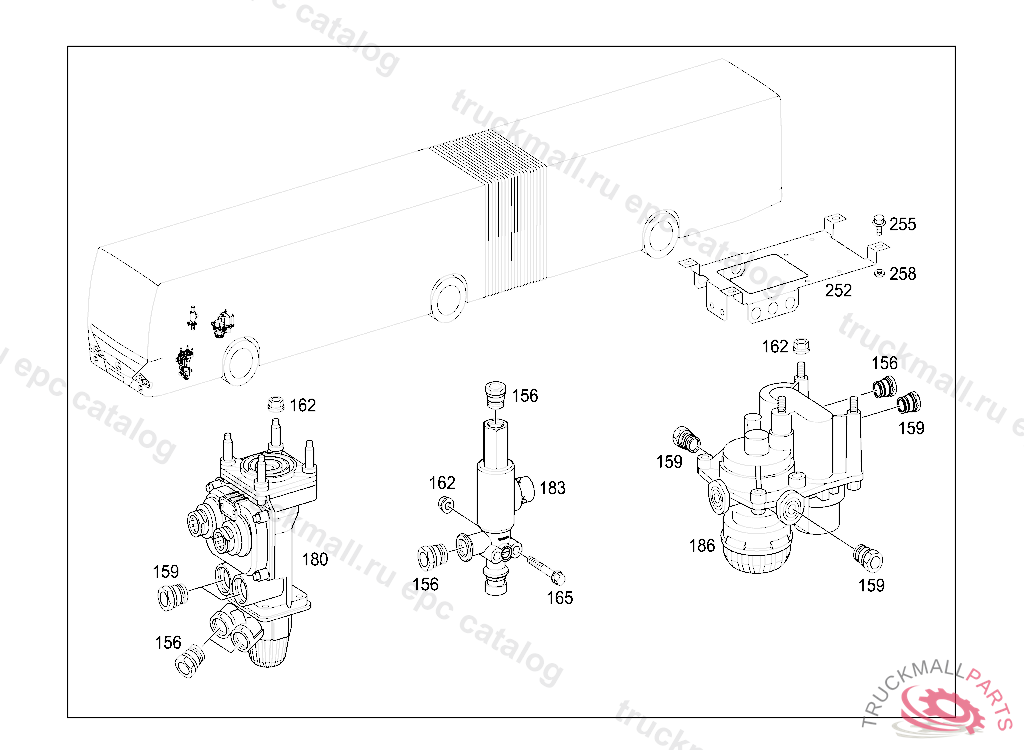

42 BRAKES - 380 SERVICE BRAKE VALVE,RELAY VALVE, TWO-WAY VALVE IL. 3
  • Поз.
    Артикул
    Описание
  • 156
    UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
  • 159
    UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
  • 159
    RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
  • 162
    NUT HORN TO BRACKET M8
  • 165
    SCREW 3/2-WAY VALVE TO BRACKET
  • 165
    SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
  • 180
    BRAKE VALVE
  • 183
    VALVE (3/2-WAY SOLENOID VALVE)
  • 186
    PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
  • 252
    BRACKET
  • 255
    SCREW BRACKET TO CAB REAR PANEL M 8X20
  • 255
    SCREW BRACKET TO SIDE MEMBER M8X20
  • 258
    WASHER BRACKET TO CAB REAR PANEL
