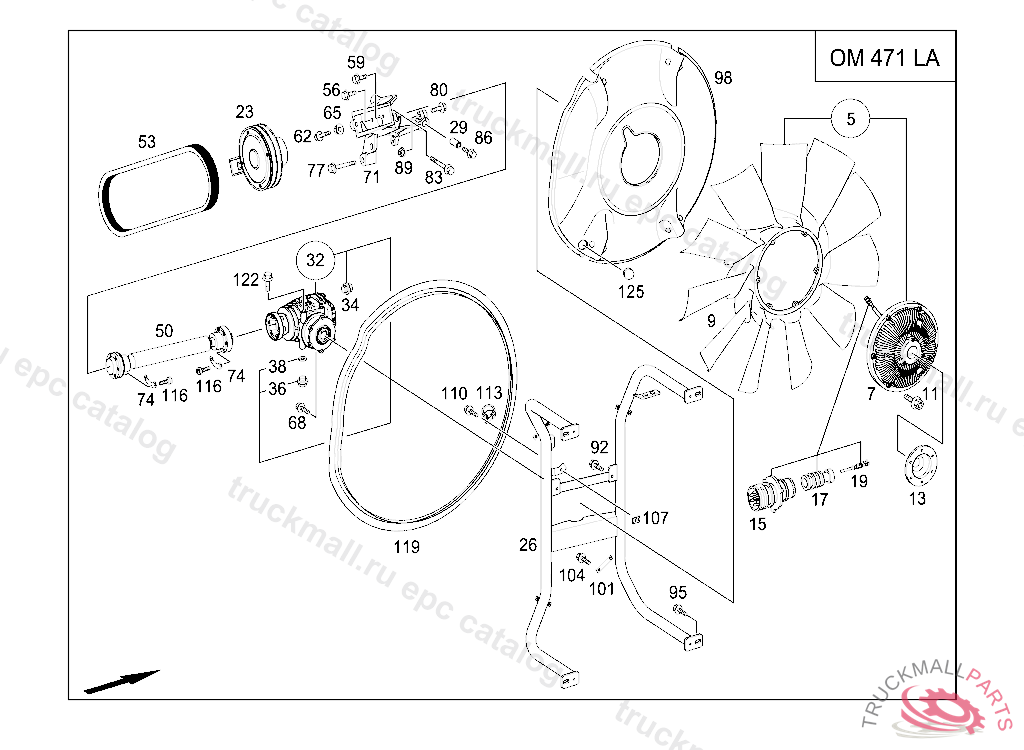

Поз.
Артикул
Описание
5
VISCOUS FAN
7
VISCOUS CLUTCH
9
FAN WHEEL
11
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
13
PLUG 6-POLE, INEVENT OF REPAIR, REPLACE CONNECTOR COMPLETELY
15
PIN CONTACT
17
WIRE SEAL
17
GASKET. BLIND PLUG
19
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
23
BELT TIGHTENER PULLEY
23
TENSIONER PULLEY , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)20.01.2012
26
SUPPORTING FRAME
29
THREADED BUSHING WITH EXTERNAL THREAD
32
FAN DRIVE
34
SCREW PLUG
36
SCREW PLUG WITH MAGNET
38
SEALING RING
50
SHAFT
53
V-BELT
56
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
59
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
62
HEXAGON HEAD BOLT SHOCK ABSORBER TO CONSOLE,BOTTOM M12X1.5X80
65
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
68
SCREW BRACKET TO CAB REAR PANEL M 8X20
71
BEAM
74
WASHER PLANE-PARALLEL
77
HEXAGON HEAD BOLTM16X1.5X110
80
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
83
HEXAGON HEAD BOLT TORSION BAR TO SHACKLE M12X1,5X110MM
86
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
89
NUT , Replaced By: N913023010002
92
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
95
SCREWM 10X20
98
COVER
101
CLAMPING PLATE
104
HEXAGON HEAD BOLT
107
LOCK NUT. SPRING NUT MOUNTING PARTS
110
SCREW , Replaced By: N914146006102
113
CLAMP22/15, Replaced By: A0019951442
113
MOUNTING CLAMP22/15
116
HEXALOBULAR BOLT WITH HEXALOBULAR SOCKET M8X40
119
APEX SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
122
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
125
GROMMET
