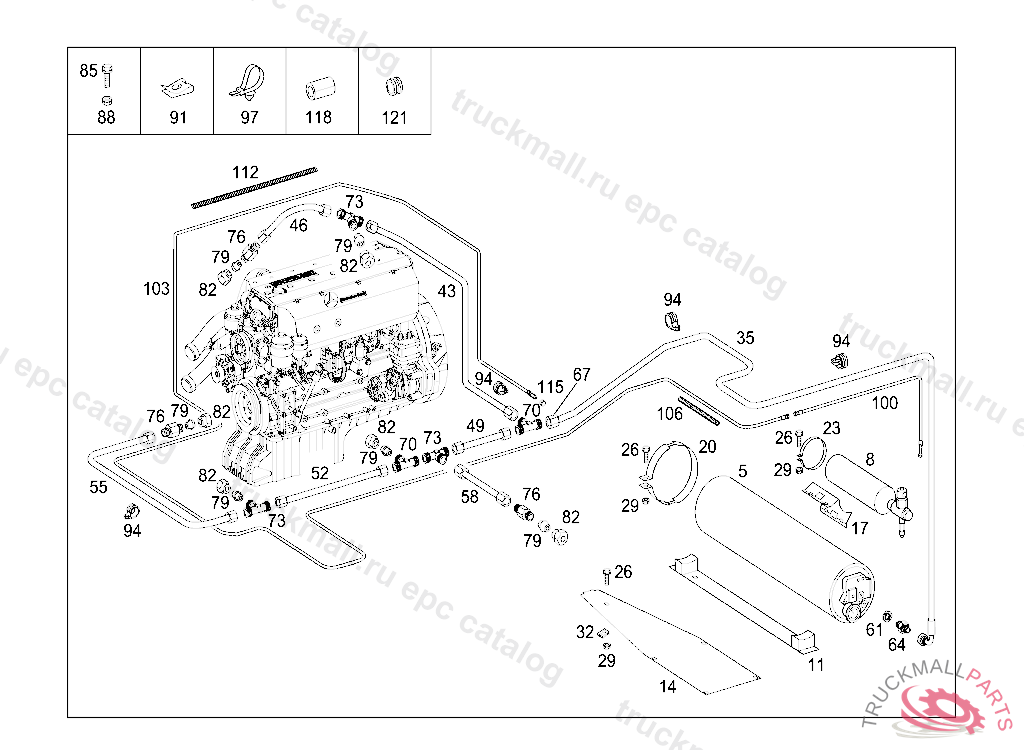

Поз.
Артикул
Описание
5
WATER CONTAINER EXTINGUISHING AGENT 6,5 L
5
RESERVOIR EXTINGUISHING AGENT 6.5 L
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
8
PRESSURE TANK EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
11
BRACKET
14
PLATE
17
CONSOLE
20
STRAP
23
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
26
SCREW BRACKET TO SIDE MEMBER M8X20
26
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
29
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
32
SPRING-THREAD NUT PROTECTIVE PLATE
35
HOSE
43
PIPE LINE EXTINGUISHING AGENT LINE
46
PIPE LINE EXTINGUISHING AGENT LINE
49
PIPE LINE EXTINGUISHING AGENT LINE
52
PIPE LINE EXTINGUISHING AGENT LINE
55
PIPE LINE EXTINGUISHING AGENT LINE
58
PIPE LINE
61
SEAL WASHER
64
THREADED UNION
67
COUPLING
70
T-FITTING
73
T-FITTING
76
FITTING
79
SPRAY NOZZLE
82
NUTM 14 X 1,5AL
85
SCREW , Replaced By: N910143008000
85
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
88
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
88
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
91
LOCK NUT. SPRING NUT MOUNTING PARTS
94
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
94
CLAMP CABLE HARNESS MOUNTING
94
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
97
CABLE TIE310X5MM
97
CABLE STRAP LINE MOUNTING 260X3.3MM
100
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
103
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
106
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
112
SPRING4940 LG.
115
TEST CONNECTION
115
PLUG
118
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
121
GROMMET
