Mercedes A0109972681 - Резиновый наконечник

S 417 HDH MODELLPFLEGE 629.627

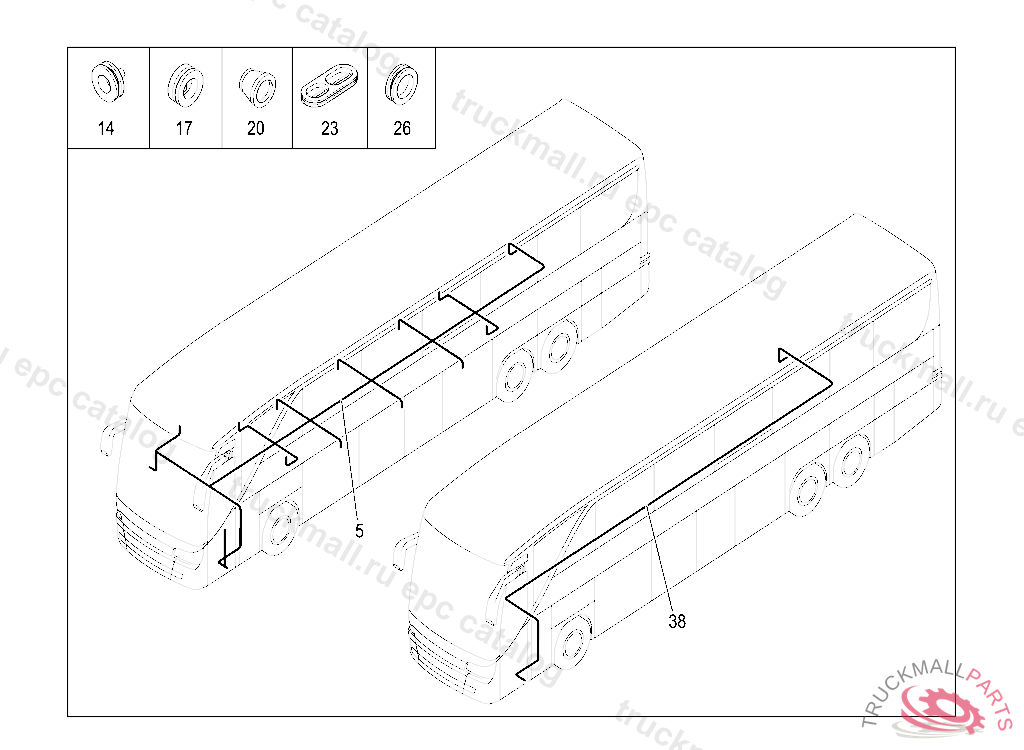

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 148 MAIN CABLE HARNESS
  • Поз.
    Артикул
    Описание
  • 5
    CABLE HARNESS SUBSTRUCTURE
  • 5
    ELECTRICAL WIRING HARNESS SUBSTRUCTURE, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.11.2012
  • 5
    ELECTRICAL WIRING HARNESS SUBSTRUCTURE, AS OF PRODUCTION BREAKPOINT DATE 06.08.2009 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.10.2012
  • 5
    ELECTRICAL WIRING HARNESS SUBSTRUCTURE, Replaced By: A6295403710
  • 14
    GROMMET
  • 17
    GROMMET
  • 20
    GROMMET FOR CABLE HARNESS DIA.: 14-20MM
  • 23
    GROMMET
  • 26
    RUBBER RING I.D., / O.D., 12 / 21MM
  • 38
    ELECTRICAL WIRING HARNESS DATA BUS, Replaced By: A6295404110
  • 38
    CABLE HARNESS DATA BUS
  • 38
    ELECTRICAL WIRING HARNESS DATA BUS, AS OF PRODUCTION BREAKPOINT DATE 06.08.2009
