Поз.
Артикул
Описание
5

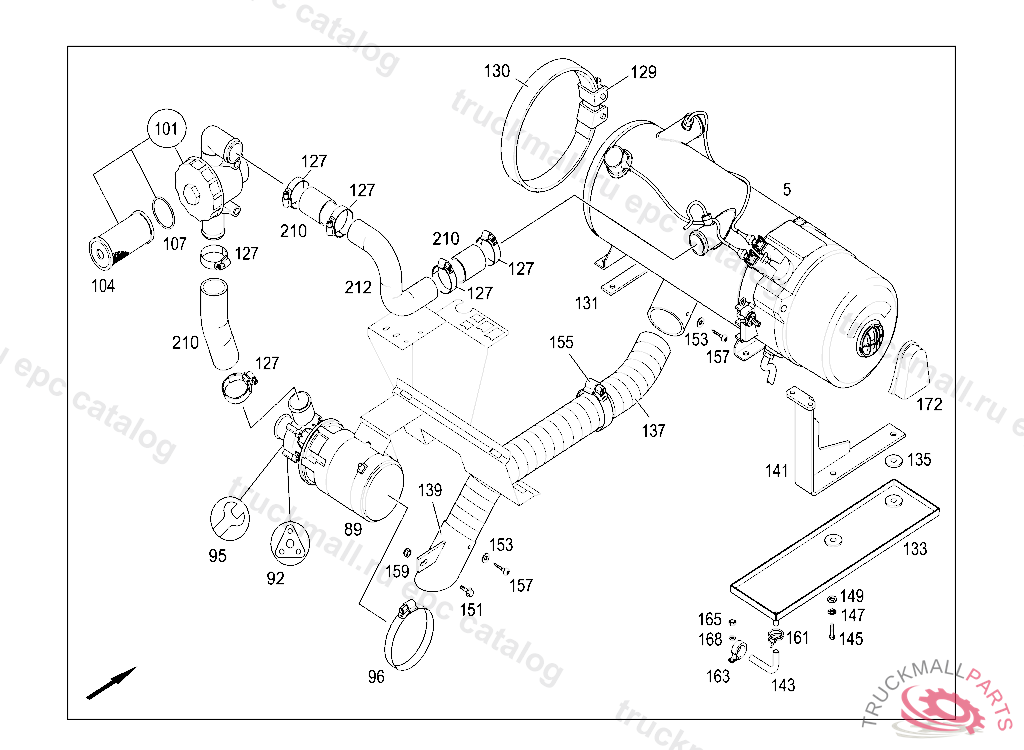

BASIC HEATERWEBASTO, THERMO 300
5
HEATERSPHEROS,THERMO S300, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
89
PUMP CIRCULATION PUMP 2,U4856
89
PUMP , Replaced By: A0028352964
92
GASKET KIT REPAIR KIT
95
REPAIR KIT PUMP COVER
96
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
101
WATERFILTER
104
FILTER
107
SEAL
107
SEAL RINGTO A 000 832 20 72, Replaced By: A0018358398
127
CLAMP
129
TURNBUCKLE
130
STRAP , Replaced By: A0008310379
130
RETAINING STRAP
131
PAD
133
DRAINING PAN
135
RUBBER RING , FROM IDENT NO. 089584 ALSO INSTALLED ON 089633,089658
137
HOSE , Replaced By: A0008356397
137
HOSE ASSEMBLY
139
PIPE SOCKET STRAIGHT
141
BRACKET
143
FUEL HOSE. HOSEB5,5-2,5,WEB 629012 13 520122 ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
145
SCREW , Replaced By: N910143008002
147
LOCK LEVER TO TRANSMISSION
149
WASHER PUMP TO CONSOLE
151
SCREW BRACKET AND CLAMP M6X20
153
WASHER
155
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
157
TAPPING SCREW MOUNTING PARTS 4.8X16
159
NUT BRACKET TO FIRE WALL
161
HOSE CLAMP. HOSE CLAMP
163
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
163
CLAMP
165
NUT , Replaced By: N913023006001
168
LOCK
172
SPLASH GUARD. CAP
210
HOSE
212
HOSE
999
CABLE TIE310X5MM
999
HOSE
999
WARNING SIGN , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.01.2011
