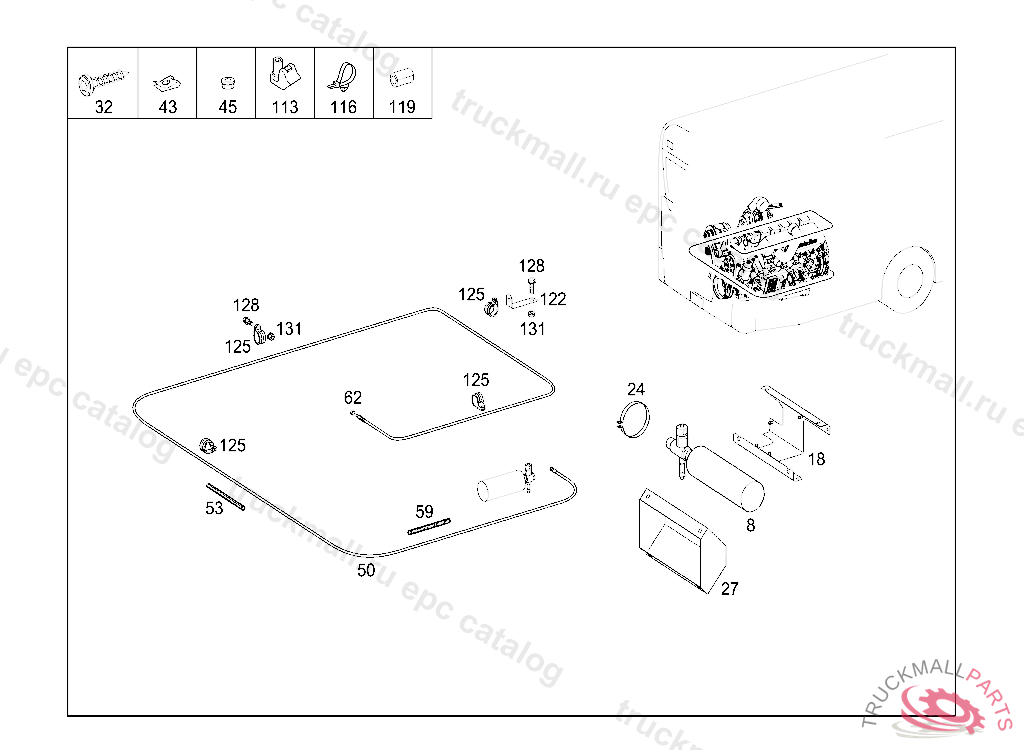

Поз.
Артикул
Описание
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
PRESSURE TANK EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT
8
PRESSURE AGENT CONTAINER EXTINGUISHING AGENT ANSCHL. 90 GRAD2DR. SCHALTER
18
CONSOLE
24
CLAMP
27
BOX HOUSING
32
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
32
SHEET METAL SCREW BRACKET TO SUPPORT
43
LOCK NUT. SPRING NUT MOUNTING PARTS
43
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
43
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
43
SPRING-THREAD NUT PROTECTIVE PLATE
45
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
45
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
50
DETECTOR TUBE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
53
SPRING , TO BE ADAPTED DURING ASSEMBLY
53
SPIRAL SPRING , TO BE ADAPTED DURING ASSEMBLY
59
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
PLUG
62
TEST CONNECTION
113
RETAINING CLIP
116
CABLE STRAP ELECTRIC CABLE TO FIRE WALL 300X5.0MM
116
CABLE TIE310X5MM
119
EDGE GUARD SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
122
BRACKET
125
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
125
CLAMP38/20
125
CLAMP LINE MOUNTING 8/15
125
CLAMP
128
SCREW , Replaced By: N910143008000
128
SCREW , Replaced By: N914146006102
131
NUT , Replaced By: N913023006001
131
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
