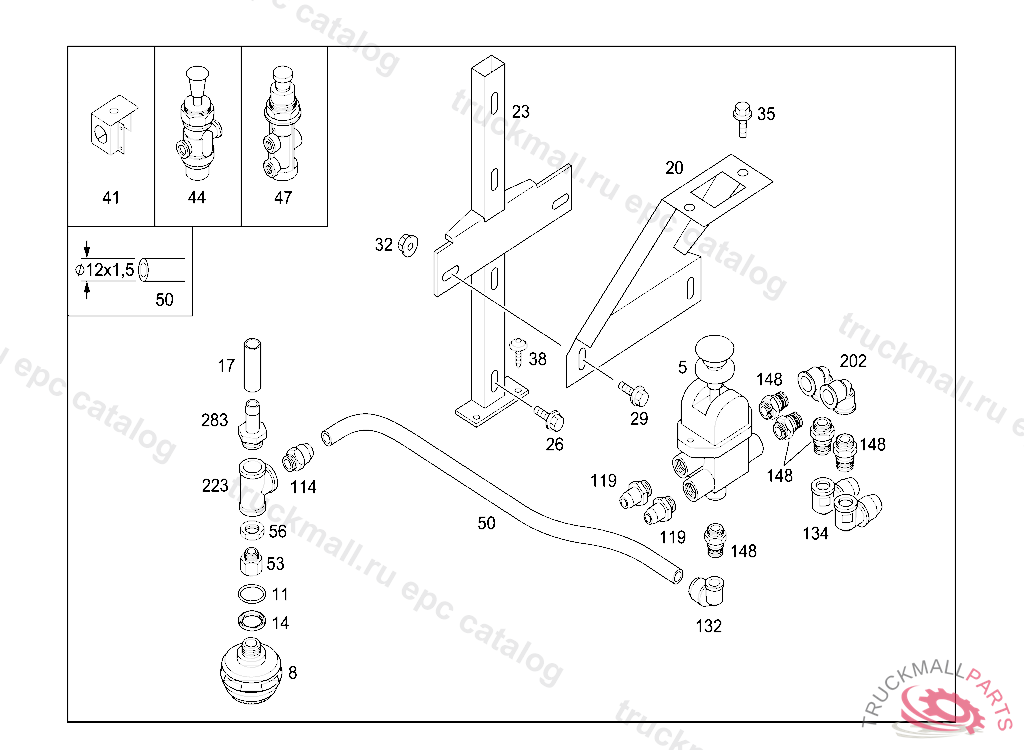

Поз.
Артикул
Описание
5
VALVE PARKING BRAKE WITH EMERGENCY RELEASE DEVICE, LESS TRAILER CONTROL KNORR, 14.08
8
MUFFLER TRAILER CONTROL VALVE
11
SEAL RING20.3X2.4
14
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
14
THRUST RING CHECK VALVE TO AIR RESERVOIR
17
HOSE TRANSPARENT D20X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
BRACKET (PARKING BRAKE VALVE)
23
BRACKET
26
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
26
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
29
SCREW BRACKET TO CAB REAR PANEL M 8X20
29
SCREW BRACKET TO SIDE MEMBER M8X20
32
NUT HORN TO BRACKET M8
35
SCREW SPEED SENSOR TO REAR AXLE
35
SCREW , Replaced By: N910143008000
38
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
41
BRACKET VERSION SWEDEN
44
VALVE LOCKING VALVE S
47
VALVE PRESSURE VALVE S
50
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
53
FITTING AT AIR RESERVOIR
114
FITTING12X1.5/M22X1.5 RAUFOSS
119
FITTING8X1/M16X1.5 RAUFOSS
132
ELBOW FITTINGP5/12X1.5/90GR
134
ELBOW FITTINGP5/8X1MM/90GR
148
FITTINGP5/M16X1.5
202
PIPE BENDP5/M16X1.5 RAUFOSS
223
T-FITTINGM22X1.5/M22X1.5/M22X1.5 RAUFOSS
283
CONNECTORM22X1.5/16X2 RAUFOSS
