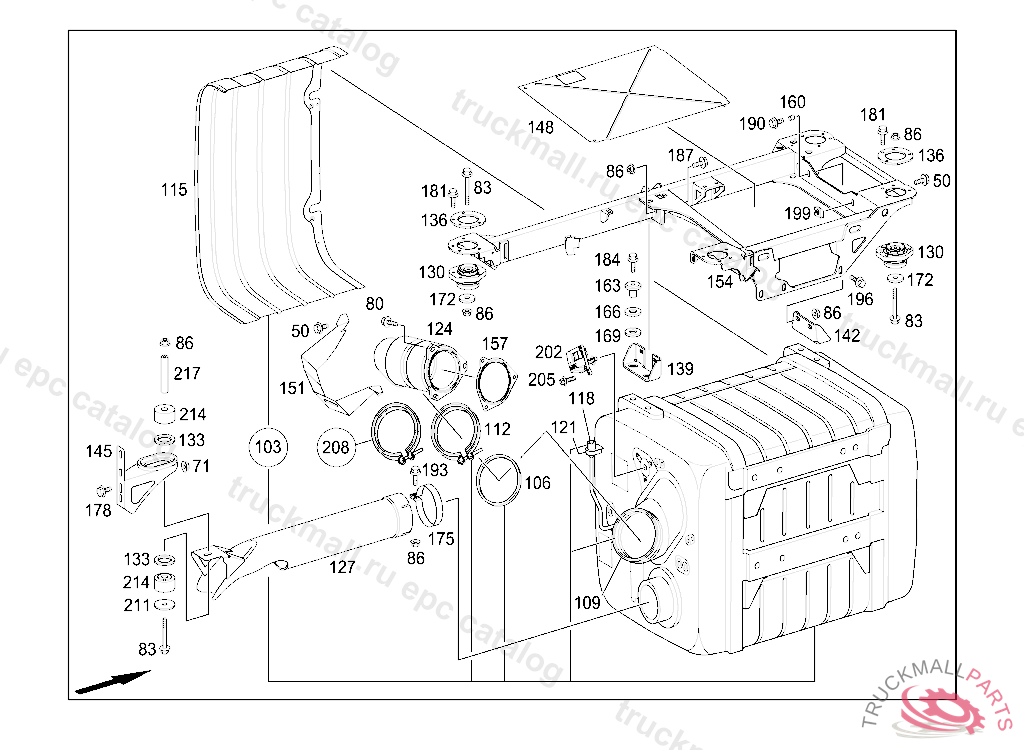

Поз.
Артикул
Описание
50
SCREW , Replaced By: N910143008000
71
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
80
HEXAGON HEAD BOLTM10X35
80
BOLT W FLANGE
83
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
86
NUT , Replaced By: N913023010002
103
EXHAUST AFTERTREATMENT
103
EXHAUST AFTERTREATMENT
106
SEAL. RING F EXHAUST SYS.
109
CLAMPING COLLAR
112
PROFILE CLAMP F EXHAUST
115
COVER
118
TEMPERATURE SENSOR
118
TEMPERATURE SENSOR
121
MOUNTING BRACKET
124
EXHAUST PIPE
124
EXHAUST PIPE
127
TAILPIPE
130
DAMPER ELEMENT
133
THRUST WASHER
136
REINFORCEMENT
139
ATTACHMENT ANGLE BRACKET
142
ATTACHMENT ANGLE BRACKET
145
BRACKET
148
HEAT SHIELD
151
HEAT SHIELD
154
BEAM
157
MULTI-LAYER METAL SEAL
160
SPACER SLEEVE
163
COLLARED BUSHING
166
SHIM FIFTH WHEEL COUPLING ON ANGLE
169
DISK SPRING
172
WASHER BATTERY CASE TO SIDE MEMBER
175
CLAMP TAIL PIPE TO EXHAUST MUFFLER
178
SCREW BRACKET TO CAB REAR PANEL M 8X20
181
SCREW SHIFT LEVER TO BRACKET M8X30
184
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
187
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
190
SCREW BRACKET TO SIDE MEMBER M10X35
193
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
196
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
199
SPRING-THREAD NUT PROTECTIVE PLATE
202
METERING EQUIPMENTADBLUE
202
METERING UNITADBLUE
205
SCREW W RND. HEXAL. HEADM6X20
208
TS PIPE CLAMP
211
WASHER50X11X3MM
214
BUFFER
217
SPACER TUBE
