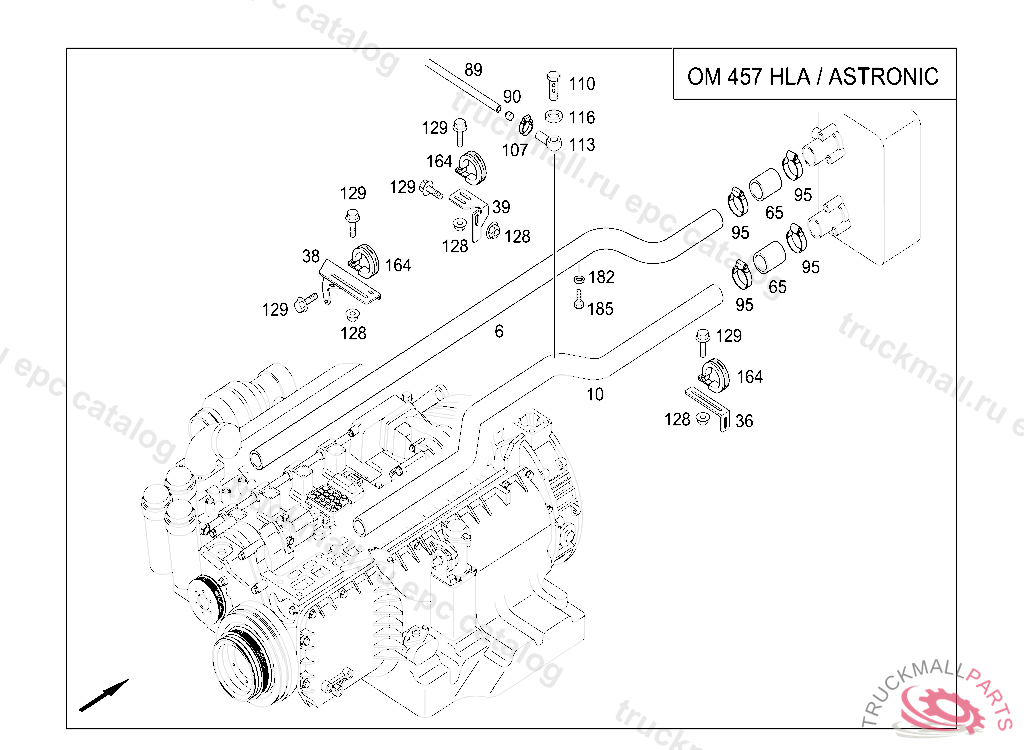

Поз.
Артикул
Описание
6
LINE FEED LINE
10
LINE RETURN LINE
36
BRACKET130X70X5MM
38
BRACKET
38
BRACKET
39
BRACKET
65
HOSE COOLING WATER LINE TO COOLING WATER LINE
65
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
65
HOSE RETURN, FROM RETARDER TO ENGINE
89
HOSE10X19X370
90
ADAPTOR SOCKETS
95
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
107
CLAMP HOSE TO FITTING 11 - 20 MM
110
HOLLOW SCREW
113
BANJO UNION10/14
116
SEAL RINGTO 000 553 03 05,000 553 18 05,
116
SEAL RING INJECTION PUMP
128
NUT , Replaced By: N913023010002
129
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
164
CLAMP60/25RSGU
164
CLAMP60/25MM, Replaced By: N000000006126
182
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
185
SCREW PLUGROCKINGER,TYP 59 U150
