Mercedes N308676018010 - Болт

1733 S/LS,1834 S 652.161

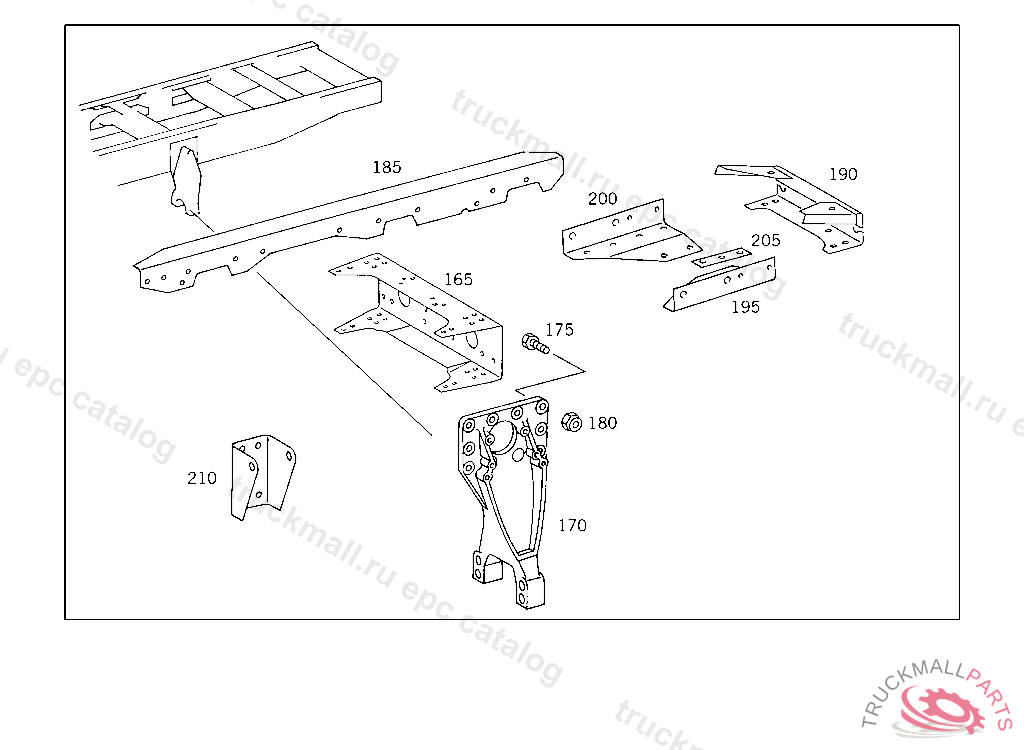

31 FRAME - 001 FRAME USED WITH REAR AXLE AIR SPRING SUSPENSION IL.3
  • Поз.
    Артикул
    Описание
  • 165
    CROSS MEMBER CENTRAL BEARING
  • 170
    BEARING BODY LONGITUDINAL CONTROL ARM, TO BE ADAPTED DURING ASSEMBLY
  • 175
    SCREW , Replaced By: N308676018010
  • 175
    FITTED SCREW SUPPORT AND SHIM TO SIDE MEMBER M 18X105
  • 175
    FITTED SCREW SUPPORT AND SHIM TO SIDE MEMBER M 18X65,K 103912
  • 175
    SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
  • 180
    NUT TORSION BAR TO BEARING BRACKET,5 904661
  • 185
    ANGLE SADDLE PLATE,LEFT,K 103913 TO BE ADAPTED DURING ASSEMBLY
  • 185
    ANGLE SADDLE PLATE,RIGHT,K 103913 TO BE ADAPTED DURING ASSEMBLY
  • 190
    CROSS MEMBER (REAR CROSS MEMBER)
  • 190
    CROSS MEMBER , Replaced By: A6553120335
  • 195
    GUSSET PLATE LEFT, TO BE ADAPTED DURING ASSEMBLY
  • 200
    GUSSET PLATE RIGHT, TO BE ADAPTED DURING ASSEMBLY
  • 205
    SHIM CROSS MEMBER TO SIDE MEMBERS,K 103913
  • 210
    BRACKET SHOCK ABSORBER,TOP,K 103913
