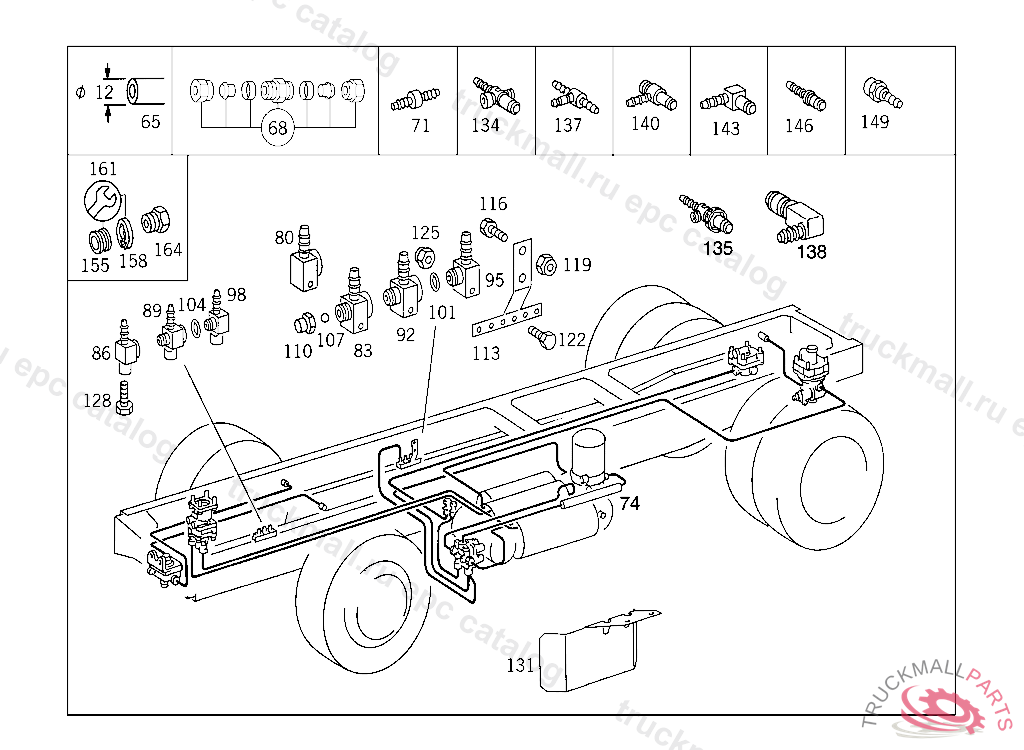

Поз.
Артикул
Описание
65
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
65
HOSE , Replaced By: A0009872827
68
FITTING (PARTS KIT),LINE RUPTURE
71
CONNECTOR REPAIR SIZE
74
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
80
CONNECTOR DISTRIBUTOR TO FRAME
80
CONNECTOR , Replaced By: A0019903978
83
CONNECTOR HOSE WIDTH, 9 MM,TO M22
86
CONNECTOR DISTRIBUTOR TO CAB
89
CONNECTOR DISTRIBUTOR TO CAB
92
CONNECTOR DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION, WITH THROTTLE
95
CONNECTOR DISTRIBUTOR TO FRAME
98
CONNECTOR DISTRIBUTOR TO CAB
101
SEAL RING CONNECTOR 11.8X2 MM
101
SEAL RING , Replaced By: A0229973948
104
SEAL RING
113
BRACKET CONNECTOR TO FRAME
116
SCREW , Replaced By: N304017012020
116
SCREW END PIECE TO EXHAUST PIPE M 12X30
119
NUT END PIECE TO EXHAUST PIPE
122
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
125
NUT PUMP TO BRACKET
125
NUT , Replaced By: N913004006001
128
SCREW EXHAUST BRAKE SEPARATION POINT
134
DISTRIBUTOR LINE CONNECTION
135
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
137
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
138
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
140
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
146
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
149
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
155
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
158
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
161
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
164
SCREW. UNION SCREW LINE CONNECTION
