Поз.
Артикул
Описание

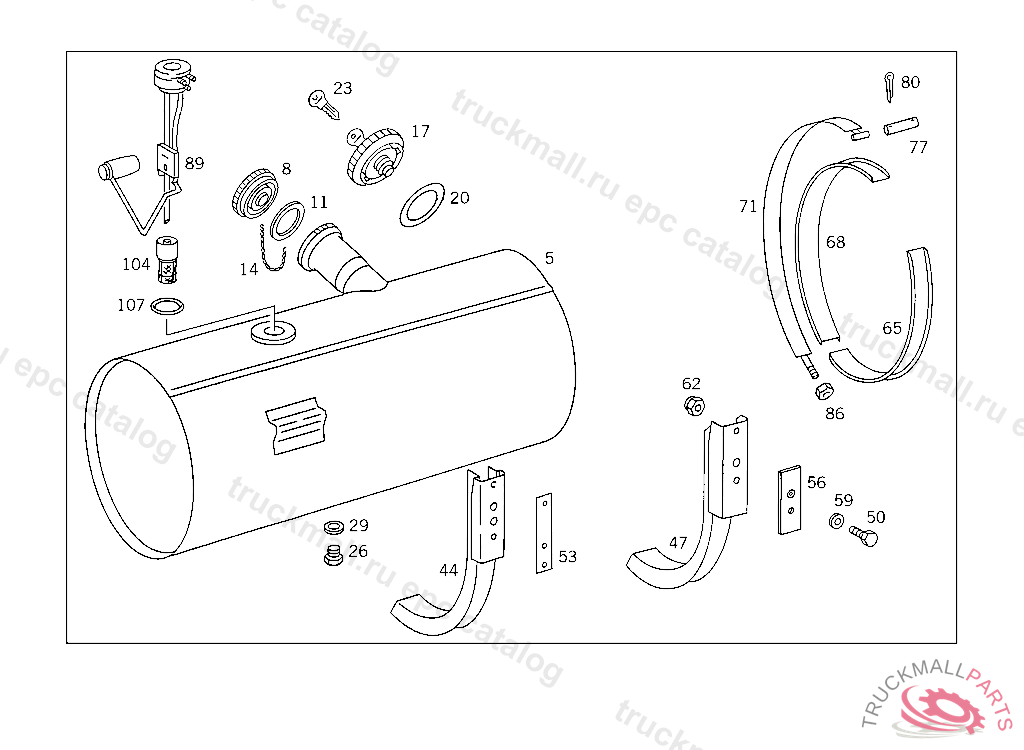

5
FUEL TANK
8
FILLER CAP
8
FILLER CAP , Replaced By: A0004700305
11
SEAL RING
14
CHAIN FILLER CAP
17
FILLER CAP LESS BREATHING
17
FILLER CAP LESS BREATHING
17
FILLER CAP LESS BREATHING
17
FILLER CAP , Replaced By: A0004718430
20
SEAL RING
20
SEAL RING
20
SEAL RING , Replaced By: A3049970340
23
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
23
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
26
SCREW PLUG FUEL TANK
26
SCREW PLUG , Replaced By: N007604014110
29
SEAL RING FUEL LINE TO FEED PUMP
44
SUPPORT FUEL TANK
47
SUPPORT FUEL TANK
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N000961014064
50
SCREW SUPPORT TO SIDE MEMBER M 14X45
50
SCREW , Replaced By: N308676014012
56
BASE FROM RUBBER HOSE TO FUEL PUMP
59
WASHER SPARE WHEEL CARRIER
62
NUT STEERING SUPPORT TO FRAME
62
NUT , Replaced By: N910113014000
65
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
68
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
71
STRAP FUEL TANK
77
PIN STRAP TO SUPPORT
80
COTTER PIN STRAP TO SUPPORT
86
NUT SUPPORT TO SIDE MEMBER
104
FUEL STRAINER FUEL TANK,K 169123
104
FUEL STRAINER FUEL TANK,K 169122
107
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
