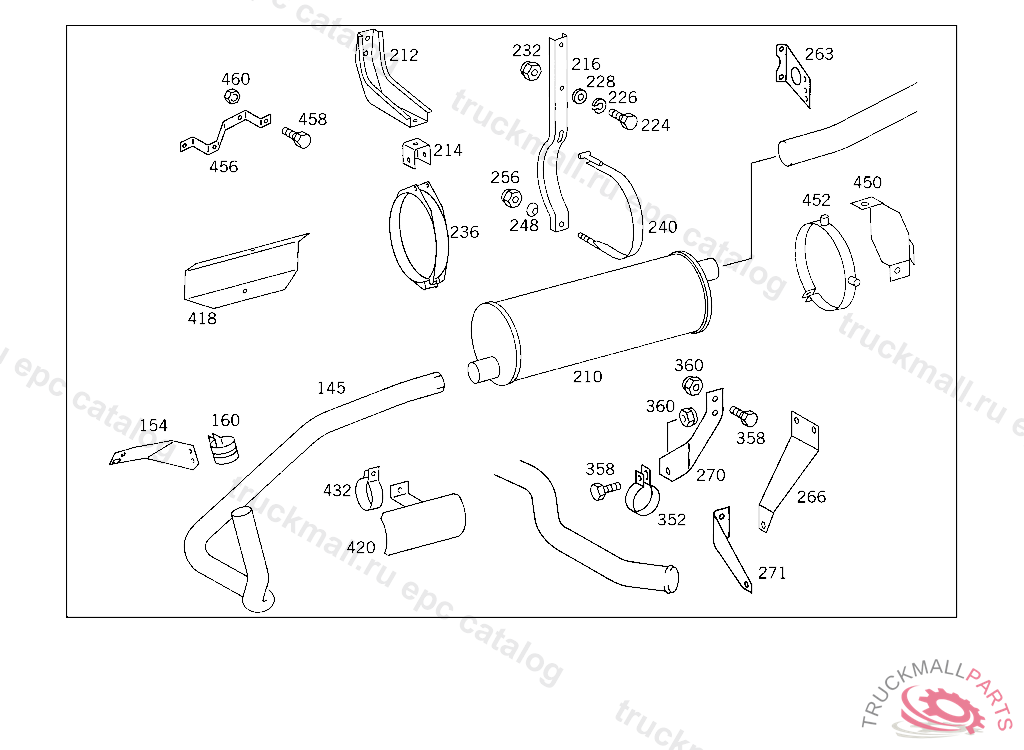

Поз.
Артикул
Описание
145
EXHAUST PIPE FRONT
154
BRACKET FRONT EXHAUST PIPE
160
CLAMP EXHAUST PIPE TO BRACKET
160
CLAMP EXHAUST PIPE TO BRACKET
210
EXHAUST MUFFLER
212
CONSOLE REAR EXHAUST MUFFLER 126 MM
212
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
212
CONSOLE EXHAUST MUFFLER,FRONT
212
CONSOLE REAR EXHAUST MUFFLER 200 MM
214
BRACKET EXHAUST MUFFLER
214
BRACKET EXHAUST MUFFLER
214
BRACKET EXHAUST MUFFLER SUSPENSION
214
BRACKET REAR EXHAUST PIPES
216
BRACKET PARTICLE FILTER
216
BRACKET FRONT AND REAR EXHAUST MUFFLERS,5 765950
216
BRACKET EXHAUST MUFFLER
216
BRACKET EXHAUST MUFFLER
216
BRACKET , Replaced By: A6524911641
216
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
216
BRACKET FRONT AND REAR EXHAUST MUFFLERS,5 765950
216
BRACKET ,5 765950, Replaced By: A6174911841
216
BRACKET FRONT AND REAR EXHAUST MUFFLERS
224
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
224
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
224
SCREW , Replaced By: N308676014020
226
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
228
WASHER BRACKET TO SIDE MEMBER,5 703114
232
NUT BRACKET TO SIDE MEMBER
232
NUT , Replaced By: N910113014001
236
STRAP EXHAUST MUFFLER TO BRACKET
236
STRAP EXHAUST MUFFLER TO BRACKET
236
STRAP EXHAUST MUFFLER TO BRACKET
236
STRAP , Replaced By: A6204900042, +001N000933008165
240
STRAP , Replaced By: A6174900142
240
STRAP EXHAUST MUFFLER
240
STRAP PARTICLE FILTER
240
STRAP EXHAUST MUFFLER TO BRACKET
240
STRAP PARTICLE FILTER
248
SPHERICAL WASHER STRAP TO BRACKET
256
NUT , Replaced By: N910113010000
256
NUT STRAP TO BRACKET
256
NUT BRACKET TO SIDE MEMBER,XB209706
263
BRACKET TAIL PIPE
263
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6194920641
266
BRACKET TAIL PIPE TO SIDE MEMBER
270
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
270
BRACKET TAIL PIPE TO SIDE MEMBER
271
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
352
CLAMP EXHAUST PIPE
358
SCREW BRACKET TO SIDE MEMBER
358
SCREW BRACKET TO SIDE MEMBER
358
SCREW , Replaced By: N304017010002
360
NUT STRAP TO BRACKET
360
NUT STRAP TO BRACKET
360
NUT , Replaced By: N910113010000
418
PROTECTIVE PLATE (HEAT SHIELD)
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP , Replaced By: N071555090502
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP EXHAUST PIPE
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP , Replaced By: N071555100501
450
PROTECTIVE PLATE TAIL PIPE
452
CLAMP HEAT SHIELD MOUNTING
456
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE
458
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
458
SCREW , Replaced By: N308676012012
460
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET
