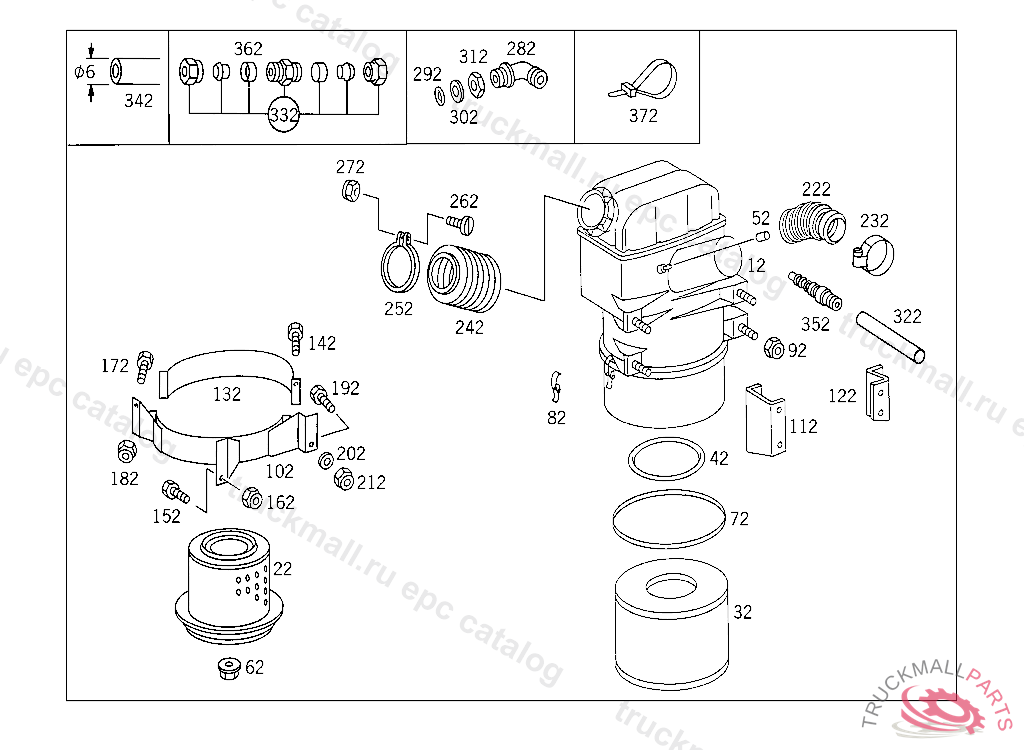

Поз.
Артикул
Описание
12
AIR CLEANER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE5 435246, Replaced By: A0150949002, +001A6455280240, +001A6455280440
12
AIR CLEANER , Replaced By: A0160945702
12
AIR CLEANER
22
FILTER ELEMENTT0 010 094 15 02
32
FILTER ELEMENT AIR CLEANER
32
FILTER ELEMENT AIR CLEANER
42
SEAL RING AIR CLEANER ELEMENT
52
WASHER FELT
62
NUT
72
GASKET AIR CLEANER BOWL
82
FASTENER
92
NUT SUPPORT TO SIDE MEMBER
102
SUPPORT , Replaced By: A6565200033
102
SUPPORT AIR CLEANER
112
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
112
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
112
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
112
BRACKET AIR CLEANER,FRONT RIGHT
122
BRACKET AIR CLEANER,REAR
122
BRACKET AIR CLEANER,REAR
122
BRACKET AIR CLEANER,REAR RIGHT
132
STRAP AIR CLEANER
142
SCREW , Replaced By: N304017008034
142
SCREW BRACKET TO CROSS CONNECTION STRUT
152
SCREW , Replaced By: N308676014020
152
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
152
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
162
NUT , Replaced By: N910113014001
162
NUT BRACKET TO SIDE MEMBER
162
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
162
NUT COMBINATION CYLINDER TO BEARING BRACKET
172
SCREW , Replaced By: N308676012026
172
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
172
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
182
NUT SUPPORT TO SIDE MEMBER
192
SCREW END PIECE TO EXHAUST PIPE M 10X25
202
WASHER RADIATOR TO RUBBER MOUNTING
202
WASHER , Replaced By: N000125010532
212
NUT STRAP TO BRACKET
212
NUT , Replaced By: N910113010000
222
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
222
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
222
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
232
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
232
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
232
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
232
CLAMP , Replaced By: N000000000678
242
BOOT
242
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
252
CLAMP BOOT TO INTAKE PIPE
262
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
272
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
282
ELBOW FITTING , Replaced By: A0039901671
282
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
282
ELBOW FITTING , Replaced By: A0039901671
292
SEAL RING LINE CONNECTION
292
SEALING CORD SUCTION LINE TO OIL PUMP
302
THRUST RING SUCTION LINE TO OIL PUMP
312
NUT 3/2-WAY VALVE TO CAB,4 685151
312
NUT , Replaced By: N080705026003
322
PLASTIC PIPE RISING PIPE 4X6 MM
322
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
332
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
342
HOSE LEAK LINE, ORDER BY THE METER
352
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
362
SLEEVE LEAK LINE
372
LOOM TIE LINE MOUNTING 280 MM
999
HOUSINGTO 014 094 93 02
