Поз.
Артикул
Описание
6

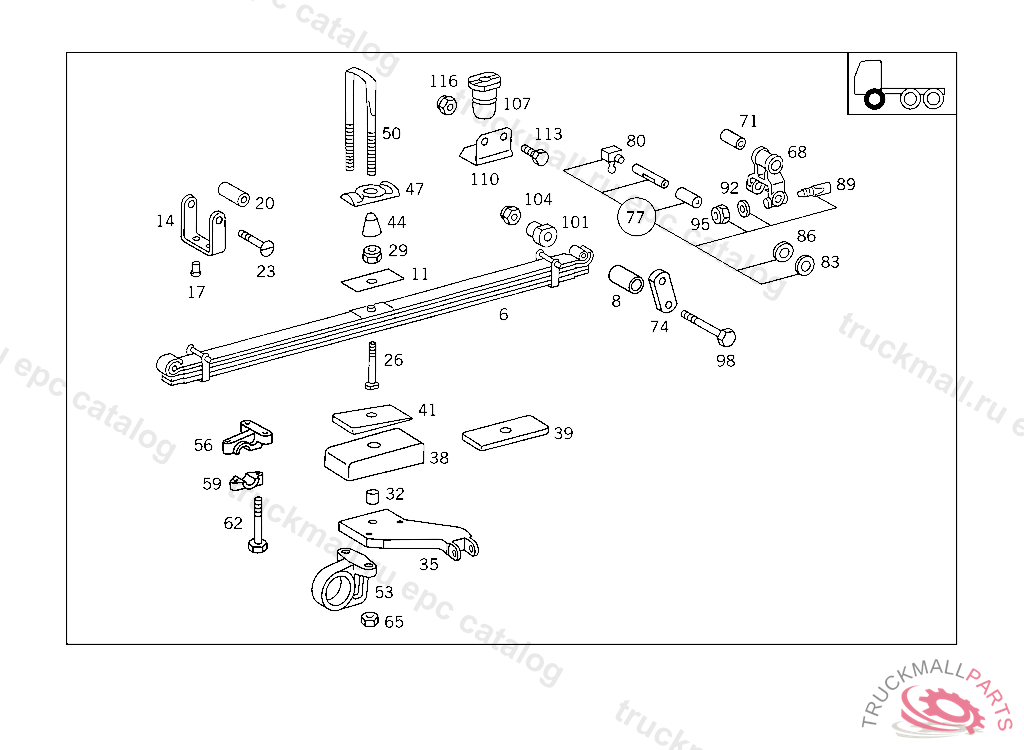

FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: 4
8
BUSHING FRONT
8
BUSHING FRONT
11
SHIM SPRING LEAF
14
SPRING CLAMP FRONT SPRING,5 193395
17
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
20
SPACER TUBE SPRING CLAMP
23
SCREW FOR SPRING CLAMPS
26
SCREW (SPRING BOLT)
29
NUT STEERING SUPPORT TO FRAME
29
NUT , Replaced By: N910113014000
32
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
32
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
32
PIN , Replaced By: A6573310074
35
BRACKET RIGHT SHOCK ABSORBER
35
BRACKET LEFT SHOCK ABSORBER,4 877630
38
SHIM FRONT SPRINGS TO FRONT AXLE
39
SHIM FRONT SPRINGS TO FRONT AXLE
41
SHIM BETWEEN SPRING AND SHIM,RIGHT, NOT APPLICABLE TO 620.086,096,466, 621.086,096,097,466, 623.068,073,473
44
RUBBER BUFFER SPRING STOP
47
PLATE FRONT SPRINGS TO FRONT AXLE
47
PLATE , Replaced By: A6483310026
47
PLATE FRONT SPRINGS TO FRONT AXLE
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
53
BEARING BRACKET FRONT AXLE TORSION BAR
65
NUT REAR SPRING TO REAR AXLE
65
NUT , Replaced By: N308674020000
65
NUT , Replaced By: N308673020002
68
SHACKLE FRONT SPRING
71
BUSHING FRONT
71
BUSHING FRONT
77
SHACKLE PIN PARTS KIT
80
GREASE NIPPLE
83
WASHER AS REQUIRED 4.30 MM
83
WASHER AS REQUIRED 4.20 MM
83
WASHER AS REQUIRED 4.00 MM
86
SEAL RING SPRING SUSPENSION
89
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
92
WASHER RADIATOR TO RUBBER MOUNTING
92
WASHER , Replaced By: N000125010532
95
NUT STRAP TO BRACKET
95
NUT , Replaced By: N910113010000
107
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
110
BRACKET HELPER SPRING
113
SCREW REAR EXHAUST PIPE TO MUFFLER
116
NUT STRAP TO BRACKET
116
NUT , Replaced By: N910113010000
