Поз.
Артикул
Описание

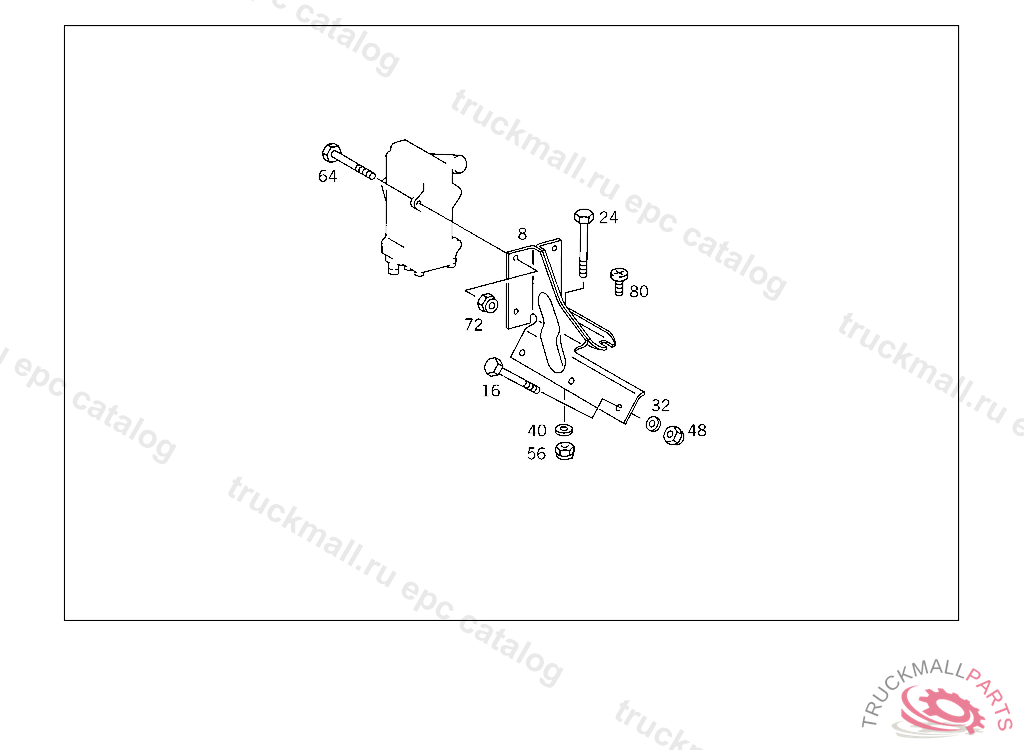

8
BRACKET HAND PUMP
16
SCREW , Replaced By: N308676012012
16
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
24
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
32
WASHER
40
WASHER , Replaced By: N000125015019
40
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
48
NUT SUPPORT TO SIDE MEMBER
56
NUT , Replaced By: N910113014001
56
NUT BRACKET TO SIDE MEMBER
64
SCREW , Replaced By: N304017010002
64
SCREW BRACKET TO SIDE MEMBER
72
NUT , Replaced By: N910113010000
72
NUT STRAP TO BRACKET
80
SCREW OIL TANK TO BRACKET
999
UNION NUT
999
SCREW VALVE TO BRACKET,5 465030
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
GLAND , Replaced By: A0019901667
999
SCREW , Replaced By: N304017008027
999
SPACER TUBE
999
HOSE FROM HYDRAULIC LINE TO CYLINDER
999
BRACKET SUCTION LINE
999
CLAMP LINE MOUNTING
999
ANGLE LINE MOUNTING
999
SPACER TUBE , Replaced By: A4082910153
999
SEAL CONE
