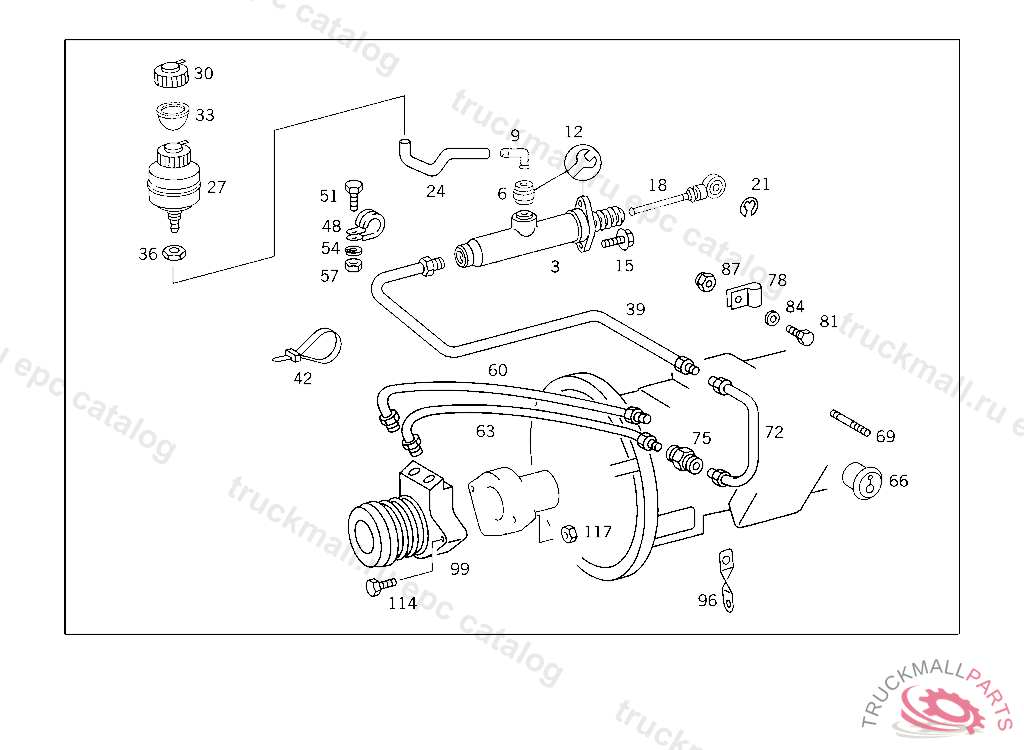

Поз.
Артикул
Описание
3
MASTER CYLINDER CLUTCH M14X1,D 561822
3
MASTER CYLINDER , Replaced By: A0012959706
3
MASTER CYLINDER , Replaced By: A3882957206
6
PLUG
9
INTERMEDIATE PIECE , Replaced By: A0002950036
12
CYLINDER. REPAIR KIT REPAIR KIT TO 384 295 70 06
12
CYLINDER. REPAIR KIT CLUTCH MASTER CYLINDER,5 366604
15
SCREW
18
ROD CLUTCH PEDAL
21
LOCK PLATE
24
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
27
RESERVOIR FLUID RESERVOIR
30
FILLER CAPTO A 688 431 00 02
33
STRAINER
36
NUT BRACKET TO SIDE MEMBER
39
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
42
LOOM TIE LINE MOUNTING
42
PART NAME MISSING LOOM TIE
48
CLAMP SENSOR CABLE TO FRONT AXLE
48
CLAMP LINE MOUNTING
51
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
54
LOCK WASHER PIPE LINE TO BRACKET
57
NUT
60
OIL PIPE SLAVE CYLINDER
63
OIL PIPE SLAVE CYLINDER
66
RUBBER SLEEVE
69
STUD
72
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
72
LINE FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER,D 089901
75
FITTING LINE MOUNTING
78
PART NAME MISSING CLAMP
81
PART NAME MISSING SCREW 1/4-20
84
PART NAME MISSING SPRING WASHER 1/4
87
PART NAME MISSING NUT 1/4-20
96
BRACKET LINE MOUNTING
99
SLAVE CYLINDER
114
PART NAME MISSING SCREW 5/16-18 X 1 3/4 G8
117
PART NAME MISSING NUT
999
BRACKET HOSE TO TRANSMISSION
