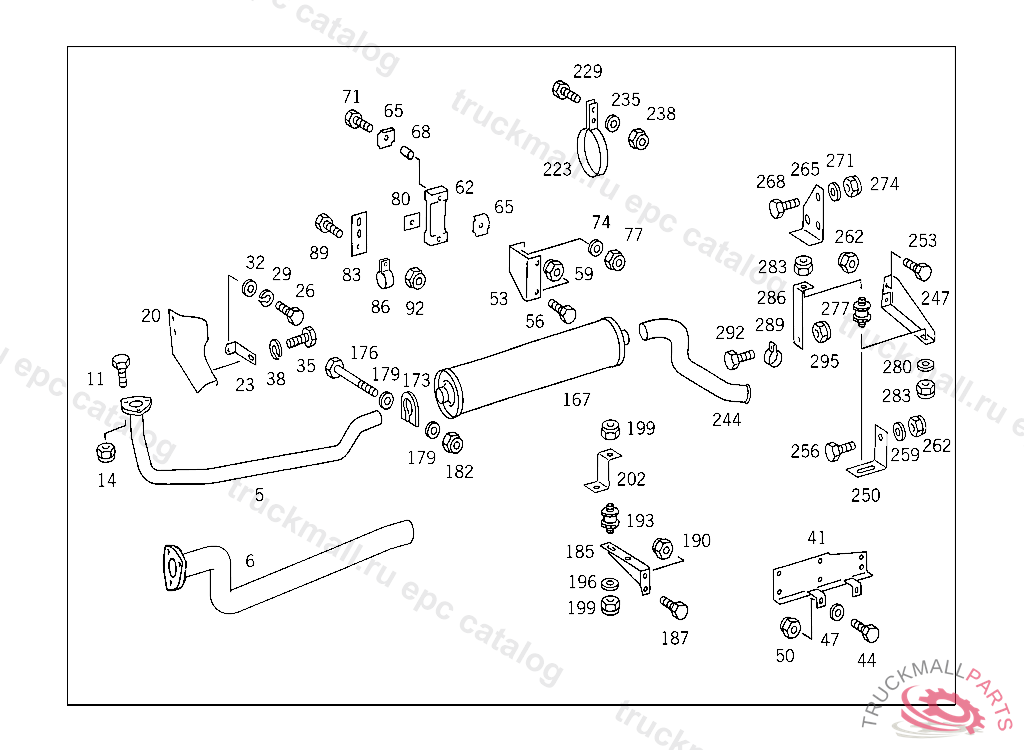

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
11
SCREW CROSS MEMBER TO SIDE MEMBERS
11
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
14
NUT , Replaced By: N910113010004
41
PROTECTIVE PLATE ,B 984609
44
SCREW BRACKET TO TORSION BAR,4 9511495 554754
47
WASHER BRACKET TO STEERING GEAR
50
NUT , Replaced By: N910113010002
53
SUPPORT , Replaced By: A6884927216
53
SUPPORT FRONT EXHAUST PIPE
56
SCREW , Replaced By: N304017010040
56
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
59
NUT BRACKET TO SIDE MEMBER,XB209706
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
DAMPING PAD FRONT EXHAUST PIPE,B 884219
65
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
68
SPACER TUBE FRONT EXHAUST PIPE,B 884219
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X45
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X45
74
WASHER TRAILER PLUG SOCKET TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
INSULATING WASHER. INSULATION , Replaced By: A3094900037
83
SUPPORT EXHAUST PIPE TO SUPPORT
86
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
89
SCREW HAND PUMP TO BRACKET
92
NUT , Replaced By: N910113010004
167
EXHAUST MUFFLER
167
EXHAUST MUFFLER
167
EXHAUST MUFFLER
167
EXHAUST MUFFLER , Replaced By: A6884907201
167
EXHAUST MUFFLER , Replaced By: A6884907201
167
EXHAUST MUFFLER ,D 082587
167
EXHAUST MUFFLER ,D 082587
173
CLAMP , Replaced By: A6734920140
173
CLAMP REAR EXHAUST PIPE TO MUFFLER
176
SCREW SHIFT LEVER
176
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
176
SCREW AT SHIFT LEVER M 8X100
179
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
182
NUT , Replaced By: A1201420072
182
NUT HORN TO BRACKET M8
185
BRACKET EXHAUST MUFFLER,FRONT
185
BRACKET EXHAUST MUFFLER,REAR
187
SCREW ANGLE TO CROSS MEMBER M 10X30
187
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
190
NUT BRACKET TO SIDE MEMBER,XB209706
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
193
RUBBER BUFFER EXHAUST MUFFLER
196
WASHER GROUND CABLE
199
NUT BRACKET TO RETARDER
199
NUT , Replaced By: N913023010002
202
SUPPORT
202
SUPPORT REAR EXHAUST MUFFLER 95 MM
202
SUPPORT EXHAUST MUFFLER
223
CLAMP EXHAUST MUFFLER TO SUPPORT
223
CLAMP , Replaced By: A6884917240
223
CLAMP EXHAUST MUFFLER TO SUPPORT,B 906194
229
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
229
SCREWM 10X20
235
WASHER TRAILER PLUG SOCKET TO BRACKET
238
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
238
NUT , Replaced By: A1201420072
238
NUT HORN TO BRACKET M8
999
NUT HEAT PROTECTION PLATE ON EXHAUST PIPE
999
SCREW BRACKET TO SIDE MEMBER
999
STUD BOLTM10X20
999
EXHAUST PIPE FROM EXHAUST MANIFOLD TO PIPE SOCKET
999
EXHAUST PIPE FROM CONNECTOR TO MUFFLER
