Поз.
Артикул
Описание

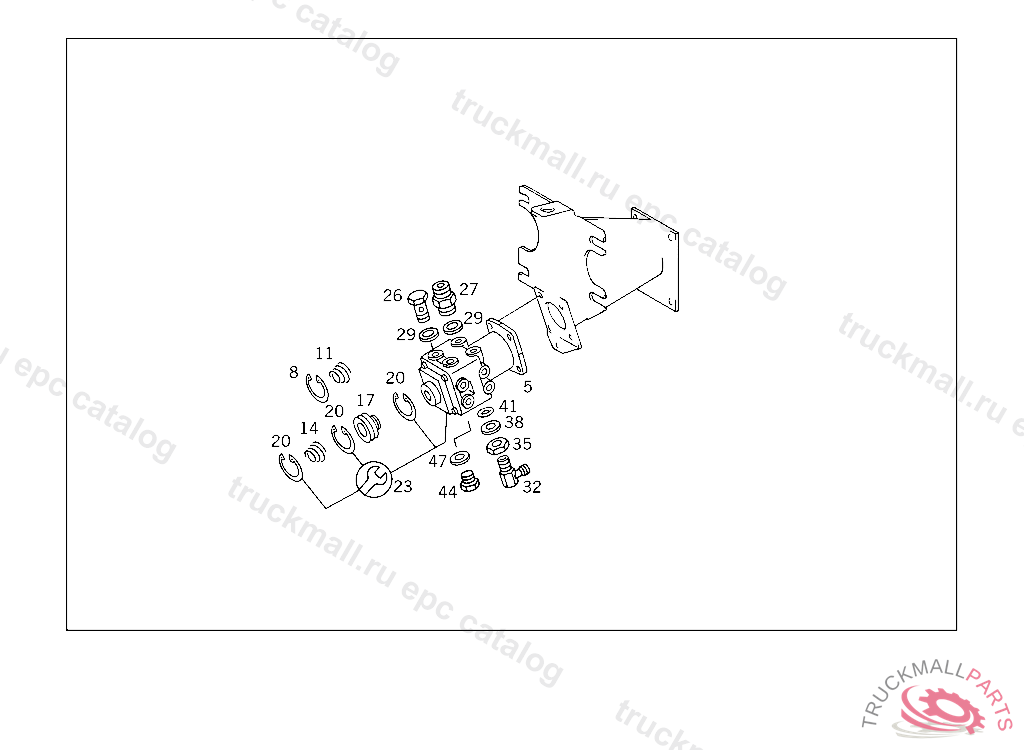

5
BRAKE VALVE SERVICE BRAKE WABCO
5
BRAKE VALVE SERVICE BRAKE KNORR
8
LOCKTO 345 431 70 05
11
SPRINGTO 345 431 70 05
11
SPRINGTO 345 431 70 05
14
SPRINGTO 345 431 71 05
17
PISTONTO 345 431 71 05
20
LOCK RING PLANETARY CARRIER
20
LOCK RING
20
LOCK RINGTO 345 431 71 05
20
LOCK RINGTO 345 431 71 05
23
REPAIR KIT , Replaced By: A0014300460
23
REPAIR KIT SMALL SCOPE TO 345 431 71 05
23
REPAIR KIT SMALL SCOPE TO 345 431 70 05
26
HOLLOW SCREW PRESSURE REGULATOR,CONNECTION "21"
27
SCREW-IN FITTING SERVICE BRAKE VALVE
29
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
32
ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24", USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
35
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
38
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
