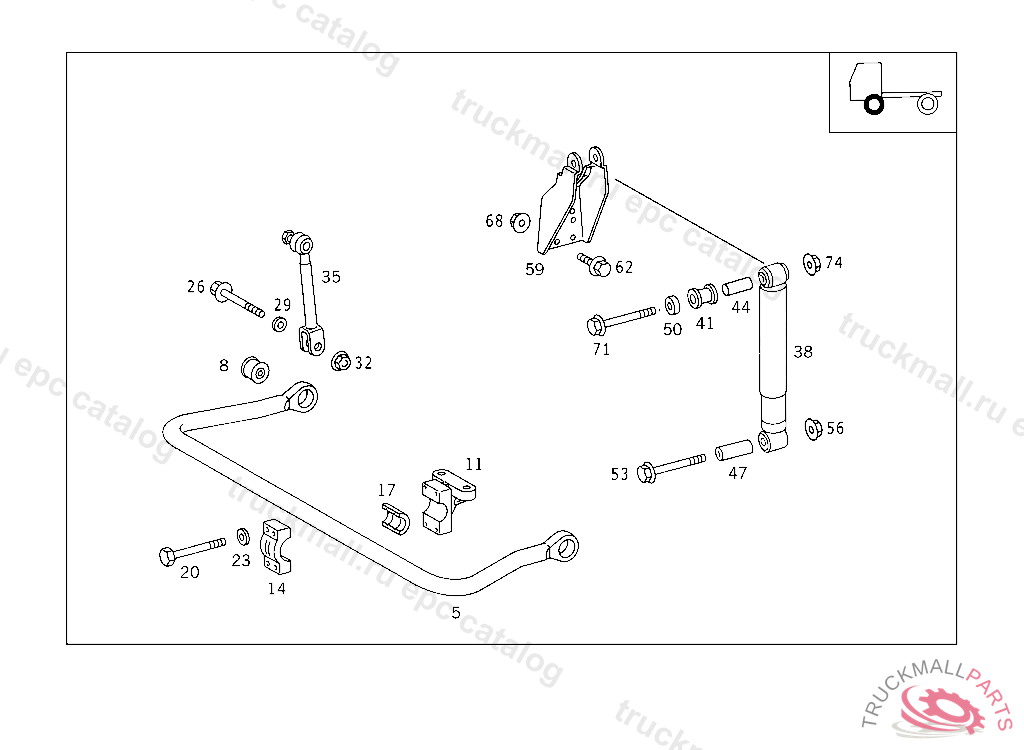

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER,D 012296
8
BUSHING
11
BEARING BRACKET HOLE SPACING: 88 MM
14
BEARING SHELL TORSION BAR BEARING
17
GROMMET STABILIZER
17
GROMMET STABILIZER
20
SCREW (ARTICULATED ROD)
23
WASHER STRUT TO CONSOLE
26
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
29
WASHER
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
35
ROD (ARTICULATED ROD)
38
SHOCK ABSORBER FRONT AXLE, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A6953230100
38
41
RUBBER MOUNTING
44
BUSHING
47
BUSHING
50
SPACER TUBE RUBBER PAD
53
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
56
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
59
BRACKET LEFT
59
BRACKET RIGHT
62
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
62
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
68
NUT BRACKET TO SIDE MEMBER M12X1.5
71
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
74
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
