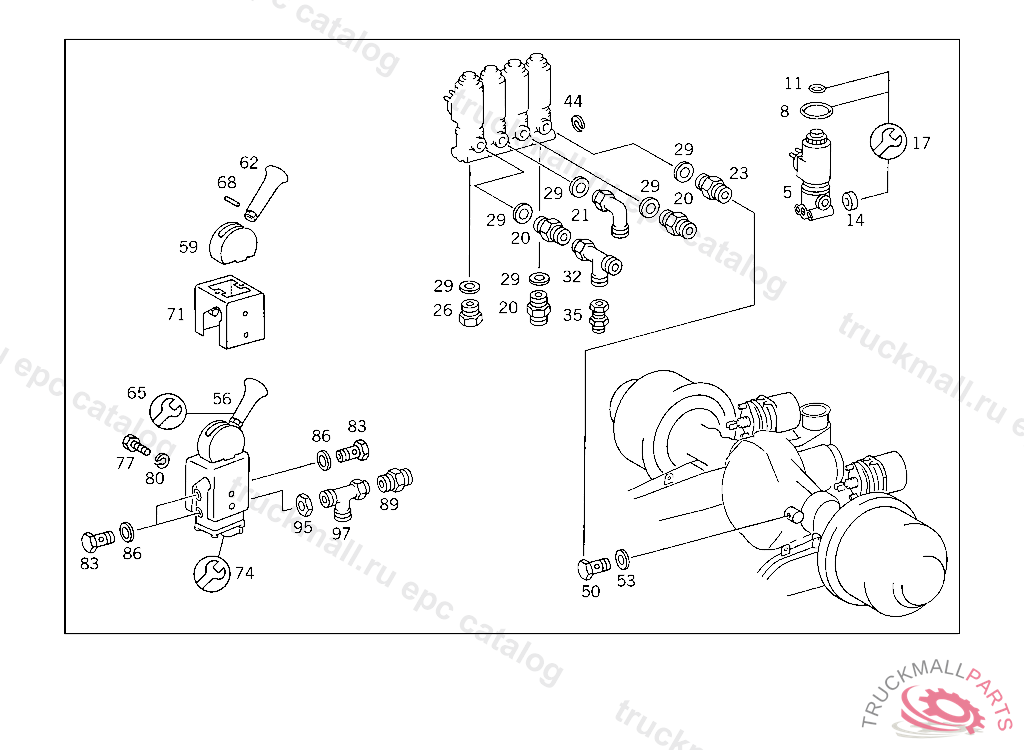

Поз.
Артикул
Описание
5
VALVE (3/2-WAY SOLENOID VALVE)
8
SEAL RING24X2 MM
11
SEAL RINGWABCO
14
SEAL RING VALVE TO VALVE
17
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
20
FITTING LINE CONNECTION, Replaced By: N000000006446
21
FITTING 3/2-WAY VALVE,CONNECTION "2"
23
FITTING , Replaced By: A3899970272
23
FITTING CONNECTION TO STOP LIGHT SWITCH
26
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
29
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
32
FITTING , Replaced By: A0009909970
32
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
35
FITTING FITTING TO BRACKET
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
HOLLOW SCREW HEATING CONNECTION
53
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
56
VALVE (PARKING BRAKE VALVE)
59
PROTECTIVE CAPTO WABCO
62
HANDLETO 002 430 29 81,WABCO
65
VALVE. REPAIR KIT HAND BRAKE LEVER TO 001 430 65 81
68
PINTO 002 430 90 81
71
SUPPORT
74
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
77
SCREW BRACKET ON LOAD SENSOR
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
HOLLOW SCREW , Replaced By: N915036010108
86
SEALING RING. SEAL RING ENGINE BREATHING
89
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
95
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
97
T-FITTING EXHAUST-BRAKE POWER CYLINDER
999
NUT , Replaced By: N304032008006
999
SCREW REGULATING SOLENOID VALVE TO SIDE MEMBER
999
WASHER
999
WASHER , Replaced By: N000125008443
999
VALVE , Replaced By: A0049975736
999
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT , Replaced By: A0034303381
999
LEVER , Replaced By: A0034302881
