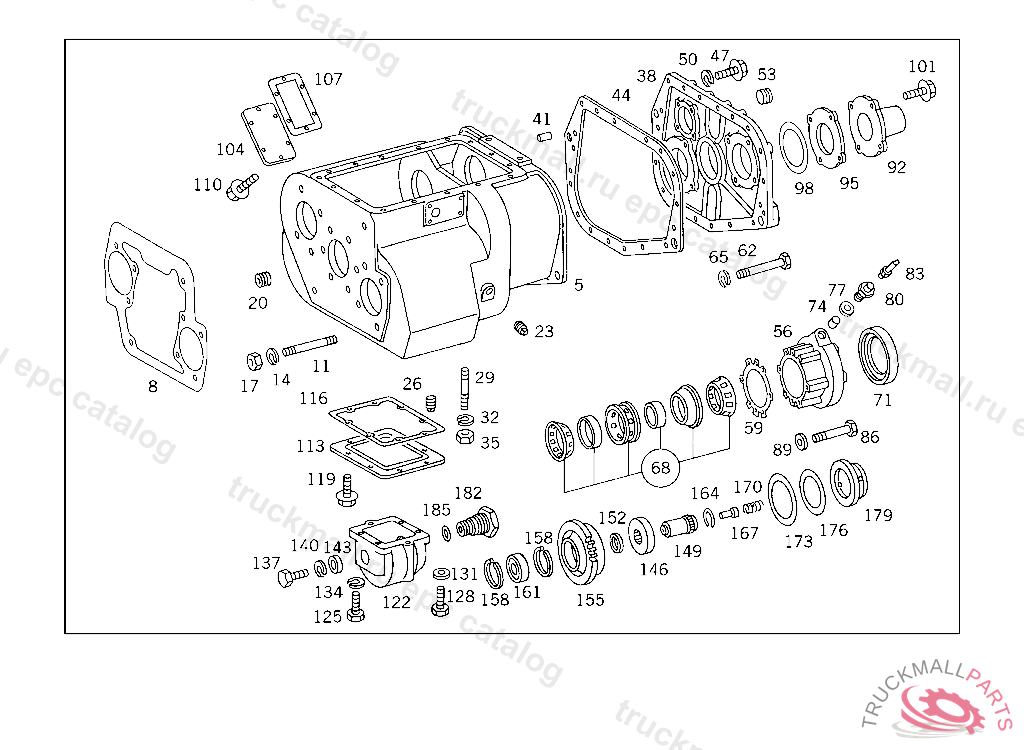

Поз.
Артикул
Описание
5
TRANSMISSION CASE , ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 12509
8
GASKET TRANSMISSION TO BELL HOUSING
11
STUD TRANSMISSION TO BELL HOUSING
11
STUD , Replaced By: A0002610770
14
LOCK WASHER , Replaced By: A0009903947
14
LOCK WASHER TRANSMISSION TO BELL HOUSING
17
NUT SHIFT CASE TO TRANSMISSION COVER
17
NUT , Replaced By: A0029905551
17
NUT , Replaced By: A0029905751
20
PLUG TRANSMISSION CASE FRONT COVER
23
PLUG OIL FILLING
23
PLUG , Replaced By: A0009971706
26
PLUG OIL FILLING
38
TRANSMISSION CASE COVER ADDITIONAL GEAR CLUSTER, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
41
DOWEL PIN TRANSMISSION CASE REAR COVER
44
GASKET ADDITIONAL GEARBOX TO TRANSMISSION
47
SCREW ADDITIONAL GEARBOX TO TRANSMISSION, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
50
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
53
SCREW PLUG GEARSHIFT COVER
56
BEARING CAP SPEEDOMETER DRIVE COVER, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
59
GASKET SPEEDOMETER DRIVE COVER
62
SCREW BEARING COVER TO ADDITIONAL GEAR GROUP CASE, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 12509
62
SCREW SENSOR CABLE TO BRACKET
65
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
68
ANGULAR CONTACT BEARING OUTPUT SHAFT, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
71
SEAL RING REAR BEARING COVER
74
BUSHING SPEEDOMETER DRIVE
77
SEAL RING SCREW FITTING
80
LOCK NUT SPEEDOMETER
83
DRIVE GEAR SPEEDOMETER, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
86
SCREW AT SPEEDOMETER BORE 3/8"-16X3", ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES
89
SEAL RING SPEEDOMETER
92
COVER COUNTERSHAFT,REAR, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 12509
95
GASKET COVER TO CASE REAR COVER
98
SPACER RING ELONGATED COUNTERSHAFT
101
SCREW COVER TO SHIFT CASE
104
TRANSMISSION CASE COVER LATERAL TOP RIGHT
107
GASKET CASE COVER TO TRANSMISSION
110
SCREW BRACKET TO COMPRESSOR, TO BE ADAPTED DURING ASSEMBLY
113
FLANGE CLUTCH BRAKE
113
TRANSMISSION CASE COVER , Replaced By: A0002610537
116
GASKET TRANSMISSION CASE BOTTOM COVER
119
SCREW , Replaced By: A0059906201
119
SCREW TRANSMISSION CASE BOTTOM COVER
122
HOUSING CLUTCH BRAKE
125
SCREW HOUSING,BOTTOM
128
SCREW HOUSING,BOTTOM
131
SEAL RING SPEEDOMETER
134
LOCK WASHER P.T.O. TO TRANSMISSION TO 000 260 38 05
137
SCREW CLUTCH BRAKE
140
LOCK WASHER CLUTCH BRAKE
143
PRESSURE PLATE CLUTCH BRAKE
146
SHAFT CLUTCH BRAKE, ONLY APPLICABLE TO MALAYSIA,INDONESIA,AND THE PHILIPPINES FOR TRANSMISSION RT 9509C
149
FOLLOWER CLUTCH BRAKE
152
SPACER RING CLUTCH BRAKE
155
INTERMEDIATE GEAR CLUTCH BRAKE
158
SNAP RING CLUTCH BRAKE
161
BALL BEARING CLUTCH BRAKE
164
SNAP RING CLUTCH BRAKE
167
PISTON CLUTCH BRAKE
170
SPRING CLUTCH BRAKE
173
BRAKE DISC OUTSIDE
176
BRAKE DISC INSIDE
179
PRESSURE PLATE CLUTCH BRAKE
182
SCREW CLUTCH BRAKE
185
SEAL RING SCREW FITTING
185
SEAL RING , Replaced By: A0079973048
