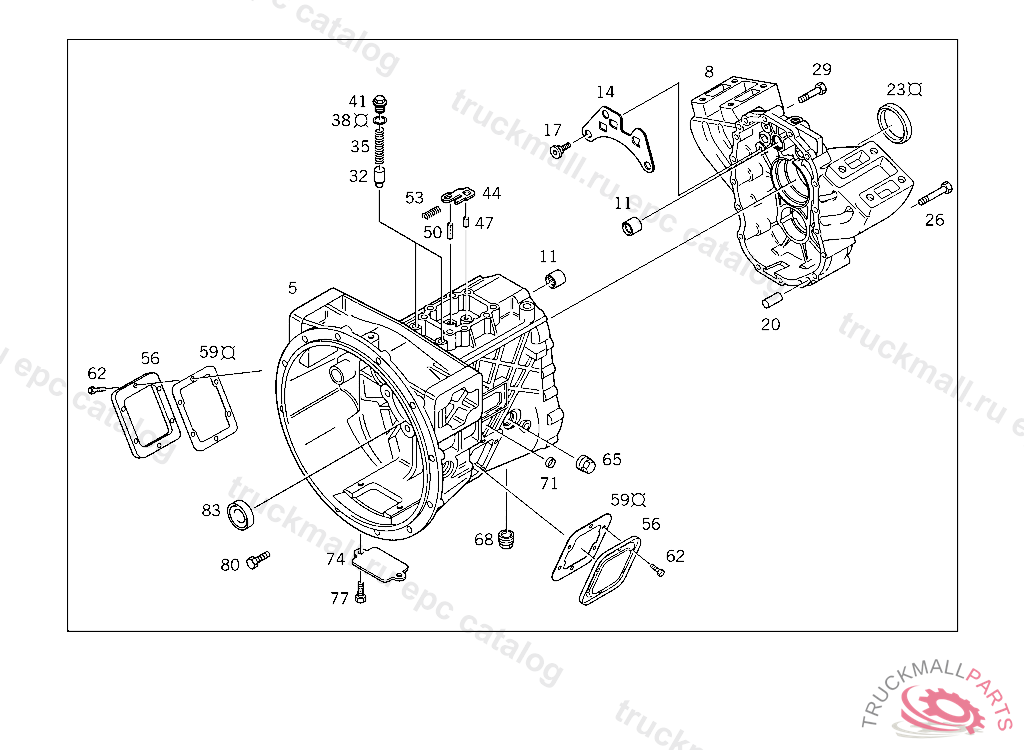

Поз.
Артикул
Описание
11
GUIDE TUBE TRANSMISSION CASE
11
GUIDE TUBE SHIFTING RAIL
14
DETENT PLATE SHIFTING ROD
17
SCREW DETENT PLATE TO COVER
20
PIN TRANSMISSION CASE
23
SEAL RING CASE,REAR
23
SEAL RING CASE,REAR
26
SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
29
ECCENTRIC SCREW TRANSMISSION CASE TO TRANSMISSION CASE
32
PIN 1ST THRU 4TH SPEED,REVERSE SPEED
35
SPRING 1ST THRU 4TH SPEED,REVERSE SPEED
38
SEAL RING , NOT USED
41
SCREW PLUGROCKINGER,TYP 59 U150
44
DETENT PLATE TRANSMISSION CASE,TOP
47
CLAMPING SLEEVE , Replaced By: N001481005017
50
CLAMPING SLEEVE PIN8X22
53
SPRING DETENT PLATE
65
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
68
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
71
EXPANSION PLUG
80
SCREW BRACKET TO RIGHT SIDE MEMBER
83
WASHER TRANSMISSION CASE,FRONT
