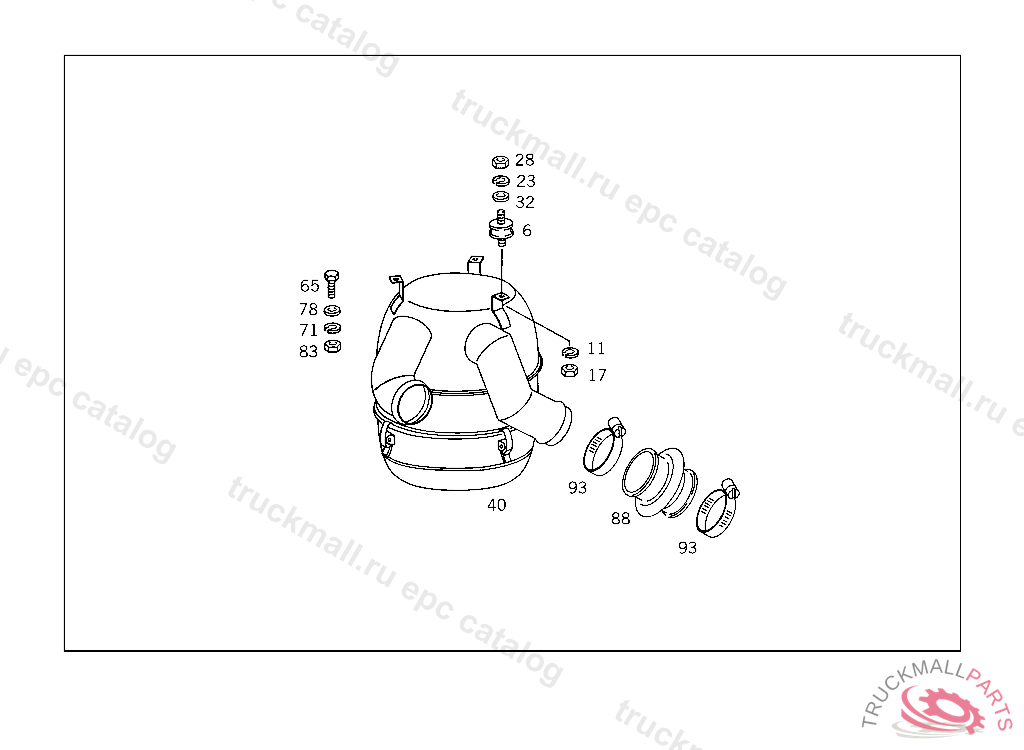

Поз.
Артикул
Описание
6
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
11
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
NUT
23
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
28
NUT
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
40
AIR CLEANER OIL BATH
65
SCREW CLAMP TO BRACKET AND TO PIPE
71
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
78
WASHER , Replaced By: N000125008443
78
WASHER EXHAUST MUFFLER TO STRAP
83
NUT
88
BOOT AIR INTAKE PIPE TO AIR CLEANER,950198
93
CLAMP , Replaced By: A0059971490
93
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW
999
FILTER ELEMENT
999
GASKET
999
NUT
999
WORM SHAFT
999
MAINTENANCE INDICATOR
999
VALVE
999
STUD
