Поз.
Артикул
Описание

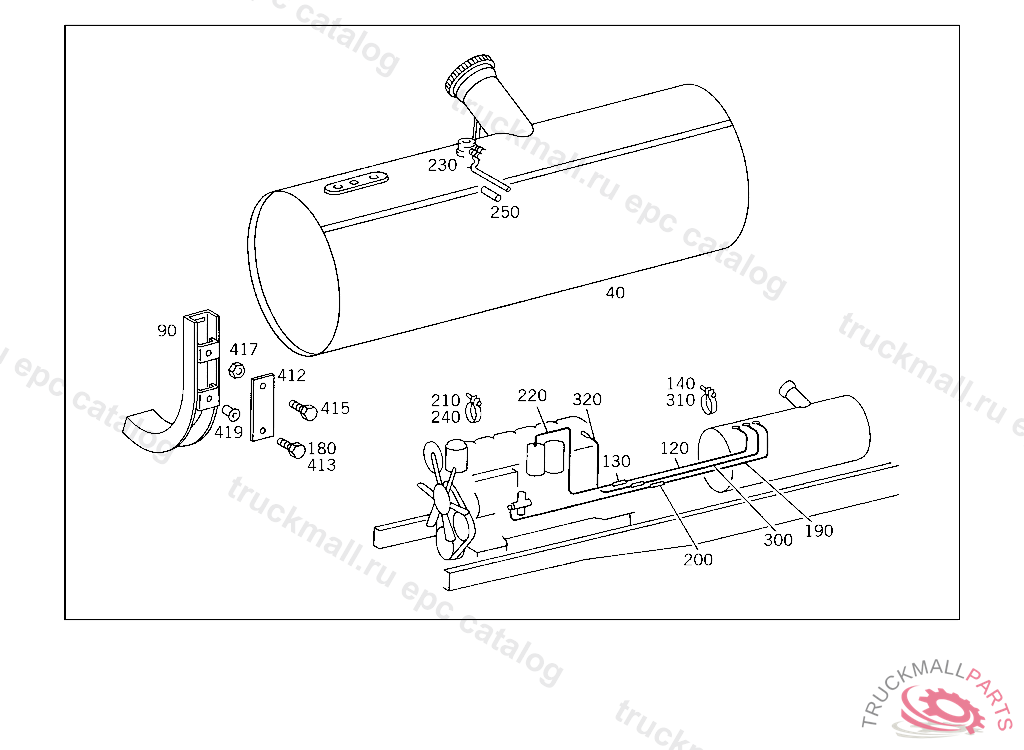

40
FUEL TANK LESS SENDER UNIT
40
FUEL TANK LESS SENDER UNIT
40
FUEL TANK
40
FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
120
LINE FROM FUEL TANK TO RUBBER HOSE
120
LINE FROM FUEL TANK TO RUBBER HOSE
120
LINE FROM FUEL TANK TO RUBBER HOSE
130
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
140
LOOM TIE , Replaced By: A0029978790
180
SCREW , Replaced By: N308676014008
190
LINE FROM RUBBER HOSE TO FUEL TANK
190
LINE FROM RUBBER HOSE TO FUEL TANK
200
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
210
LOOM TIE , Replaced By: A0029978790
220
LINE FROM RETURN LINE TO FUEL TANK
220
LINE FROM RETURN LINE TO FUEL TANK
220
LINE , Replaced By: A3414701464
220
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
220
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
230
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
240
LOOM TIE , Replaced By: A0029978790
250
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
300
LINE FROM HOSE TO TANK
310
LOOM TIE LEAK LINE TO CYLINDER HEAD,NO. 341.042,044A 073578
320
LINE FROM CYLINDER HEAD TO HOSE
412
BASE SUPPORT TO SIDE MEMBER
413
SCREW , Replaced By: N308676014020
415
SCREW , Replaced By: N308676012012
417
NUT STRAP TO SUPPORT
419
RIVET CROSS MEMBER TO RIGHT SIDE MEMBER 12X30 MM
999
FUEL TANK LESS SENDER UNIT "140 L"
999
BASE CONSOLE TO SIDE MEMBER
999
SHIM CONSOLE
999
LINE
999
LINE
999
LINE FROM RUBBER HOSE TO TANK
999
LINE FROM TANK TO HOSE
999
SUPPORT FUEL TANK
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR, WITH STEERING COLUMN MOUNTED SWITCH,FROM CHASSIS A 061072A 069204
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR, WITH STEERING COLUMN MOUNTED SWITCH,FROM CHASSIS A 061072
999
ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR, WITH FOOT-OPERATED DIMMER SWITCH,UP TO CHASSIS A 061071
999
BRACKET AT CROSS MEMBER NO.4
999
FUEL TANK ,A 069205
999
FUEL TANK
999
LINE FROM SCREW CONNECTION TO TANK,A 051293
999
FUEL TANK
999
LINE FROM SCREW CONNECTION TO TANK,A 051293
999
FUEL TANK WITH SENDER UNIT
999
FUEL TANK , Replaced By: A3414707501
999
LINE
999
SHIM CONSOLE TO SIDE MEMBER,KB860814
999
LINE RETURN, PART II, ON OM 352 ENGINE
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM TANK TO RUBBER HOSE
999
SUPPORT WITH SEAL CONE
999
SHIM RESERVOIR
999
BRACKET COMPRESSED AIR LINE TO CROSS MEMBER
