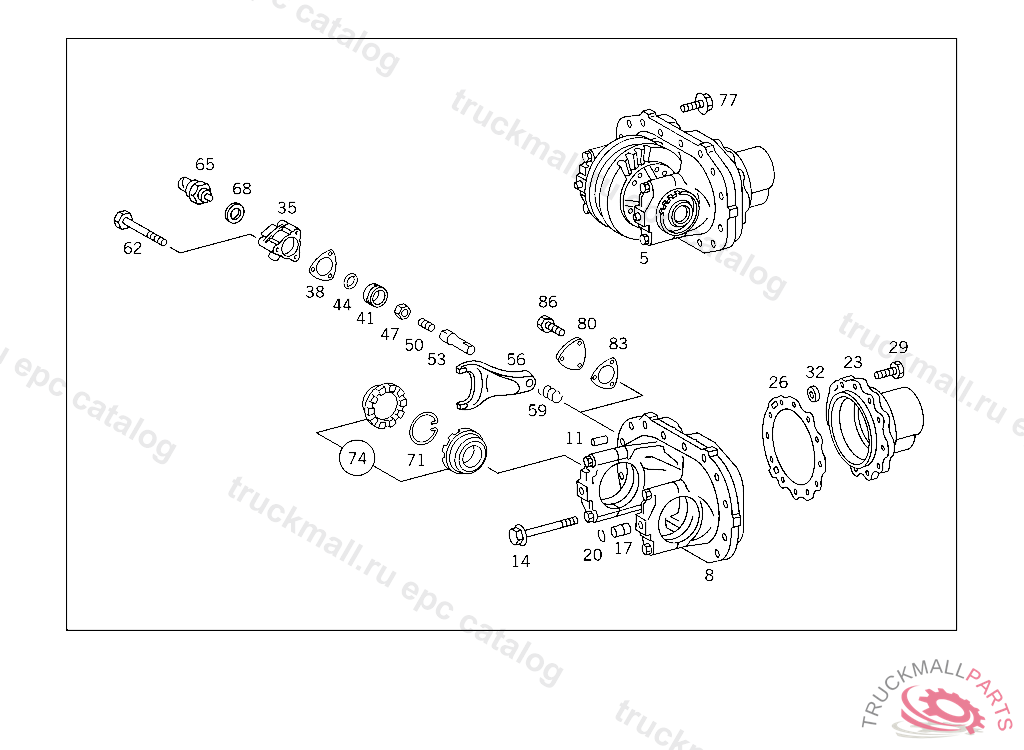

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR LESS FLANGE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
AXLE HOUSING
11
CYLINDRICAL PIN
11
CYLINDRICAL PIN , Replaced By: N000007008101
14
SCREW BEARING COVER TO AXLE HOUSING
17
PIN AXLE HOUSING
20
SNAP RING
23
HOUSING. OIL COLLECTOR (PINION HOUSING)
23
HOUSING , Replaced By: A3553530807, +001N000906020003
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.20 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 1.50 MM
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.35 MM, NOT USED
26
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
26
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
29
SCREW APPARATUS SUPPORT TO FRAME
32
SEAL RING PINION HOUSING TO AXLE HOUSING
35
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
38
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
41
PISTON TRANSVERSE DIFFERENTIAL LOCK
41
PISTON TRANSVERSE DIFFERENTIAL LOCK
44
SEAL RING SHIFTING CYLINDER
47
NUT
50
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
53
SHAFT SHIFTING ROD,232175
56
SHIFTING FORK DIFFERENTIAL LOCK
59
SPRING SHIFTING FORK
62
SCREW BRACKET TO BEARING BRACKET
65
SWITCH , Replaced By: A0015455709
65
SWITCH
68
SEAL RING SWITCH TO CASE COVER
71
LOCK FOLLOWER
74
DIFFERENTIAL LOCK PARTS KIT
77
SCREW BRACKET TO BRACKET
77
SCREW REAR AXLE HOUSING TO AXLE CASING M 12X35
