Mercedes
AXLE
HD 7/016 DSG-13
740.532
35 REAR AXLE
400 DIFFERENTIAL GEAR,THROUGH DRIVE, DIFFERENTIAL LOCK IL. 2

Mercedes A0015458214 - Датчик блокировки 641959 M 18 x 1,5 / M 27 x 1 / Starkmeister

HD 7/016 DSG-13 740.532

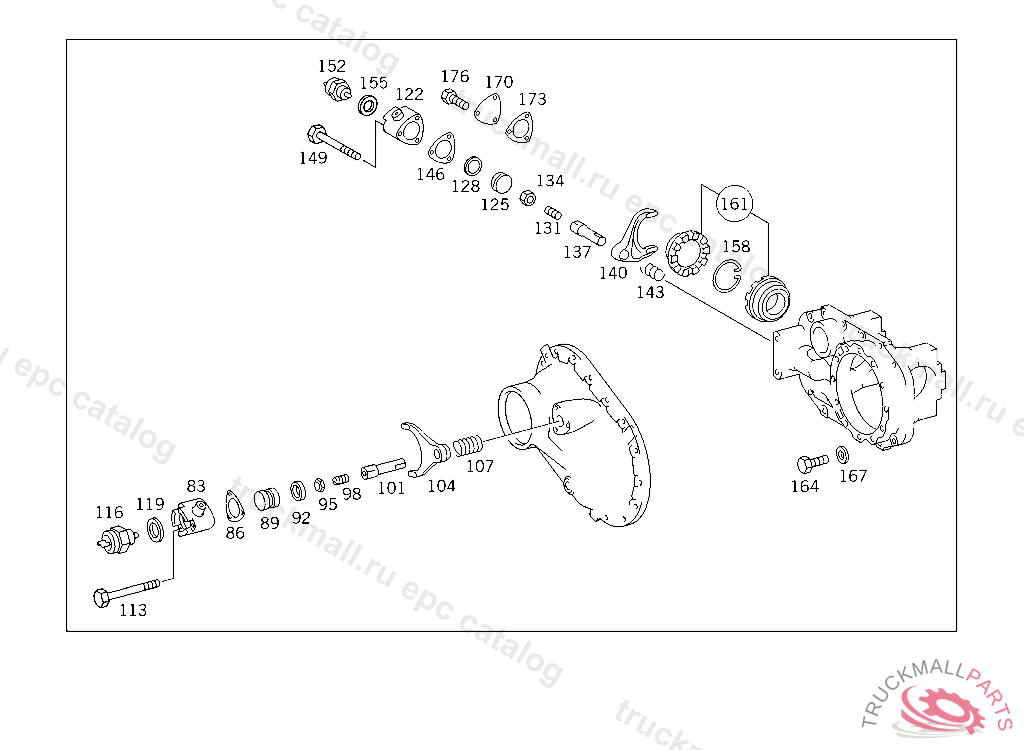

35 REAR AXLE - 400 DIFFERENTIAL GEAR,THROUGH DRIVE, DIFFERENTIAL LOCK IL. 2

Поз.
Артикул
Описание
83
A3463530455
CYLINDER , Replaced By: A3463530655
83
A3463530408
COVER , Replaced By: A3463530655
83
A3463530155
CYLINDER , Replaced By: A3463530655, +003N000931008278, +001N007603018100
83
A3463530655
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
86
A3553530280
GASKET DIFFERENTIAL LOCK TO 355 353 02 80
86
A3553510180
GASKET , Replaced By: A3553530380
86
A3553510080
GASKET , Replaced By: A3553530280
86
A3553530380
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
89
A3463530357
PISTON TRANSVERSE DIFFERENTIAL LOCK
89
A3463530157
PISTON TRANSVERSE DIFFERENTIAL LOCK
92
A0019972245
SEAL RING SHIFTING CYLINDER
95
N304035010000
NUT
98
N000551010010
HEADLESS SETSCREWM 10X20,232174
98
N000551010020
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
101
A3463530535
SHAFT SHIFTING ROD,232175
101
A3463530235
SHAFT ,232174, Replaced By: A3463530535, +001N000551010006
104
A3553530234
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, MAN AXLE
107
A3469930901
SPRING SHIFTING FORK
113
N000931008246
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
113
N304017008028
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
113
N304017008045
SCREW BRACKET TO BEARING BRACKET
116
A0015454714
SWITCH , Replaced By: A0015455709
116
A0015458214
SWITCH
116
A0005454214
SWITCH , Replaced By: A0015458214
119
N007603018100
SEAL RING SWITCH TO CASE COVER
119
N007603018103
SEAL RING ON OIL PUMP HOUSING
122
A3463530508
COVER , Replaced By: A3463530455
122
A3463530455
CYLINDER , Replaced By: A3463530655
122
A3463530155
CYLINDER , Replaced By: A3463530655, +003N000931008278, +001N007603018100
122
A3463530655
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
125
A3463530157
PISTON TRANSVERSE DIFFERENTIAL LOCK
125
A3463530357
PISTON TRANSVERSE DIFFERENTIAL LOCK
128
A0019972245
SEAL RING SHIFTING CYLINDER
131
N000551010020
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
134
N304035010000
NUT
137
A3463530535
SHAFT SHIFTING ROD,232175
140
A3463530534
SHIFTING FORK DIFFERENTIAL LOCK
140
A3463530234
SHIFTING FORK DIFFERENTIAL LOCK
143
A3469930901
SPRING SHIFTING FORK
146
A3553530280
GASKET DIFFERENTIAL LOCK TO 355 353 02 80
149
N304017008028
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
149
N000931008246
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
149
N304017008045
SCREW BRACKET TO BEARING BRACKET
152
A0015454714
SWITCH , Replaced By: A0015455709
152
A0005454214
SWITCH , Replaced By: A0015458214
152
A0015458214
SWITCH
155
N007603018103
SEAL RING ON OIL PUMP HOUSING
155
N007603018100
SEAL RING SWITCH TO CASE COVER
158
A3529940039
WIRE RING TRANSVERSE DIFFERENTIAL LOCK
161
A3463530636
FOLLOWER , Replaced By: A3463500111
161
A3463530536
FOLLOWER , Replaced By: A3463500111
161
A3463500111
DIFFERENTIAL LOCK PARTS KIT
164
N914112012201
SCREW , Replaced By: A3559900704
164
A0009906304
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
164
A0009906204
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
164
A3559900704
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
164
A3559900604
SCREW BRACKET TO BRACKET
167
A3463340059
SEAL RING STEERING ARM TO STEERING KNUCKLE
999
A3463501324
WHEEL HUB DRIVE WHEEL HUB DRIVE
