Mercedes A9463281201 - ПНЕВМОБАЛЛОН

TE 5/2 C7 - 9 749.333

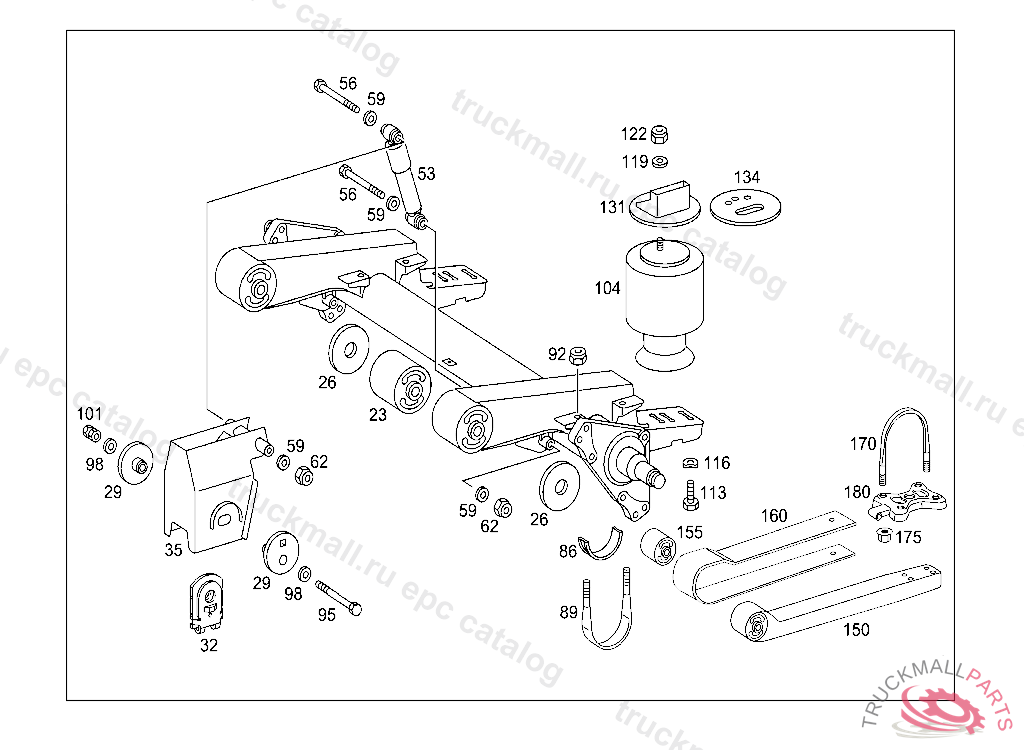

39 TRAILING AXLE - 160 SUSPENSION SYSTEM IL. 1
  • Поз.
    Артикул
    Описание
  • 23
    BUSHING
  • 26
    WASHER LEFT AND RIGHT AXLE TUBES
  • 29
    WASHER LEFT AND RIGHT AXLE TUBES HENDRICKSON
  • 53
    SHOCK ABSORBER REAR AXLE HENDRICKSON, COMPONENT PARTS NOT AVAILABLE, Replaced By: A0063264200
  • 53
    SHOCK ABSORBER REAR AXLE TENNECO, COMPONENT PARTS NOT AVAILABLE
  • 56
    SCREW BEARING BRACKET TO FRONT AXLE M 20X1.5X130
  • 59
    WASHER AIR SPRING BELLOWS AT BEARING BRACKET
  • 62
    NUT STEERING STOP
  • 62
    NUT SHOCK ABSORBER TO BRACKET, Replaced By: N000000005901
  • 95
    SCREW BEARING BUSHING TO AXLE HOUSING
  • 101
    NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
  • 104
    AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION
  • 104
    AIR SPRING BELLOWS REAR-AXLE/TRAILING-AXLE PNEUMATIC SUSPENSION
  • 122
    NUT AIR SPRING BELLOWS AT BEARING BRACKET
