Поз.
Артикул
Описание
1

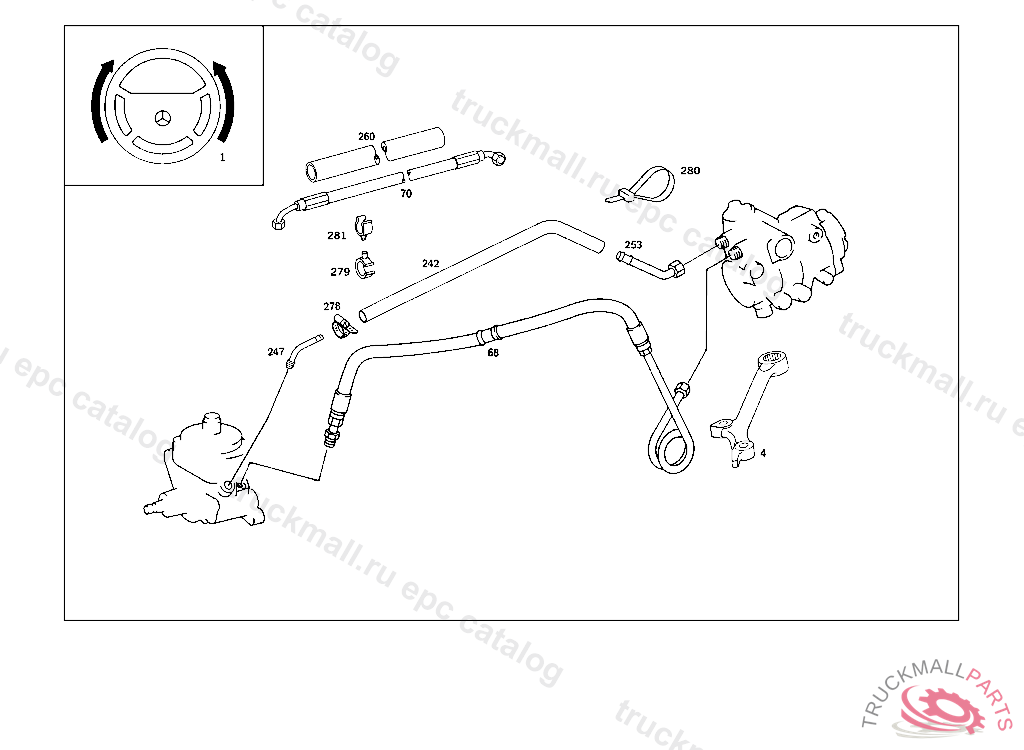

STEERING BOX ASSEMBLY (INSTALLATION KIT),CHASSIS PARTS FOR SUBSEQUENT INSTALLATION
1
STEERING BOX ASSEMBLY (INSTALLATION KIT),CHASSIS PARTS FOR SUBSEQUENT INSTALLATION, THE FOLLOWING PARTS ARE NOT INCLUDED IN RANGE OF DELIVERY: VACUUM-PUMP-TO-BRAKE-BOOSTER VACUUM LINE
1
STEERING BOX ASSEMBLY (INSTALLATION KIT),CHASSIS PARTS FOR SUBSEQUENT INSTALLATION
4
PITMAN ARM , 123.000,023 10/50,12/52 056282 20/60,22/62 057847 123.020 10/50,12/52 044438 20/60,22/62 045005 123.026 10/50,12/52 026978 20/60,22/62 027741 123.102,123 10/50,12/52 029861 20/60,22/62 041001 123.120 10/50,12/52 061873 20/60,22/62 063375 123.126 10/50,12/52 025245 20/60,22/62 025754
4
PITMAN ARM , 123.000,023 10/50,12/52 056283 20/60,22/62 057848 123.020 10/50,12/52 044439 20/60,22/62 045006 123.026 10/50,12/52 026979 20/60,22/62 027742 123.102,123 10/50,12/52 029862 20/60,22/62 041002 123.120 10/50,12/52 061874 20/60,22/62 063376 123.126 10/50,12/52 025246 20/60,22/62 025755 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 123.000 134745 020 10/50,12/52 109395 20/60,22/62 107458 123.023 10/50,12/52 134387 20/60,22/62 131555 123.026 10/50,12/52 068444 20/60,22/62 067035 123.102 121732 123.120 10/50,12/52 153745 20/60,22/62 150822 123.123 10/50,12/52 118819 20/60,22/62 115241 123.083 10/50,12/52 002722 20/60,22/62 002726 123.183 10/50,12/52 004656 20/60,22/62 004671, Replaced By: A1234635501
4
PITMAN ARM , 123.000,023 10/50,12/52 056283 20/60,22/62 057848 123.020 10/50,12/52 044439 20/60,22/62 045006 123.026 10/50,12/52 026979 20/60,22/62 027742 123.102,123 10/50,12/52 029862 20/60,22/62 041002 123.120 10/50,12/52 061874 20/60,22/62 063376 123.126 10/50,12/52 025246 20/60,22/62 025755 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 123.000 134745 020 10/50,12/52 109395 20/60,22/62 107458 123.023 10/50,12/52 134387 20/60,22/62 131555 123.026 10/50,12/52 068444 20/60,22/62 067035 123.102 121732 123.120 10/50,12/52 153745 20/60,22/62 150822 123.123 10/50,12/52 118819 20/60,22/62 115241 123.083 10/50,12/52 002722 20/60,22/62 002726 123.183 10/50,12/52 004656 20/60,22/62 004671, Replaced By: A1234635601
4
PITMAN ARM
4
PITMAN ARM
4
PITMAN ARM , 123.000,023 10/50,12/52 056282 20/60,22/62 057847 123.020 10/50,12/52 044438 20/60,22/62 045005 123.026 10/50,12/52 026978 20/60,22/62 027741 123.102,123 10/50,12/52 029861 20/60,22/62 041001 123.120 10/50,12/52 061873 20/60,22/62 063375 123.126 10/50,12/52 025245 20/60,22/62 025754
68
HOSE FROM PUMP TO STEERING
68
HOSE FROM PUMP TO STEERING
68
HOSE FROM PUMP TO STEERING
70
HOSE FROM PUMP TO STEERING
70
HOSE , Replaced By: A1239970652
242
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
247
LINE FROM STEERING TO PUMP
253
LINE , Replaced By: A1234602624
253
LINE FROM STEERING TO PUMP, 123 219675 ALSO INSTALLED ON 219267,219275,219283,219285,219287,219293,219296,219301,219302,219304,219307,219309,219313,219317, 219319-219321,219325,219326,219328-219331,219333,219335,219336,219338,219339,219341,219342,219346, 219347,219350,219351,219354,219357-219361,219363-219380,219384,219385,219387-219389,219391-219395, 219397,219399,219400,219402-219409,219411-219415,219417-219422,219424-219426,219428-219435,219437, 219439-219447,219449-219453,219459-219471,219473-219483,219485-219499,219502-219516,219520-219599, 219601-219673, EXCEPT FOR 219935,219936,220064,220096,220232,
253
LINE FROM STEERING TO PUMP
260
HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1269972982
260
HOSE (PROTECTIVE HOSE) 350 MM, ORDER BY THE METER
278
CLAMP , Replaced By: A0059970190
278
HOSE CLAMP LINE MOUNTING
279
CLAMP ELECTRIC CABLE TO BRAKE HOSE
279
CLAMP HOSE TO HOSE 20 MM
280
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
280
LOOM TIE , Replaced By: A0019974190
281
CLAMP , Replaced By: A0005465143
999
CLAMP FORKED SUPPORT,TOP
999
LINE , Replaced By: A1074604224
999
LINE FROM STEERING TO PUMP
999
LINE
999
HOSE FROM PUMP TO STEERING, 123.000,023 054174 123.020 042385 123.026 025464 123.102,123 037610 123.120 059166 123.126 024302
999
LOOM TIE , Replaced By: A1169970890
999
LINE FROM PUMP TO STEERING, 123.000,023 054175 123.020 042386 123.026 025465 123.102,123 037611 123.120 059167 123.126 024303
999
PITMAN ARM , NO LONGER AVAILABLE
